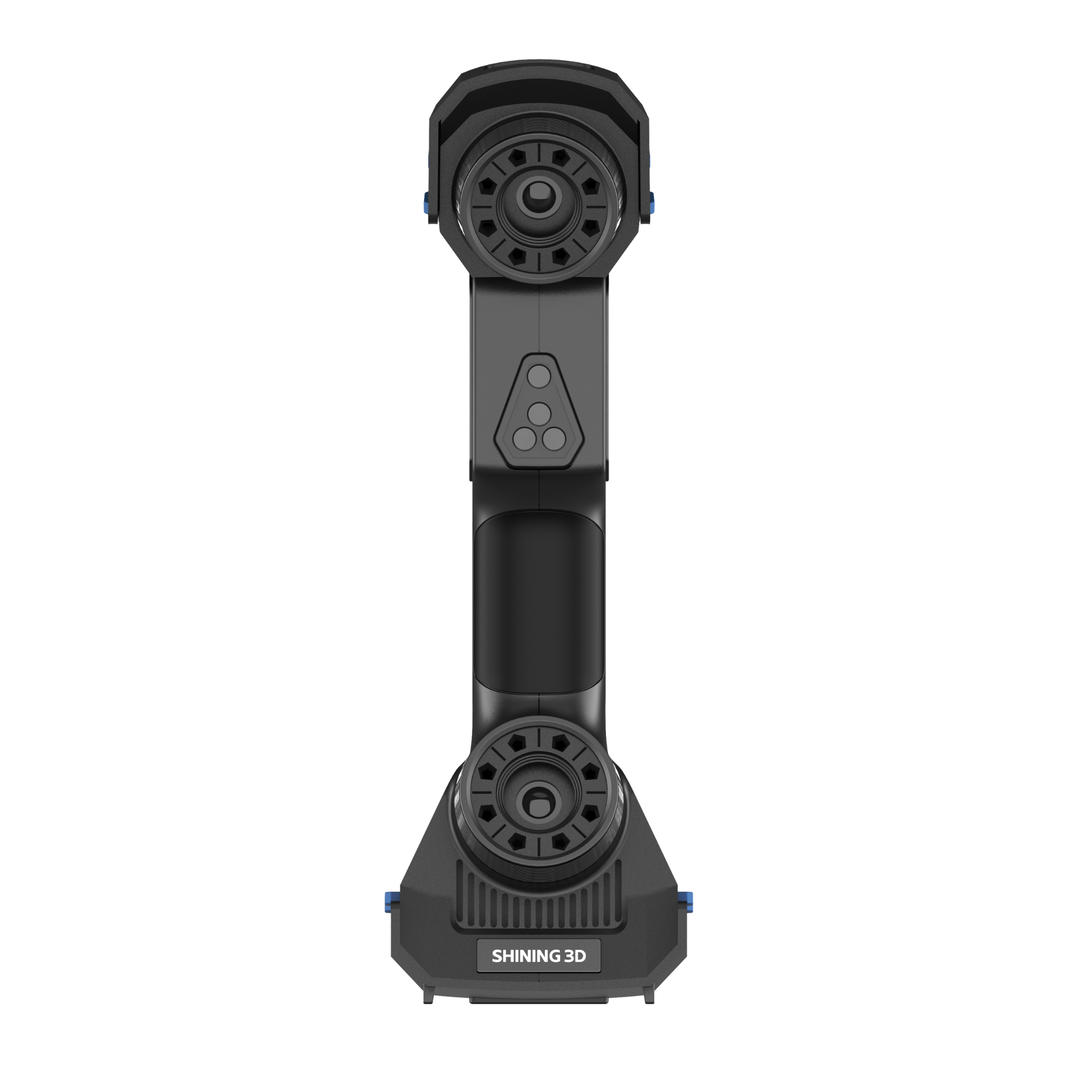

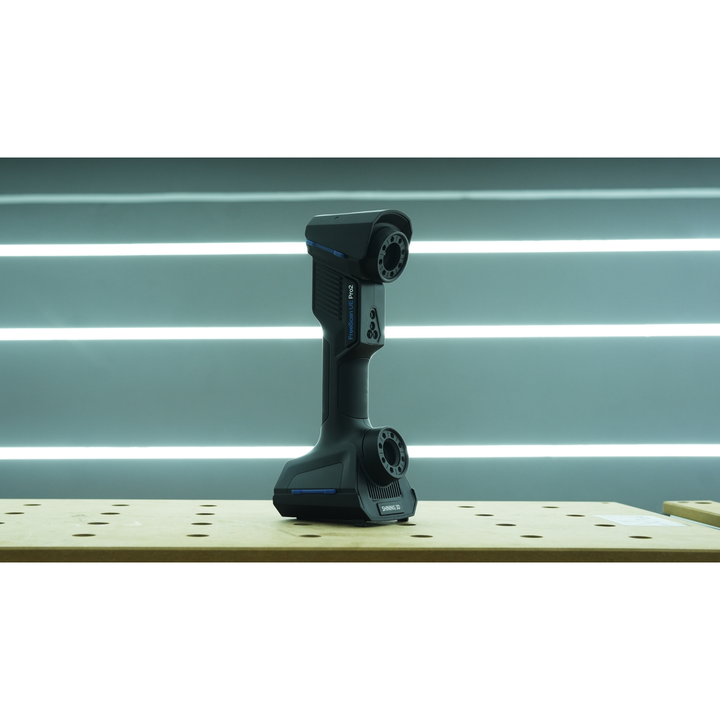

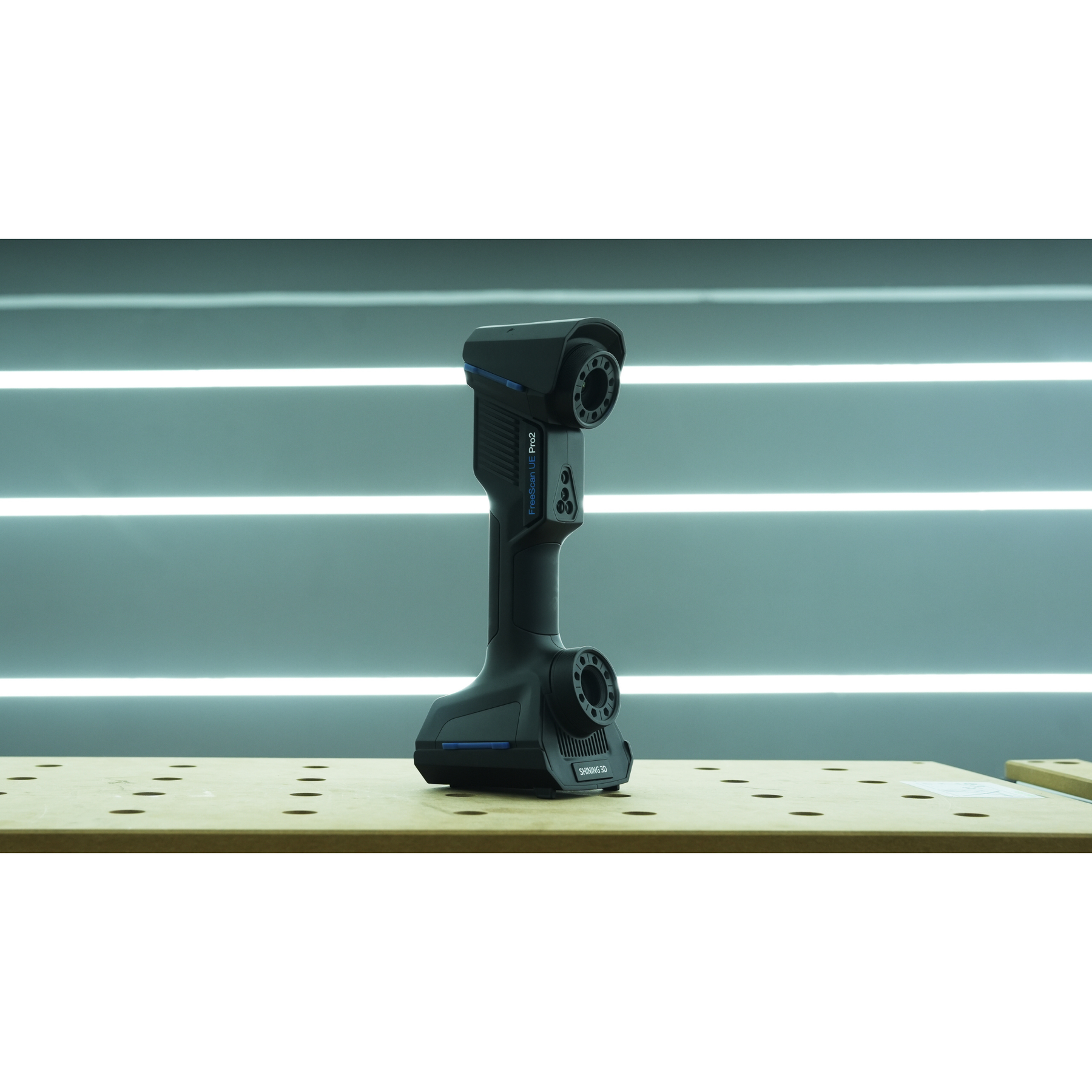

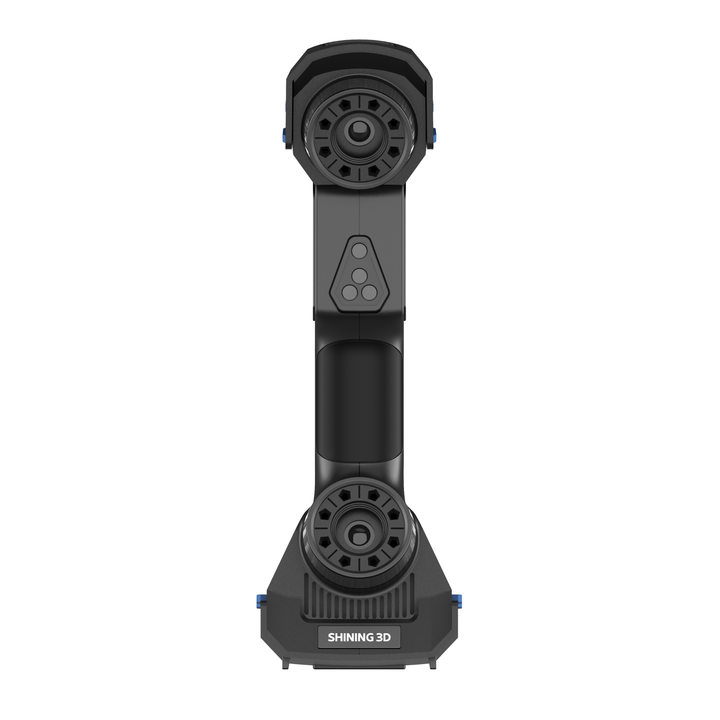

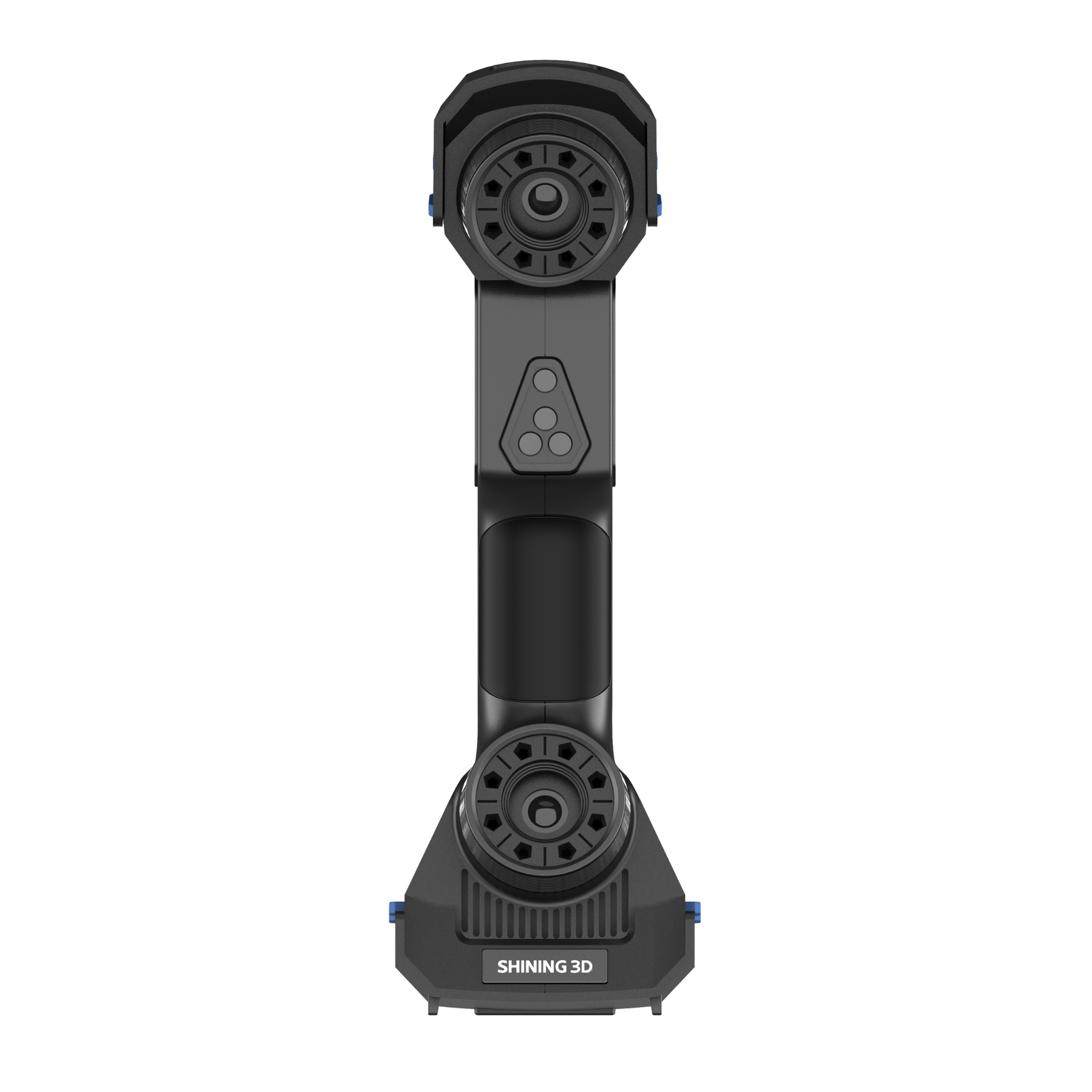

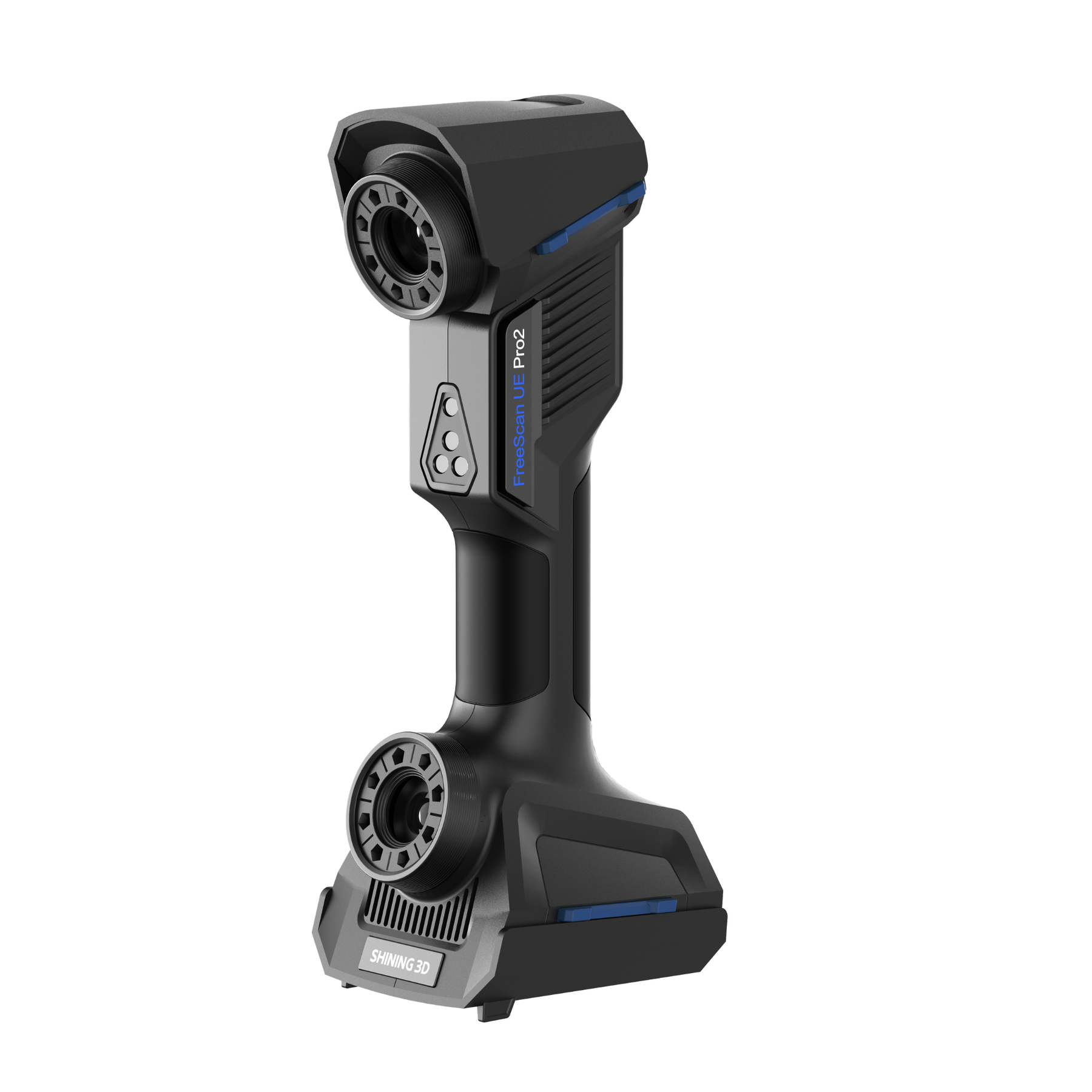

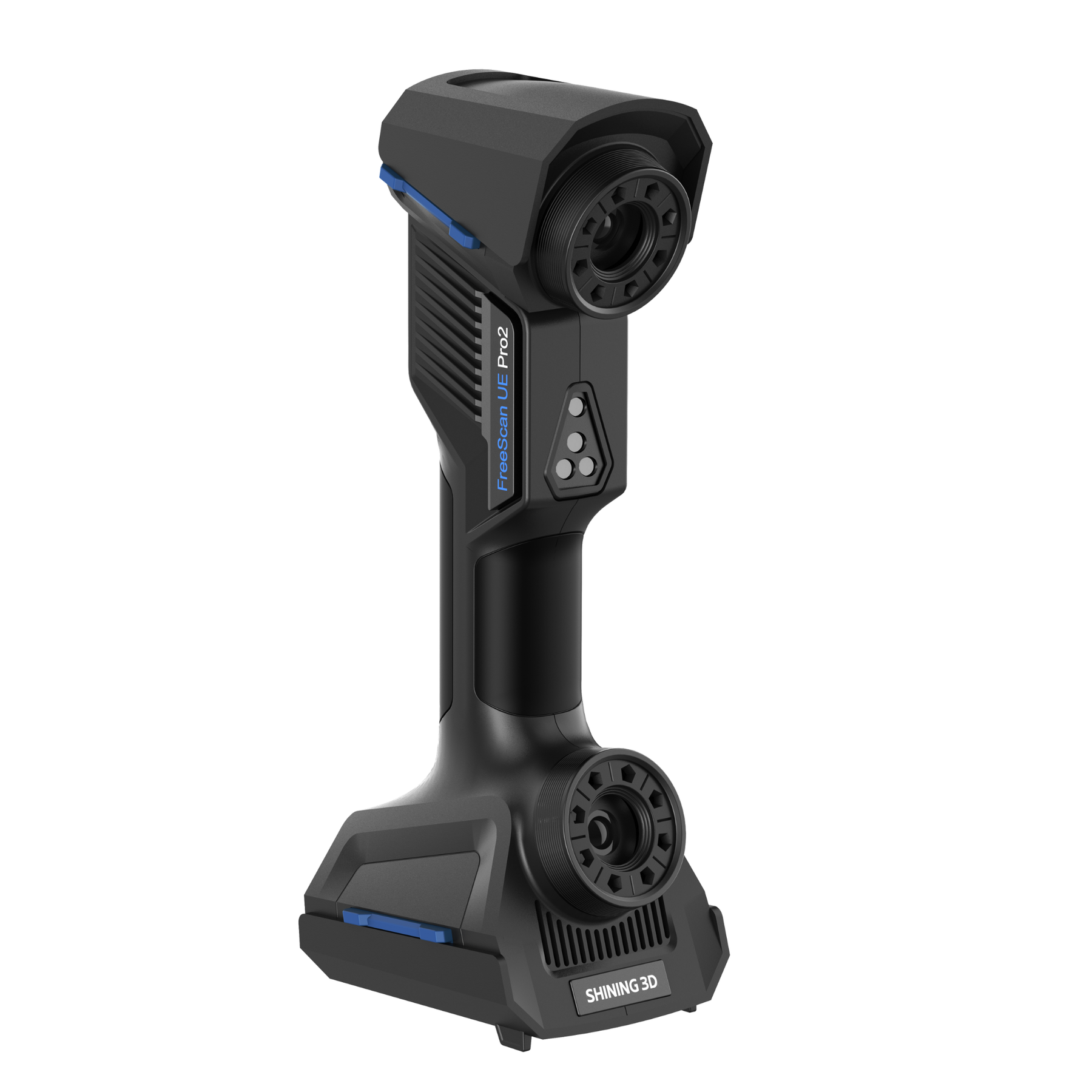

FreeScan UE Pro2 Metrology Grade Wireless Laser 3D Scanner
The FreeScan UE Pro2 is a metrology grade wireless laser 3D scanner built for fast, accurate portable inspection in the field or on the production floor.
Designed for professionals who need reliable measurement performance without being tied to a cable, the UE Pro2 combines wireless portability, ultra-fast scanning up to 3,460,000 points per second, and SHINING 3D’s Video Photogrammetry technology to improve accuracy on large-scale parts.
Its integrated inspection workflow also makes it well suited for quick on-site quality checks, reverse engineering, and industrial measurement applications where speed and precision both matter.

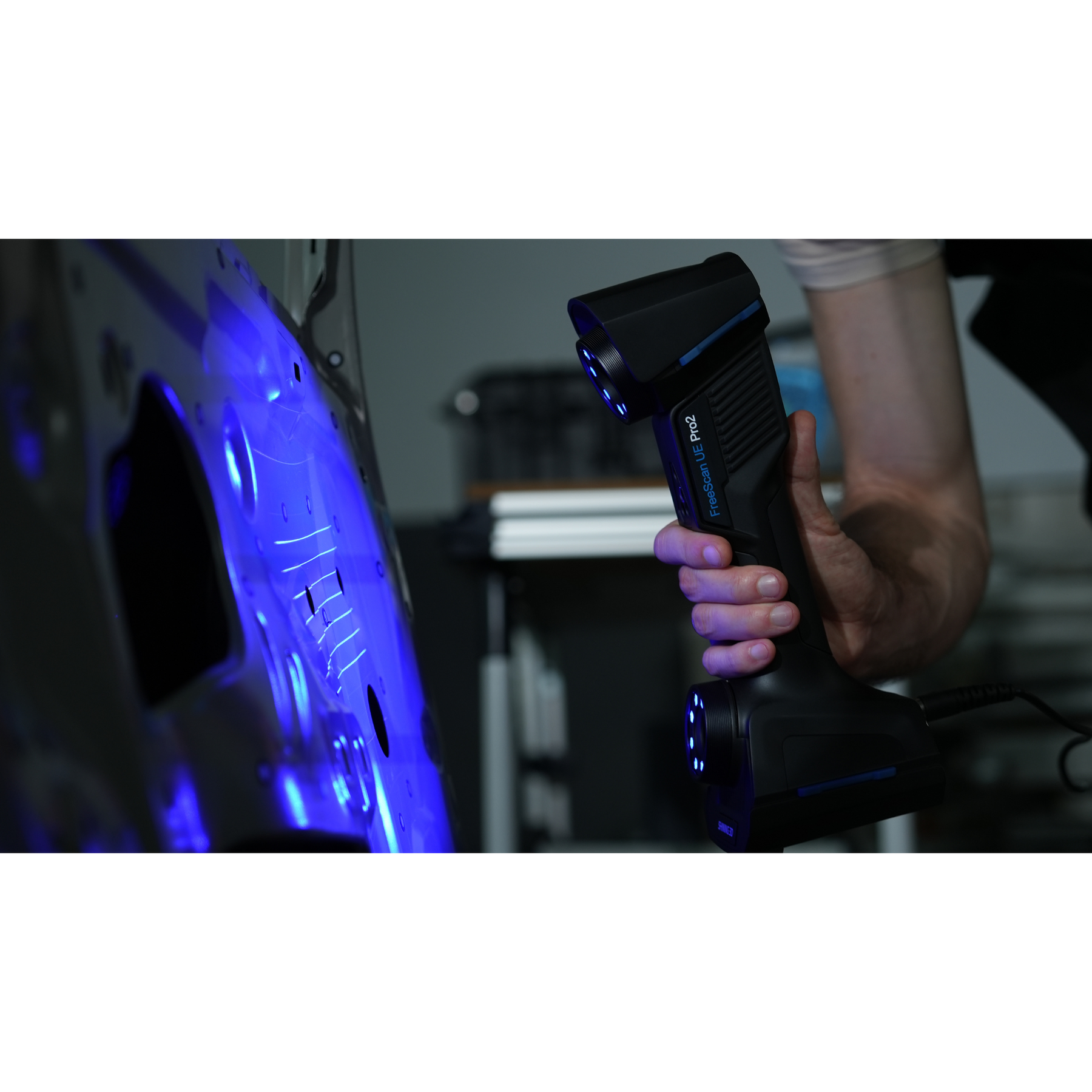

Ultra-Fast Scanning for High-Throughput Inspection
Scan faster without sacrificing accuracy. The FreeScan UE Pro2 delivers up to 3,460,000 points per second, making it ideal for high-efficiency inspection and production workflows.
• 50 laser lines for rapid, full-coverage scanning
• Up to 180 FPS for smooth, stable data capture
• Embedded processing reduces PC workload and speeds up workflows

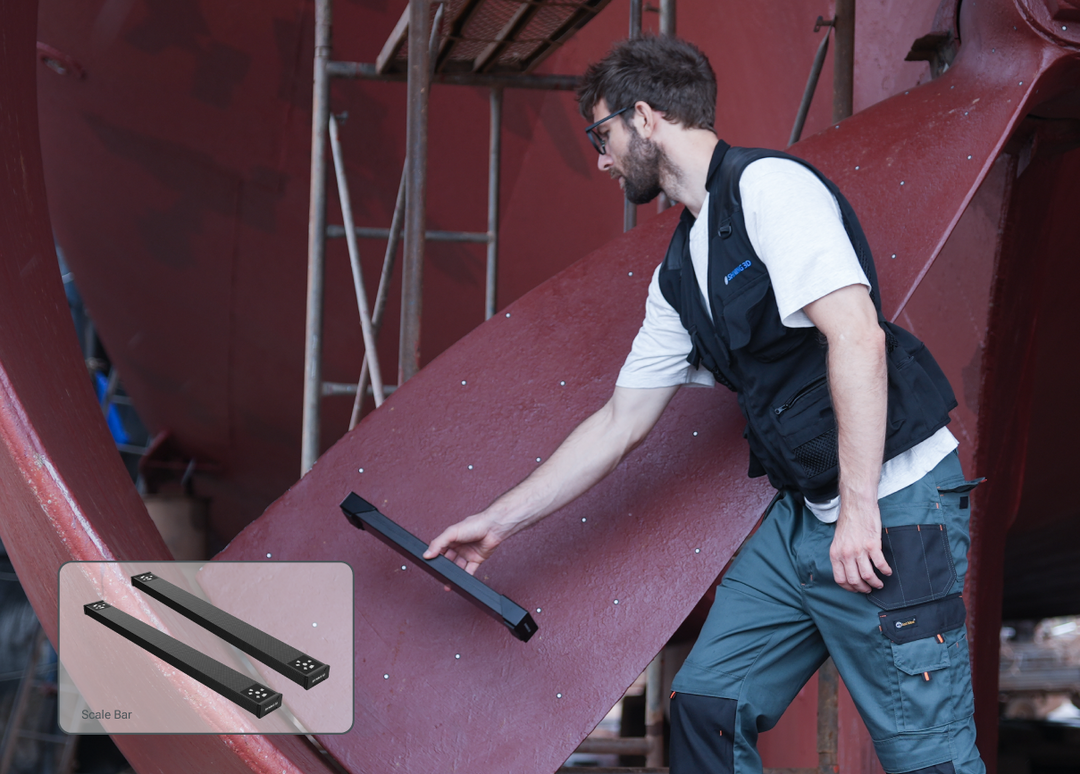

For Large-Scale Accuracy
Video Photogrammetry (VPG)
Maintain accuracy across large objects without complex setup. SHINING 3D’s Video Photogrammetry (VPG) reduces reliance on coded markers while improving volumetric precision.
• Improves accuracy on large parts and long scan distances
• Reduces or eliminates the need for coded markers
• Faster setup for efficient large-object scanning
Certified Accuracy You Can Trust
Metrology-Grade Verified Results
Achieve consistent, reliable measurement results with volumetric accuracy up to 0.02 mm + 0.015 mm/m using photogrammetry. The FreeScan UE Pro2 is built for applications where precision and repeatability are critical.
• Verified accuracy based on VDI/VDE 2634 and ISO 10360 standards
• Ensures traceable, repeatable measurement results
• Calibrated through ISO 17025-accredited metrology processes

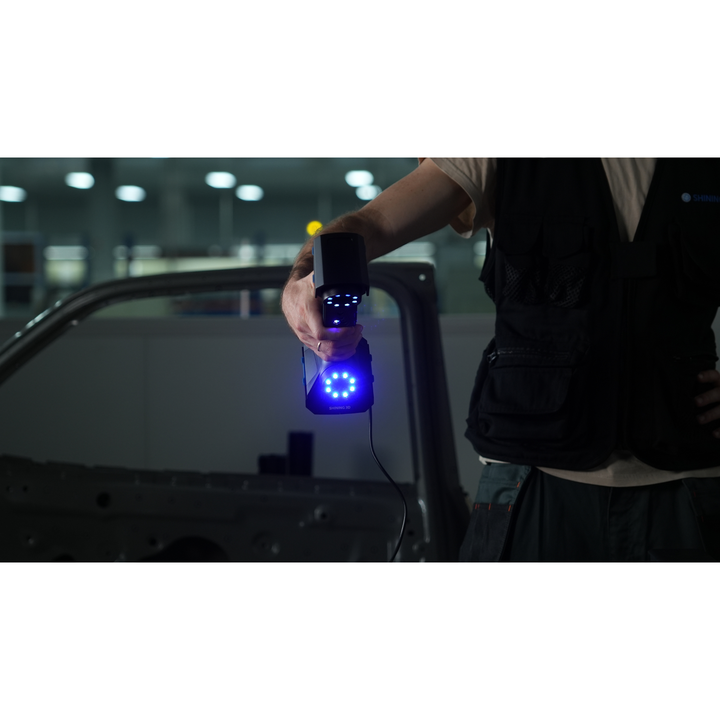

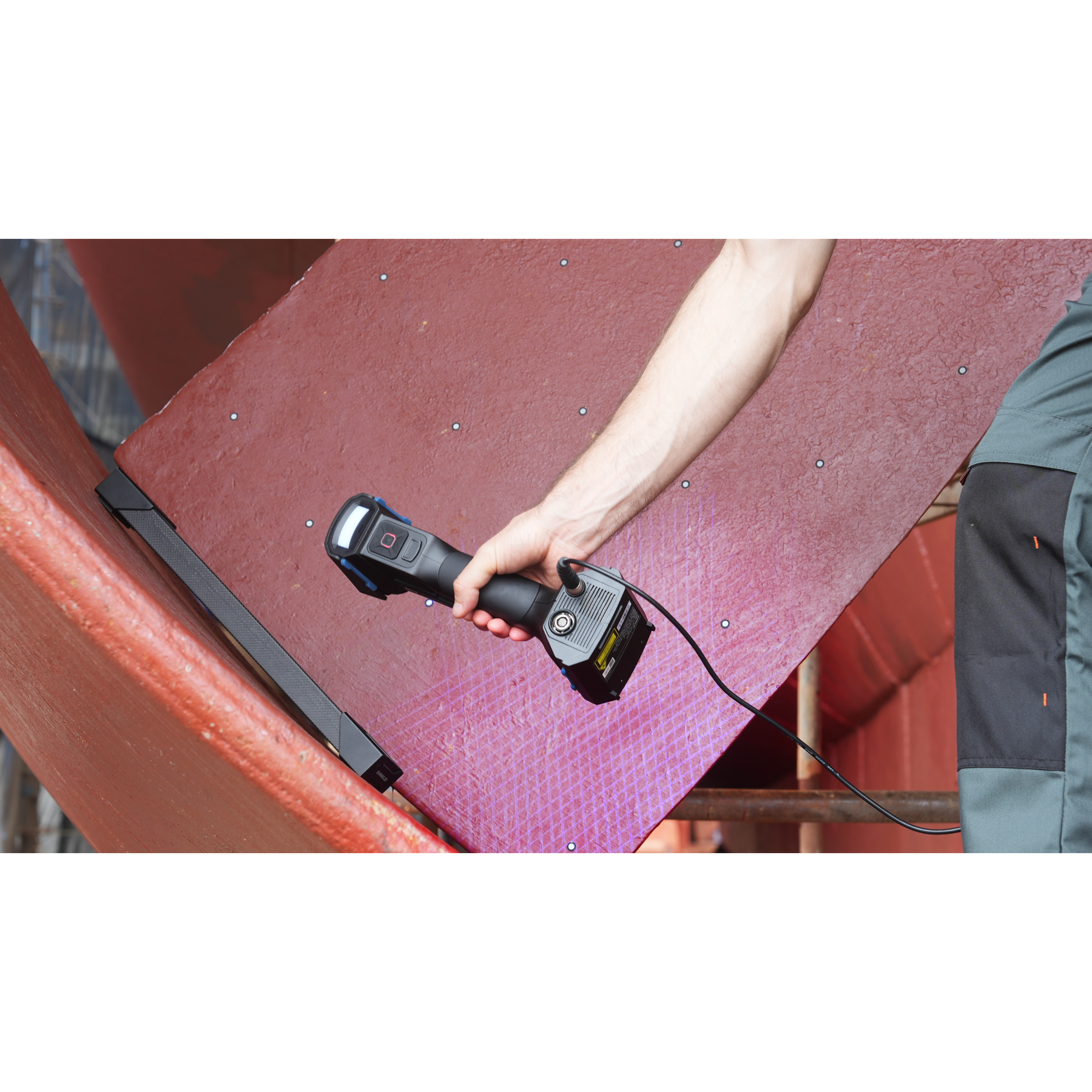

Built for Real-World Environments
Scan Indoors and Outdoors

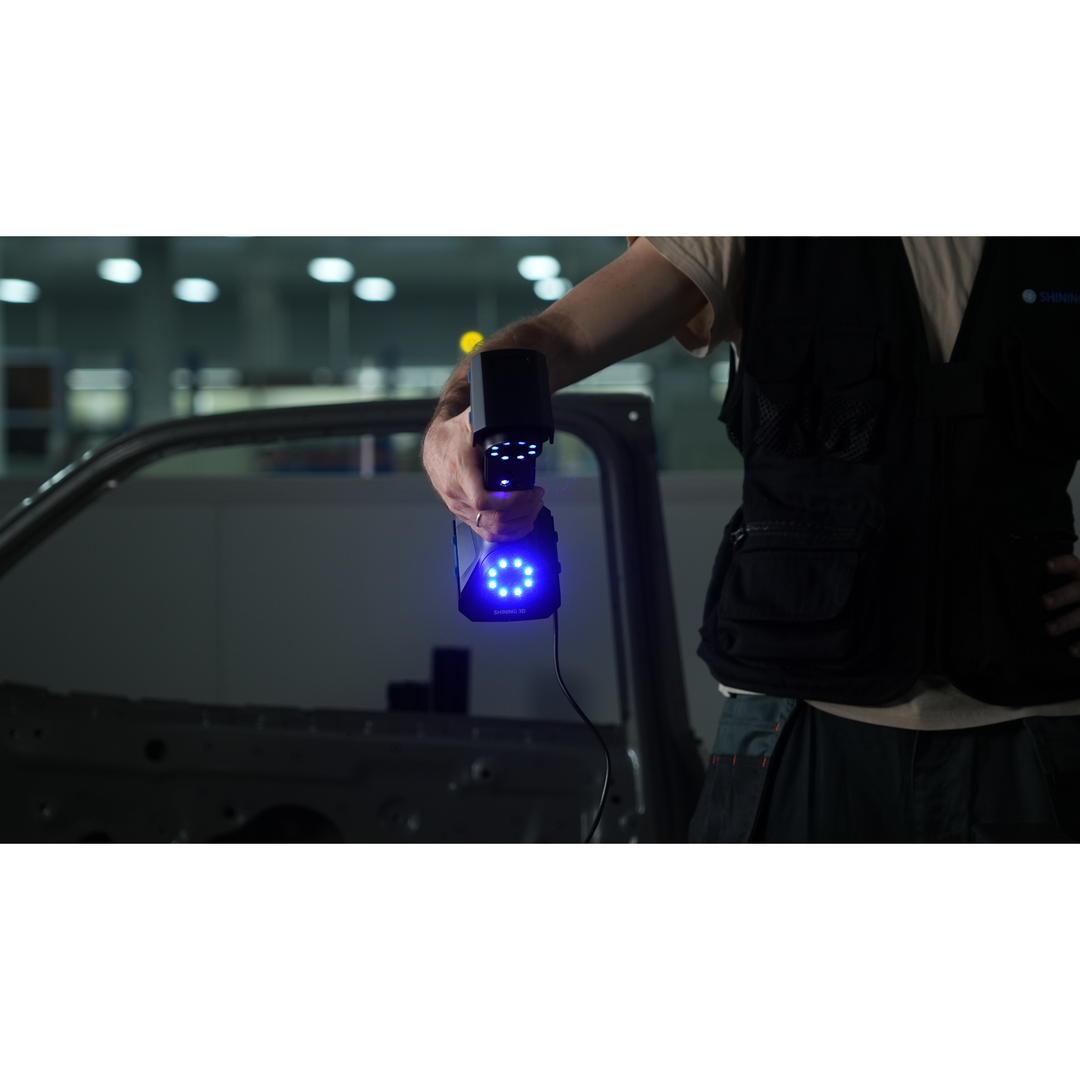

Capture reliable data in a wide range of environments, from controlled indoor settings to challenging outdoor conditions. The FreeScan UE Pro2 is designed to maintain stable performance across different lighting and working conditions.
• Reliable scanning performance indoors and outdoors
• Handles varying lighting conditions and environments
• Ideal for fieldwork, large structures, and on-site inspection
Adapt to Any Scanning Scenario
Multiple Scanning Modes
Switch between optimized scanning modes to handle everything from large surfaces to fine details and hard-to-reach features.
• High-speed mode: 50 laser lines for fast, full-coverage scanning
• Detail mode: 7 parallel laser lines for higher-resolution data capture
• Deep hole mode: single laser line for recessed and hard-to-reach areas

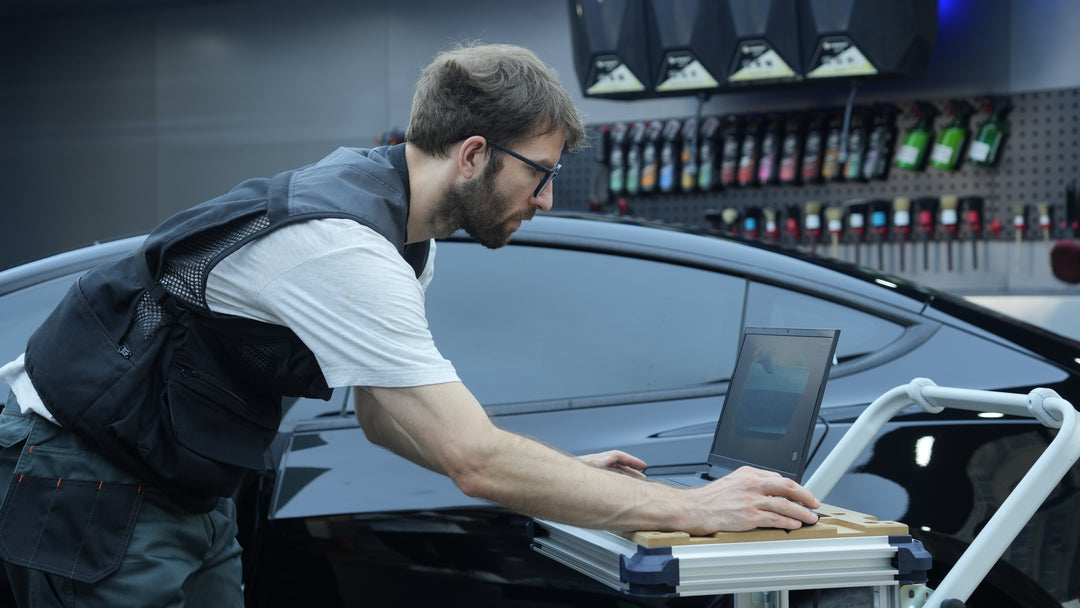

Intuitive and Powerful Software
FreeScan Software
Capture, process, and optimize scan data with software designed for efficient, high-accuracy workflows.
• AI feature recognition for automatic detection of holes and features
• Real-time mesh display during scanning to reduce post-processing time
• Custom scanning templates for consistent, repeatable setups
• Real-time data quality visualization for improved scan control
3D Model Gallery
Frequently Asked Questions
The wireless mode of FreeScan UE Pro2 does require a router and cannot be directly connected to a computer via wireless connection.
Yes. The scanner provides inspection reports and calibration certificates traceable to international standards such as VDI/VDE 2634 and ISO 10360 (subject to the actual certificates issued). All calibration and verification procedures are performed in SHINING 3D’s accredited Accuracy Lab, which operates in accordance with ISO/IEC 17025 requirements.
SHINING 3D scanners are calibrated using certified artifacts or calibration panels traceable to metrology standards. Regular calibration ensures measurement traceability, maintains accuracy, and aligns the scanner with quality management requirements.
No. Wireless connectivity handles only data transmission and does not affect the accuracy.
We or our authorized resellers will provide you with suitable power banks and routers for FreeScan UE Pro2. However, if you insist on configuring them on your own, we recommend using a USB-C PD 100W power bank and a Wi-Fi 6 router.
This 3D scanner is compatible with most mainstream software. For reverse engineering, it works with EXModel and Geomagic Design X. For inspection, it supports Geomagic Control X, PolyWorks Inspector, and SHINING3D Inspect, enabling smooth workflows for CAD modeling and quality control.
A wireless scanner provides freedom of movement and easier deployment without cables, improving flexibility in large or complex scanning environments. A wired scanner ensures continuous power and stable data transmission, which can be advantageous for long scanning sessions or extremely high-precision measurements.
