Part Number: 40611
No reviews
Regular price$2,890.00
/

  • In stock, ready to ship
  • Inventory on the way
Specification Detail
Number of Axes 4
Payload 500g (Max 750g)

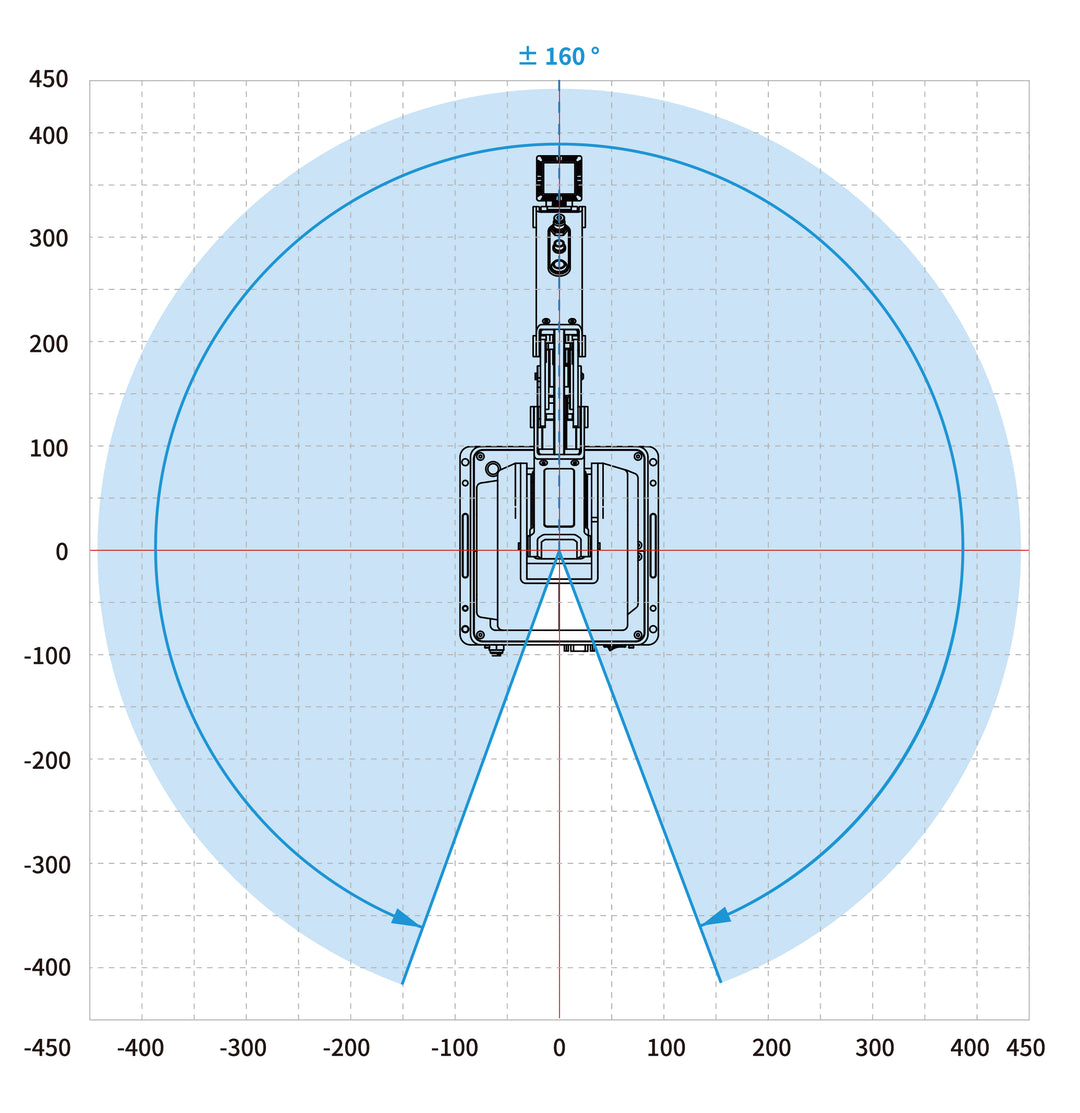

Reach 440mm
Repeatability ±0.05mm
Joint Ranges J1: ±160°, J2: -25° ~ 85°, J3: -25° ~ 105°, J4: -180° ~ 180°
Joint Maximum Speed J1: 300 °/s, J2: 300 °/s, J3: 300 °/s, J4: 300 °/s
Power 100~240V AC, 50/60Hz
Rated Voltage 48V
Rated Power 240W
Communication Interface TCP/IP, Modbus TCP
Installation Desktop
Weight 8kg
Base Size 190mm × 190mm
Working Environment 0 ℃ ~ 40 ℃
Software DobotStudio 2020, SCStudio

Revolutionary Compact Design

The Dobot MG400 is a testament to innovation and compact design in the world of robotics. With a footprint that's smaller than a piece of A4 paper, this desktop robotic arm is a space-saver without compromising on functionality. It is an embodiment of the phrase "small but mighty," perfect for laboratories, small workshops, and educational environments where space is at a premium but the automation needs are high.

Precision and Performance


At the heart of the MG400's performance lies its high-precision servo motors and
advanced servo drive technology, which enable it to execute tasks with an impressive repeatability of ±0.05mm. This precision ensures tasks are completed with consistency and accuracy, making it an invaluable asset for applications ranging from intricate assembly to precise handling and positioning.

Ease of Use and Programming Flexibility

Ease of use is paramount with the MG400. It caters to users of all levels with its intuitive programming options that range from simple drag-and-teach to more sophisticated Lua scripting. Whether you're taking your first steps into robotics or are a seasoned developer, the MG400 adapts to your skill level, allowing you to harness its full potential with minimal learning curve.

Adaptable and Collaborative

The MG400 is not just adaptable in terms of space and programming; it's also designed to work collaboratively with human operators. It features advanced safety systems, including collision detection, ensuring a safe working environment. This makes the MG400 a reliable partner in tasks that require a human-robot collaboration, opening up new possibilities in the automation landscape.

Fast Deployment for Various Applications

Time is of the essence in any business, and the MG400 understands this. Its design allows for rapid deployment, enabling you to go from unboxing to operational in no time. This swift setup, combined with its adaptability, makes the MG400 an excellent choice for small-batch production, educational purposes, and any scenario that requires quick changeovers and flexibility.

Open Ecosystem for Enhanced Compatibility

In the spirit of flexibility and future-proofing, the MG400 operates within an open ecosystem. It is compatible with a multitude of other technologies, thanks to its support for TCP/IP and MODBUS TCP communication protocols. This compatibility ensures that the MG400 can be integrated into a variety of automation solutions, expanding its utility across different industries and applications.
