Part Number: 42263
$28,999.00
/
Wireless and Standalone
Complete on-device scan-to-mesh
Marker-free laser scans with texture
Powerful embedded computing by NVIDIA
Warranty: 1-Year, Parts & Labor
EinScan Libre Technical Specifications
Scan Mode/Light Source IR Rapid: IR VCSEL IR Adaptive: 38 IR laser lines Laser HD: 101 blue laser lines
Resolution (Point Distance) 0.5 ~ 10 mm 0.5 ~ 10 mm 0.5 ~ 3.0 mm
Scan Speed 2,700,000 points/s 1,900,000 points/s 4,500,000 points/s
Field of View (FOV) 370x470 - 983x979 mm 370x470 - 779x835 mm 165x200 - 382x450 mm
Working Distance 500 ~ 1500 mm 500 ~ 1200 mm 200 ~ 500 mm
Align Mode Markers / Global Markers / Feature / Texture / Hybrid Markers / Global Markers Markers / Global Markers / Feature / Texture / Hybrid
3D Camera Resolution 5 MP
Color Camera Resolution 48 MP
Volumetric Accuracy Up to 0.04 +0.06 mm/m
Output Formats STL; OBJ; PLY; 3MF; ASC; LAS
Software Device installed scanning software
PC software: EXScan Libre
Laser Class Class II (eye safe)
Hardware Processor: NVIDIA Jetson Orin NX, 8-core Arm Cortex A78AE, Ampere GPU with 1024 CUDA cores, 100 TOPS
Internal hard drive: 1 TB SSD
Display: Built-in 5.5" HD OLED touch screen
Interface: Wi-Fi 6, USB-C, USB 3.0, Gigabit Ethernet
Power Source: 2 rechargeable batteries with 3-hour scanning time
Supports charging via USB-C power banks or 100W PD3.0 fast charge adapters
Scanner weight: 1.8 kg (including battery), 1.6 kg (without battery)
Scanner size: 162 x182 x 266 mm
Recommended Configuration for PC Program CPU: intel i7-11700 or higher; GPU: NVIDIA GTX 1070 or higher;
VRAM: 6GB or more; RAM: 32 GB or more; OS: Windows 10 or 11 (64-bit)




EinScan LIbre Brochure

[EinScan Libre] Sculpture by SHINING 3D on Sketchfab


【EinScan Libre】Shiny Artifact by SHINING 3D on Sketchfab


[EinScan Libre] Porcelain Painting by SHINING 3D on Sketchfab


【EinScan Libre】Tube by SHINING 3D on Sketchfab


Blue Relief by SHINING 3D on Sketchfab


【EinScan Libre】Car body by SHINING 3D on Sketchfab

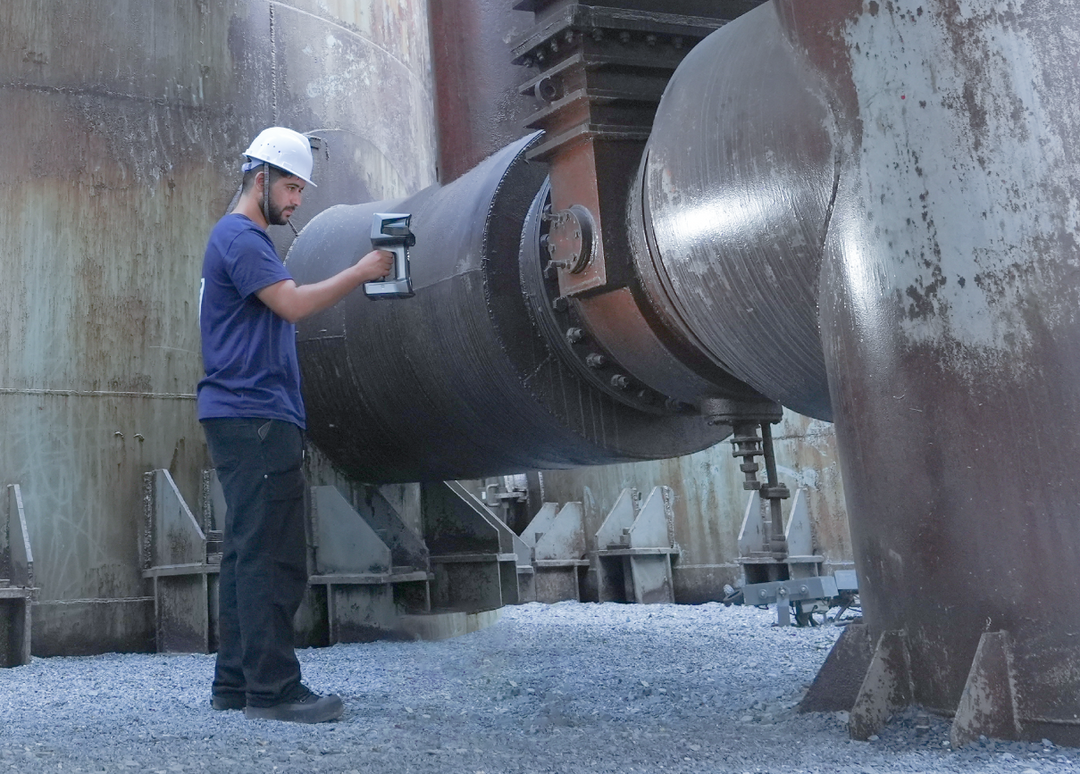

Cut the cord, go wireless

  • 5.5-inch OLED display Capture, view, and manage your scans effortlessly with its user-friendly touchscreen UI
  • Embedded computing system Scan and process independently, wiht all functions built into the device - no laptop required
  • Rechargeable batteries No time for downtime? Just reload and keep scanning. Slide your batteries into the convenient charging dock and be ready to scan at all times

Brains behind the speed

Equipped with a high-performance processor and generous storage, the EinScan Libre provides wireless freedom without compromising computing speed.

  • Powerful NVIDIA processor: The integrated Jetson Orin NX 16GB, 8-core CPU and Ampere GPU with 1024 CUDA cores deliver fast data processing.
  • 1 TB SSD: Room to roam. With expansive storage, you can scan freely without worrying about running out of space --whether high-res models of hefty projects.

All modes on deck

Switch between the EinScan Libre's three versatile scan modes to cover object sizes ranging from 0.1m to over 10m. These IR (infrared) and laser modes help the scanner adapt to all kinds of materials, whether you're indoors or outdoors in direct sunlight.

Laser HD Mode

Revolutionary 101 laser lines enable maker-free, high-detailed scanning with rich texture.

  • Resolution up to 0.05 mm
  • 101 blue laser lines
  • Supports texture alignment

IR Rapid Mode

Ideal for larger areas, this mode offers marker-free and high-efficiency scanning with invisible, eye-safe infrared light. It’s less sensitive to ambient light, making it perfect for outdoor use.

  • Working distance up to 1.5 meters
  • FOV of 983 x 979 mm

IR Adaptive Mode

Ideal for reflective and black surfaces, delivering reliable results.

  • 38 IR laser lines
  • Volumetric accuracy up to 0.04 +0.06 mm/m

Lifelike Color Reproduction

Experience high-resolution color capture with the EinScan Libre. Equipped with a 48MP color camera, it delivers lifelike color fidelity, capturing every detail with clarity and vibrant colors. The EinScan Libre ensures your scans reflect the full richness of the scene or object you're scanning.

Where Wireless meets accuracy

Experience the perfect blend of freedom and accuracy with the EinScan Libre. This advanced wireless scanner delivers an impressive volumetric accuracy of up to 0.04 + 0.06 mm/m, ensuring that every detail is captured with pinpoint precision. Whether working on intricate designs or complex projects, the EinScan Libre provides the reliability and accuracy you need, all in a truly wireless device.

Complete on-device workflow

Mesh data output

Easily generate mesh data with a single click, completing the entire process directly on the device. Export in STL, OBJ, ASC, and LAS formats, suitable for a wide range of applications.

Quick data editing

Edit scan data directly on the device, simplifying the workflow.

Data quality indicator

Blue areas indicate adequate data; yellow areas indicate that further scanning is required.

Range indicator box

The scanner projects a green rectangle representing the scanning area.

In-project resolution adjustment

Modify resolution without starting a new project. Seamlessly view, adjust, and continue scanning without interruption.

Working distance adjustment

Change the data collection distance range to filter out the background or get maximum data amount.

Light & Dark UI Adaptation

Offering both light and dark themes, ensure optimal visibility and comfort, enhancing your focus and productivity in any environment.

Flexible Hybrid Alignment Modes

Combine feature, texture, and marker alignment modes freely to create hybrid solutions for diverse scanning needs.

Precision Boost with Scale Bar

EinScan Libre's validated scale bar for calibration can also be integrated with photogrammetry technology to verify markers in real time, improving overall accuracy for large object scans.

Enhanced pc integration

  • Multi-resolution fusion: Effortlessly combine scans with different resolutions across various modes for enhanced results.
  • Resource-efficient system: Delivers a smooth performance without the need for high-spec computers.
  • Flexible workflow: Multi-tasking workflows that offer enhanced flexibility, allowing you to go beyond single-threaded operations.
  • Measurement functions: Supports multiple coordinate alignment methods as well as distance, surface area, and volume calculations.

Testimonials

"Our previous scanning solution was not ideal in outdoor lighting situations. But mainly it was because you had to lug around a fairly big laptop, lots of cables, power supply, etc., which proved quite challenging when working on a boat fly bridge. So we use the EinScan Libre to basically go to the site so that we can scan items in a boat. For example, the cleaners on the canopy or the carpet. And that way we can take the data back to our office and we can reverse engineer it."

Alan Heppell
Co-owner @ Custom Marine Solutions

"The multiple scanning modes of EinScan Libre are really good. You can use the laser mode, infrared mode. It has no issue with the shiny black surfaces, which is somthing that often tricks. And the fact that it's tracking without targets as well is really good. It's just been using the texture and geometry to track. That's been a really big help."

Daniel Scott
Technical Engineer @ Solid Print 3D

"I've tried several wireless 3D scanners. EinScan Libre stands out as the lightest, most compact, and most agile by far. I conducted 3D scans at various historical parks and museums. EinScan Libre can perform well both outdoors and indoors."

Pramote Laonipon
LWN 3D

There aren't many handy scanners that can be used outdoors, and I want to use them without a computer. If you use a laptop outdoors, it gets dusty, and even if you put it in a cardboard box, it becomes completely white. And two people have to walk along to carry the computer. The EinScan Libre is intuitive to use with a monitor and can handle wide-area outdoor scanning independently, which is great. And there's no need to buy an overpriced computer."

Professors
Waseda University Institute for Cultural Heritage
