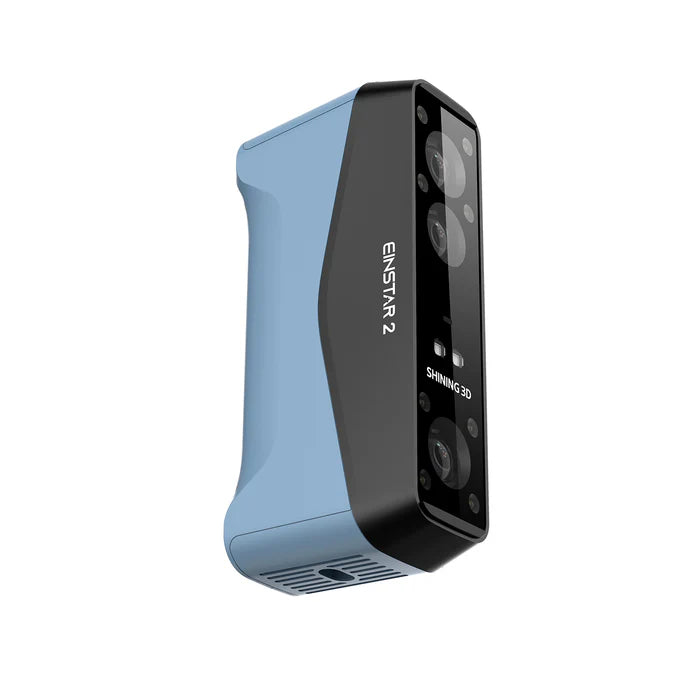

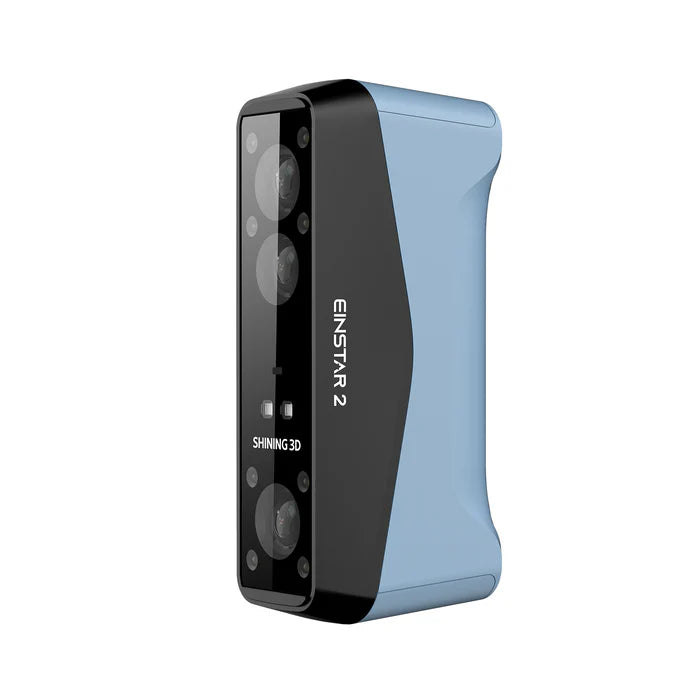

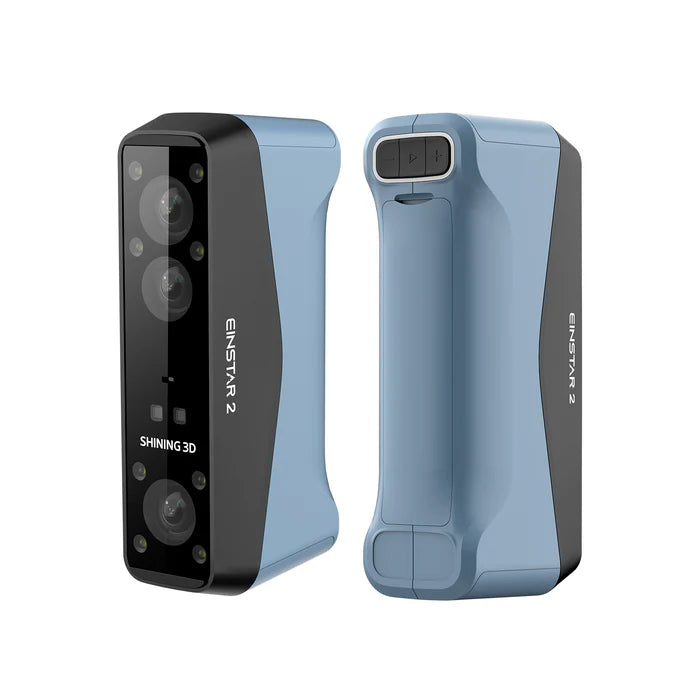

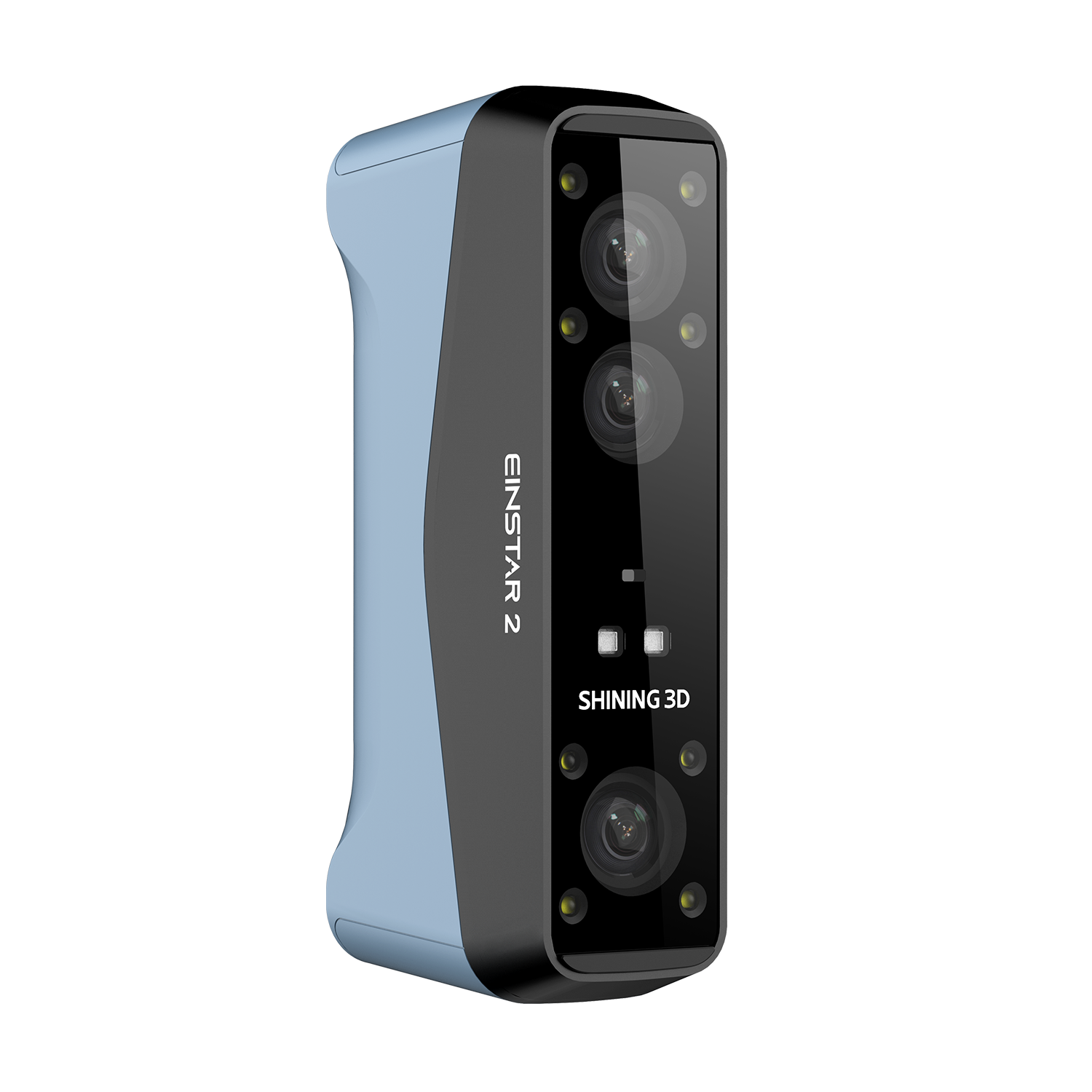

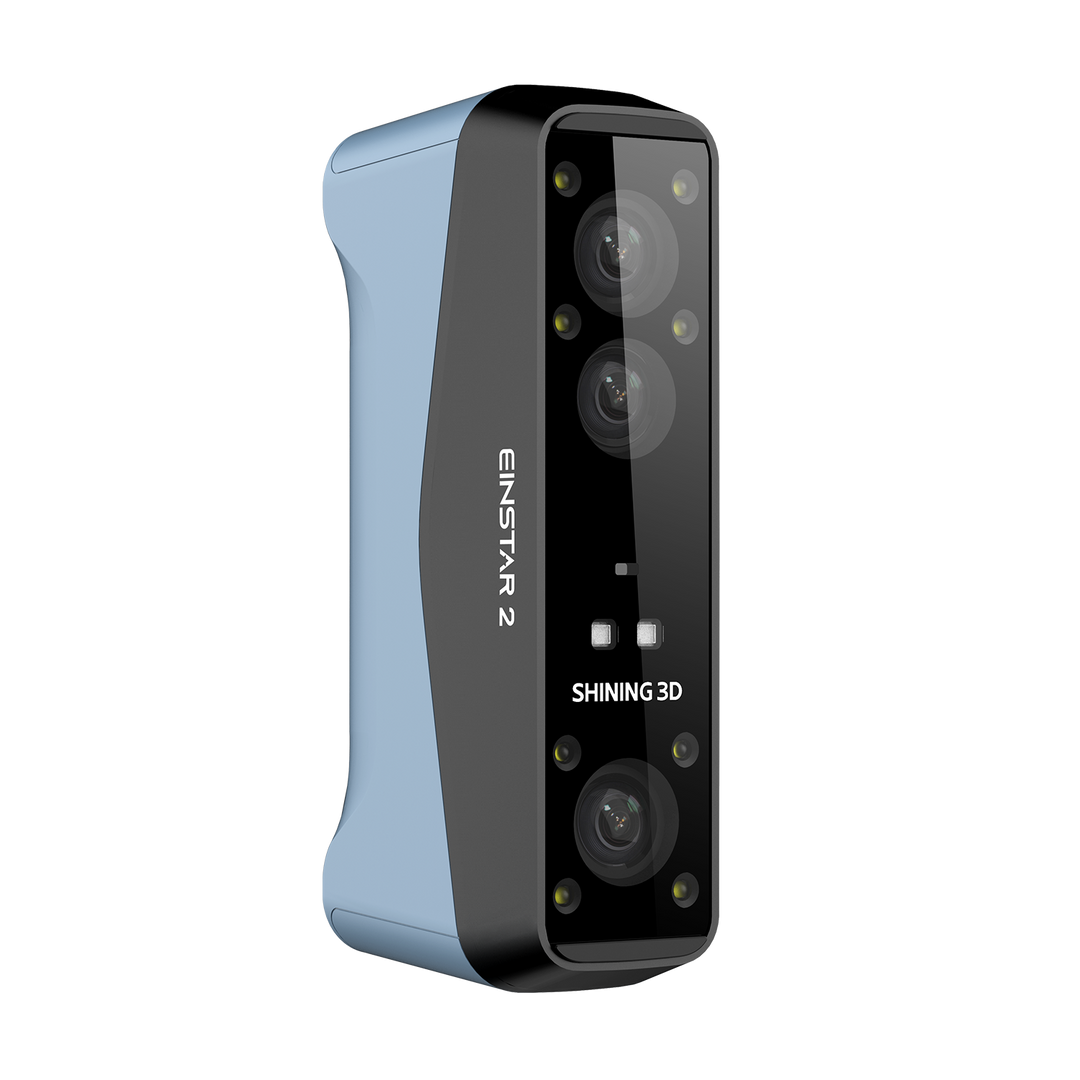

Name: Einstar 2 Handheld 3D Scanner
Brand: Afinia 3D Store
SKU: 43537
Price: 1049.0 USD
Availability: OutOfStock

Part Number: 43537

$1,249.00 $1,049.00 Save $200.00

In stock, ready to ship
Inventory on the way

• Smarter, Lighter, Finer: The upgraded EINSTAR 2 delivers studio-quality 3D scans with a hybrid light source, wireless freedom, and vivid color capture.

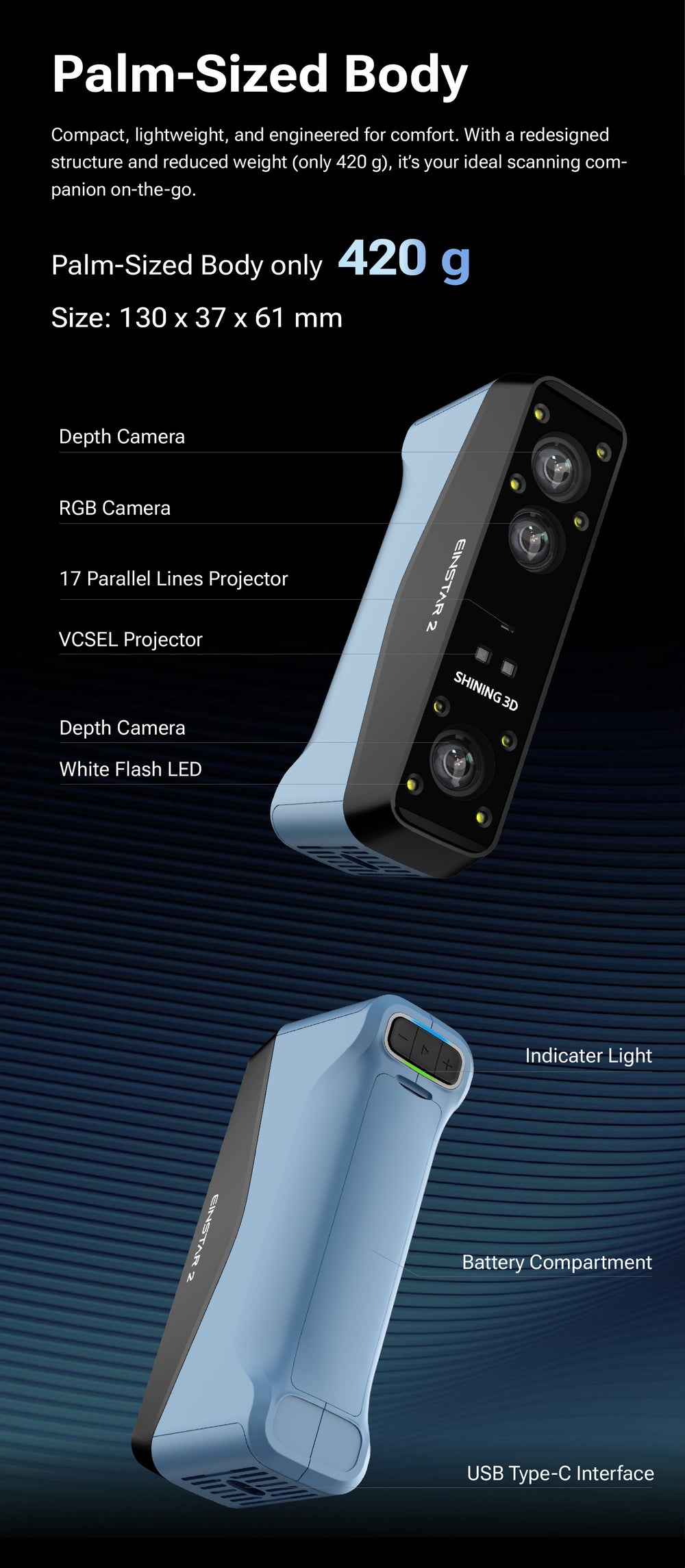

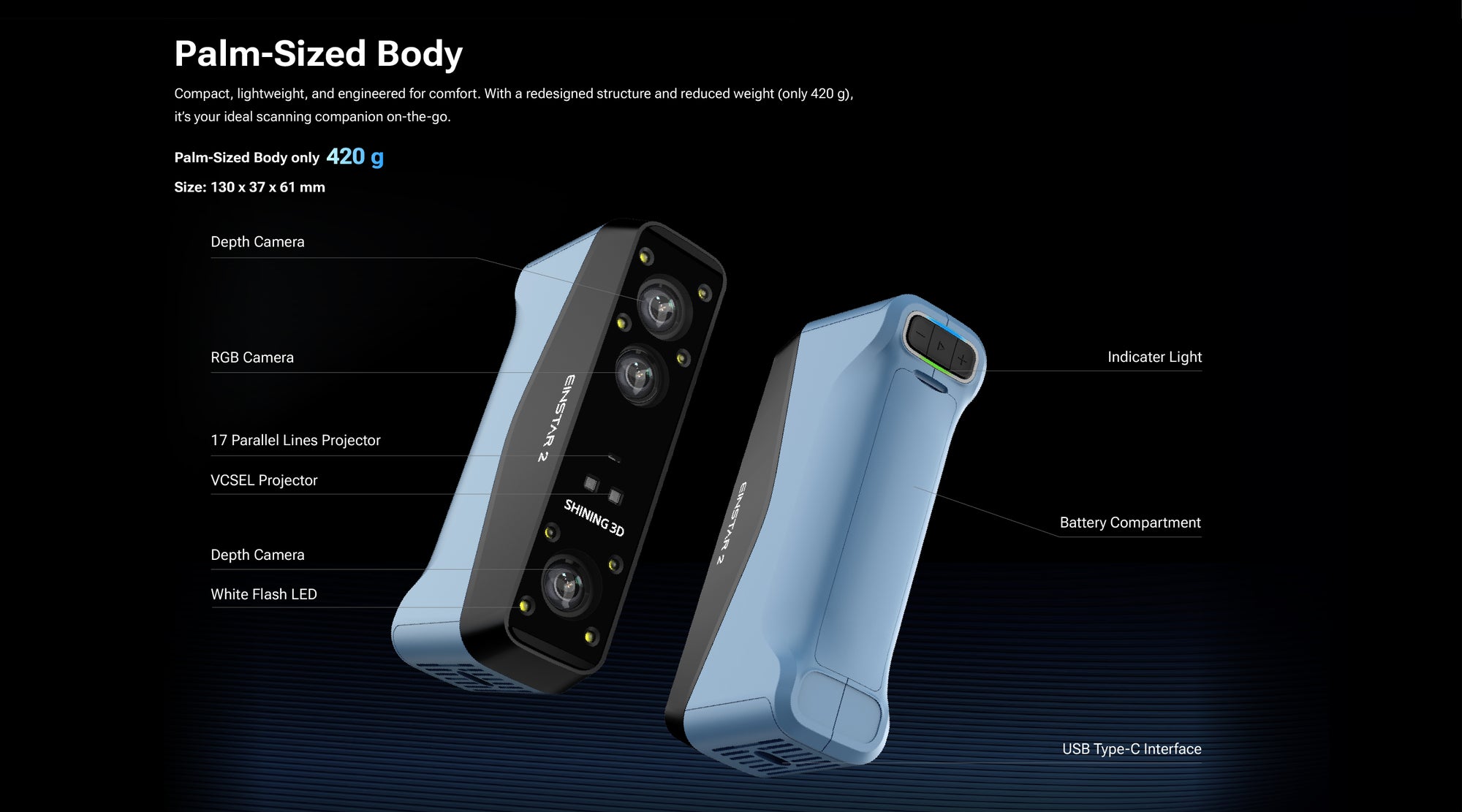

• Palm-Sized Power: Redesigned, ultra-light 420 g body built for all-day comfort and portability.
• True Wireless, Truly Tireless: Swappable battery provides up to 3 hours of cordless scanning with optional cable backup when needed.

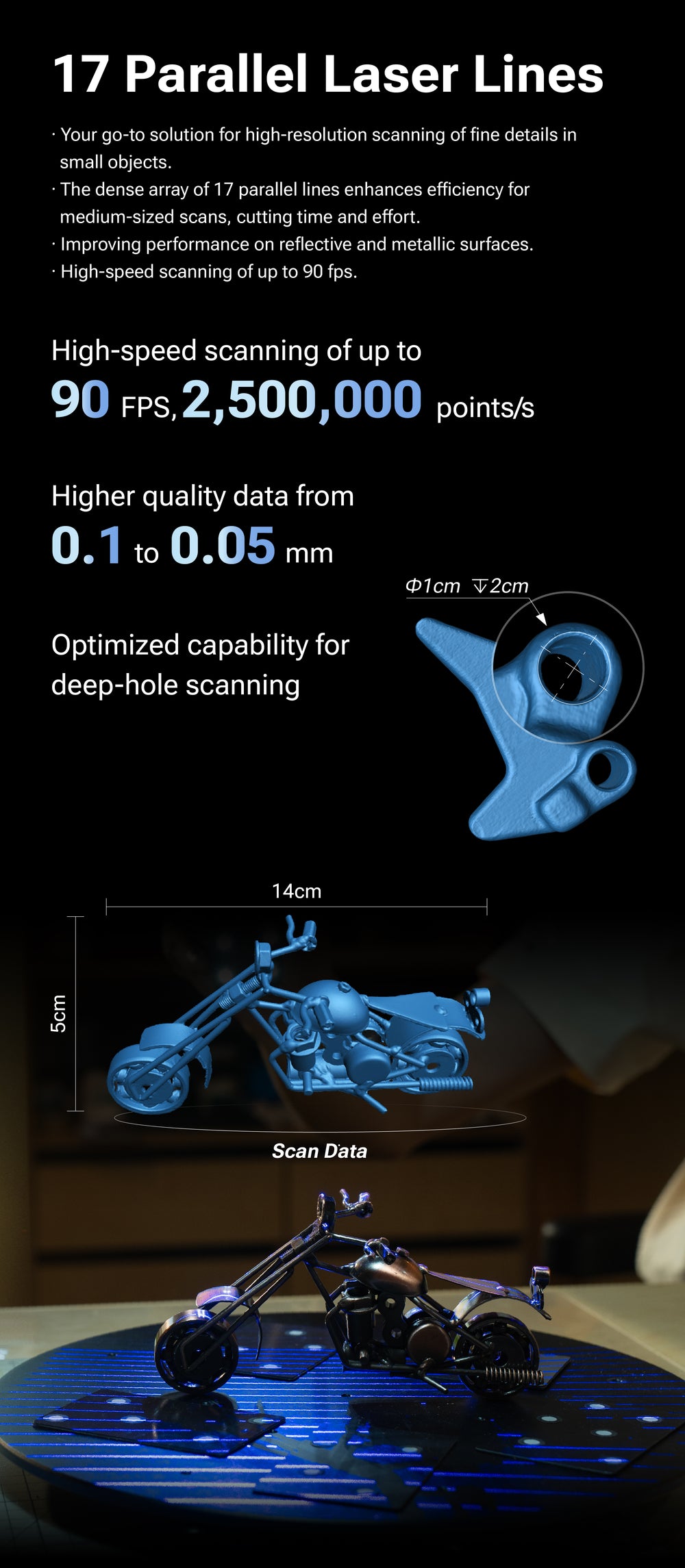

• Hybrid Light Source: 17 parallel blue laser lines and IR VCSEL combine for high-resolution detail across small, medium, and large objects.
• Fast & Accurate: Capture at up to 90 fps and 2.5 million points per second for smooth, precise results.

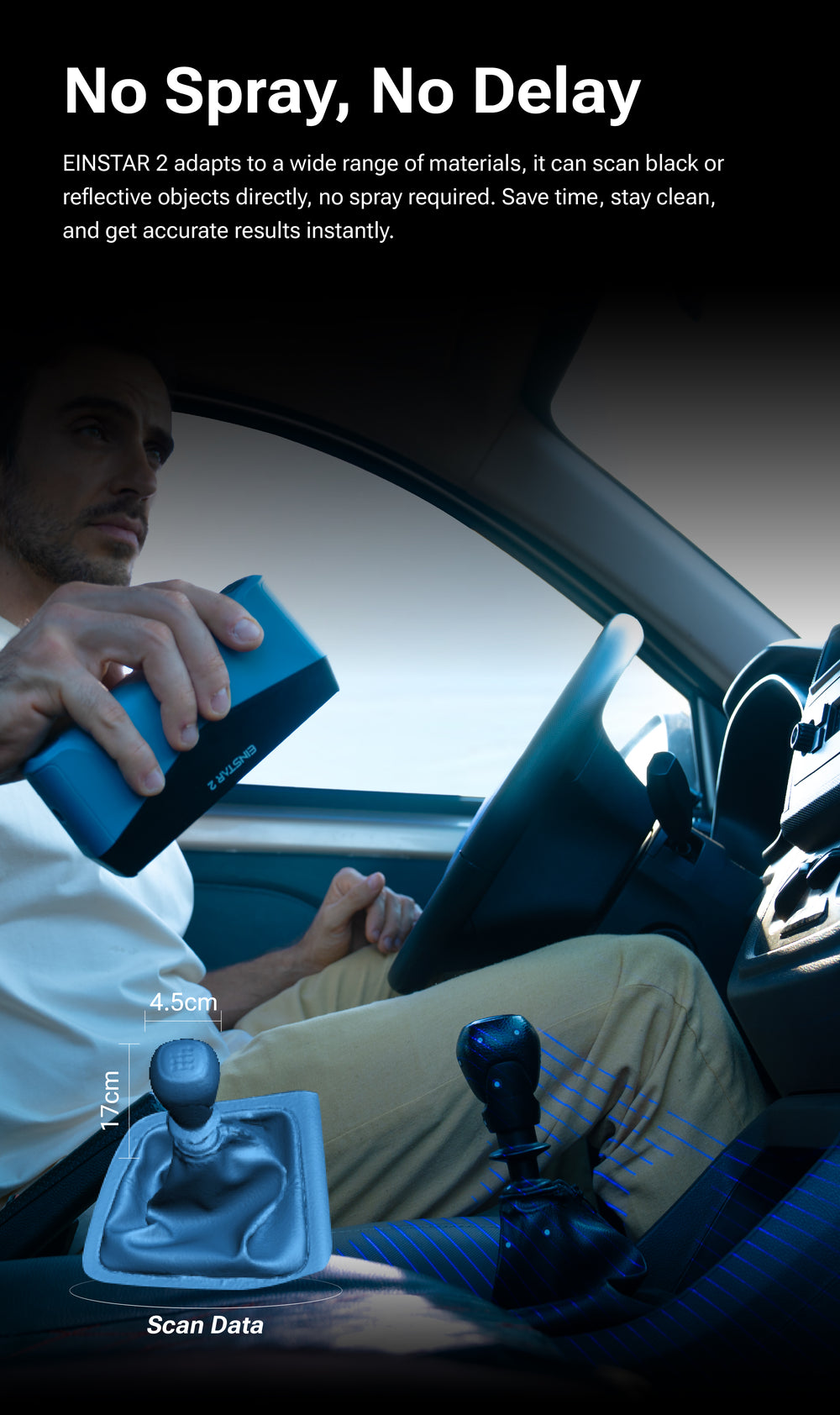

• No Spray, No Delay: Scans black, reflective, and metallic surfaces directly—no messy coating required.

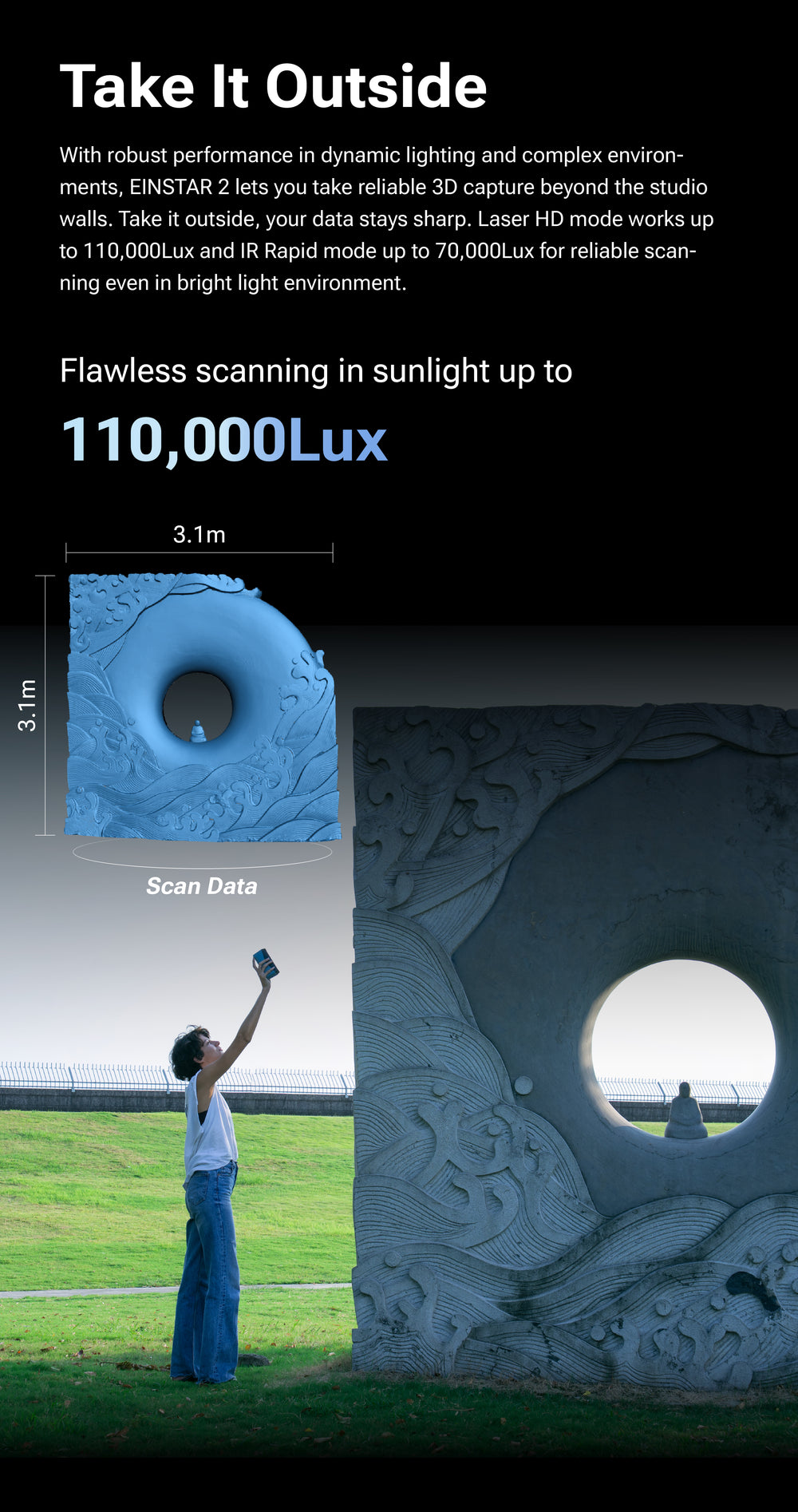

• Outdoor-Ready: Reliable performance even in bright light (Laser HD up to 110,000 Lux / IR Rapid up to 70,000 Lux).
• Lifelike Portrait Scanning: Eye-safe IR light captures full-body data in just 60 seconds.

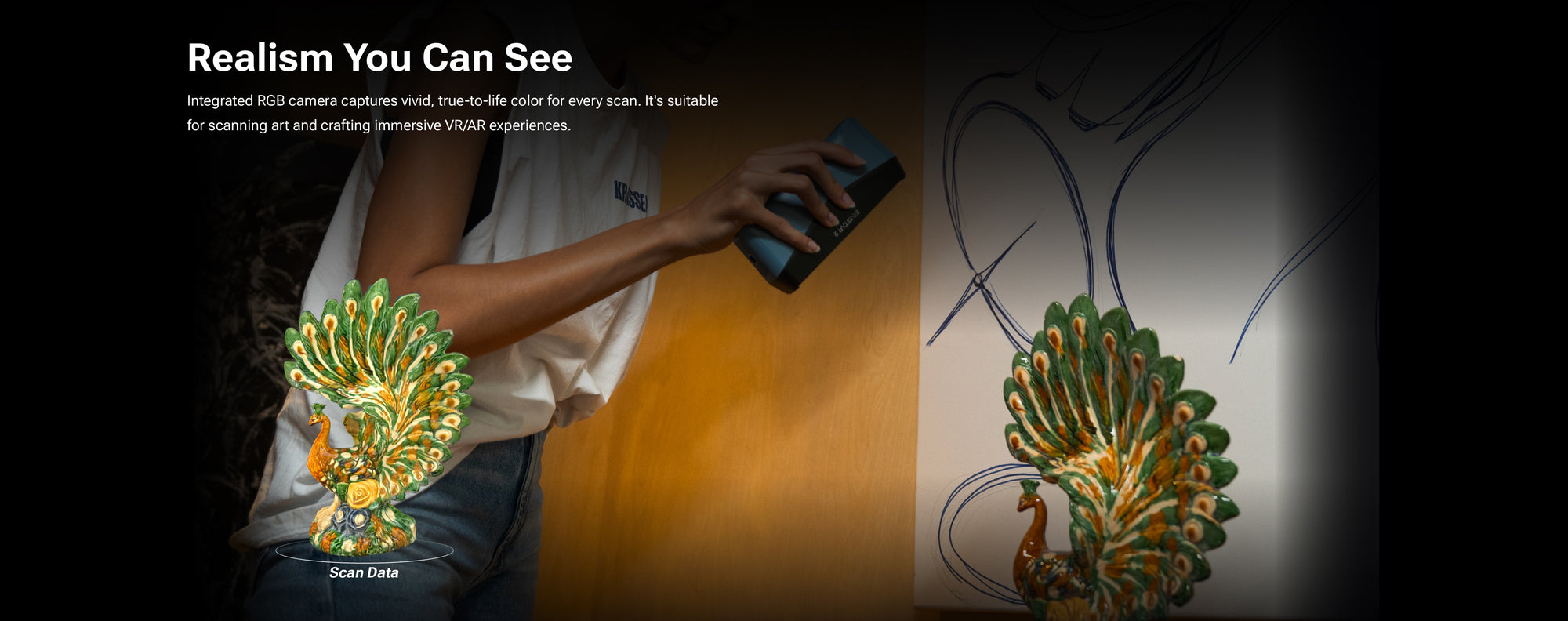

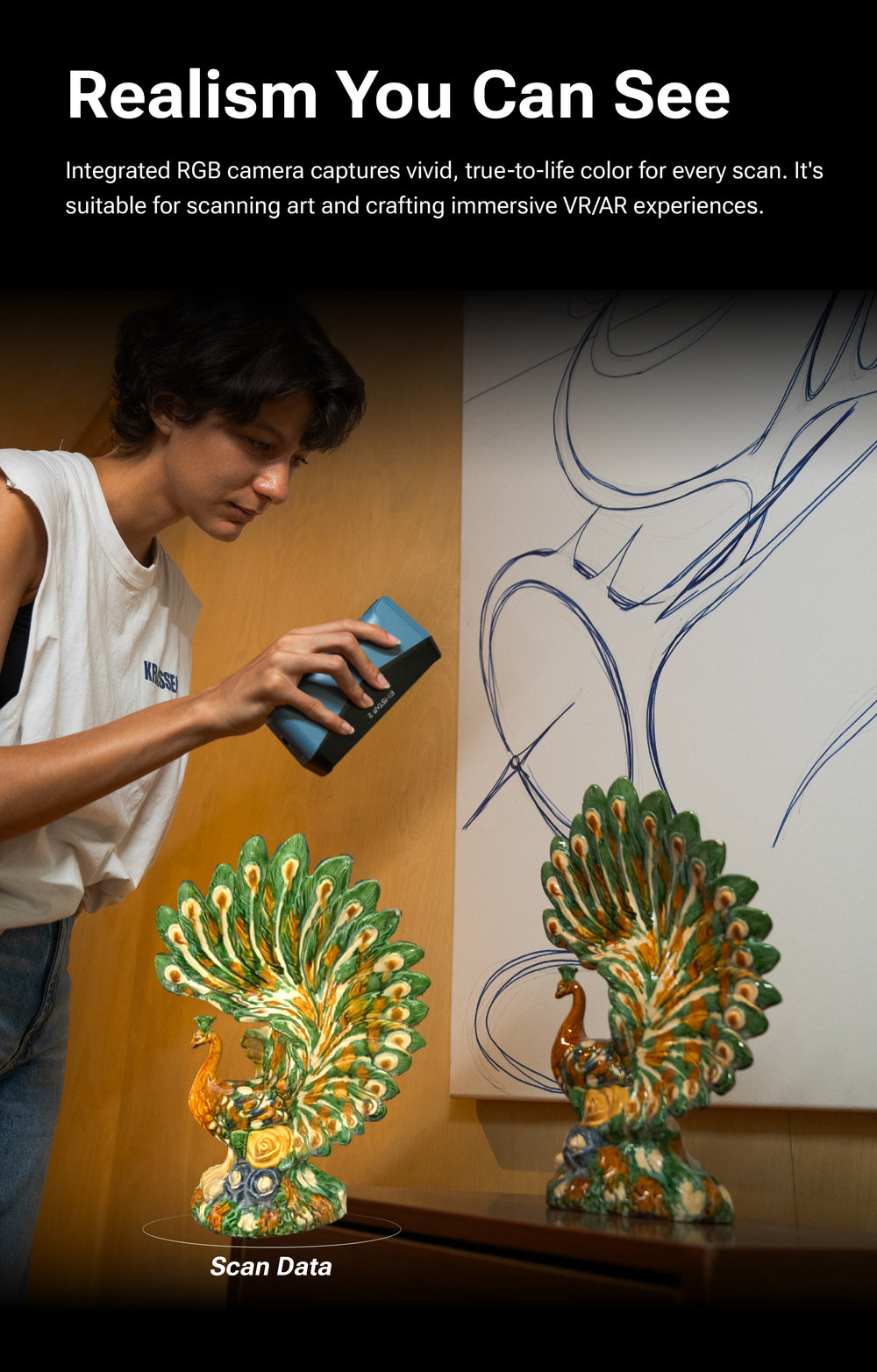

• Full-Color Reality: Integrated RGB camera delivers vivid, true-to-life textures for AR/VR, design, and 3D printing.

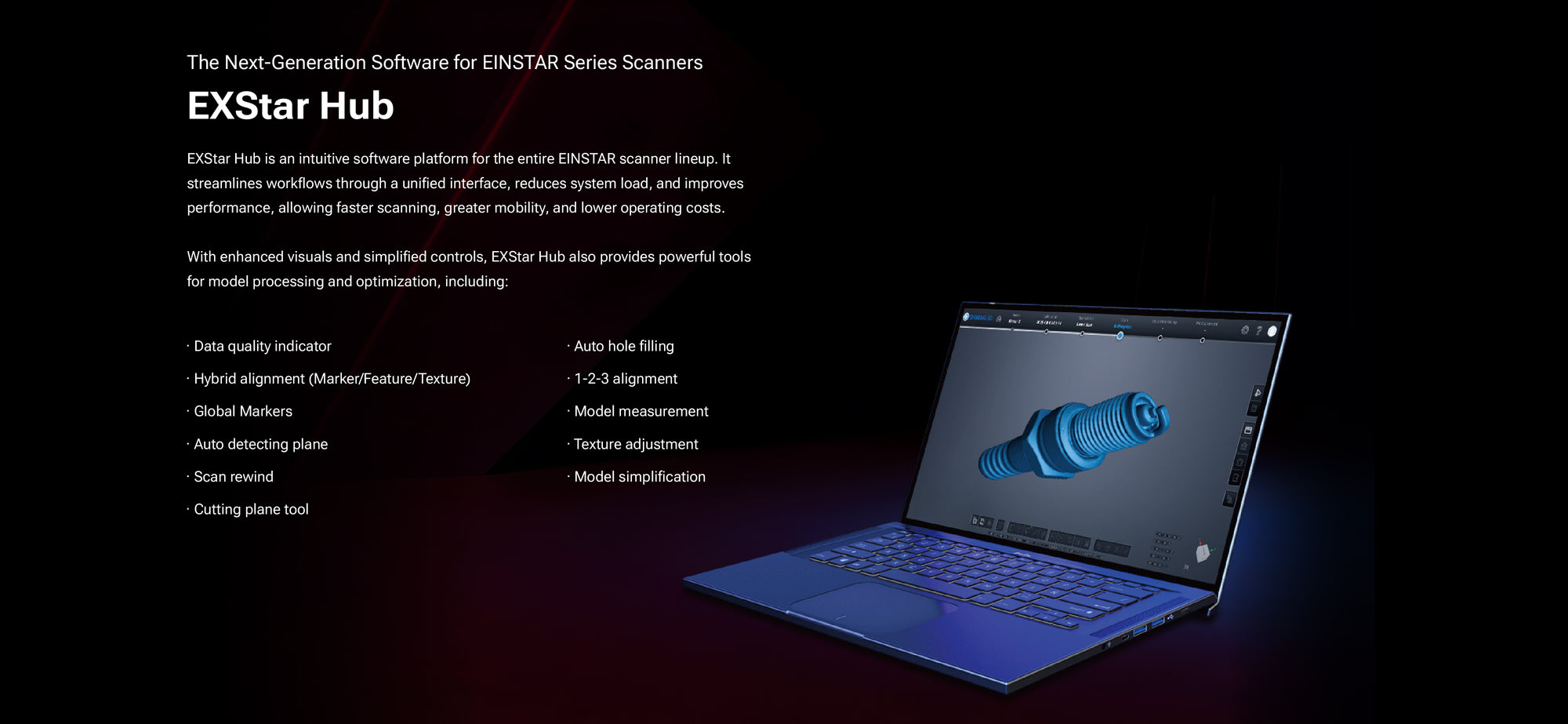

• EXStar Hub Software: Unified workflow platform with tools like scan rewind, auto hole fill, texture adjustment, and 1-2-3 alignment.

Quantity

Specifications — Einstar 2 3D Scanner

General Specifications

Camera Resolution	3D: 2 MP × 2; Texture: 2.3 MP
Output Formats	STL, OBJ, PLY, 3MF, ASC
Operation Conditions	-10 °C – 40 °C
Interface & Power Source	USB Type-C; Battery 5500 mAh; supports 60 W PD 3.0 charging
Dimensions (H × W × D)	130 × 37 × 61 mm (5.12 × 1.46 × 2.40 in)
Net Weight	420 g / 0.92 lb (batteries included); 348 g / 0.77 lb (batteries excluded)
Certifications	CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
PC Configuration Requirements	OS: Windows 11 Pro 22H2 (64-bit) Graphics: NVIDIA GeForce RTX 3060 Laptop GPU or above (VRAM ≥ 6 GB) RAM (Min/Rec): 32 GB DDR5 dual-channel / 64 GB DDR5 dual-channel Processor: 13th Gen Intel® Core™ i7-13700H or above Interface: USB 3.0

Laser HD

Light Source	17 Blue Laser Parallel Lines
Resolution	0.05 – 10 mm
Scanning Speed	2,500,000 points/s
Working Distance	100 – 600 mm
Max. FOV	490 × 580 mm
Alignment Mode	Global Marker / Markers
Minimum Scan Volume	1 × 1 × 1 cm
Laser Class	Class 2
Outdoor Scanning Environment	Below 110,000 Lux

IR Rapid

Light Source	IR VCSEL
Resolution	0.2 – 10 mm
Scanning Speed	1,440,000 points/s
Working Distance	160 – 1400 mm
Max. FOV	1170 × 1385 mm
Alignment Mode	Global Marker / Markers / Features / Texture / Hybrid
Minimum Scan Volume	5 × 5 × 5 cm
Laser Class	Class 1
Outdoor Scanning Environment	Below 70,000 Lux

The Upgrade You’ve Been Waiting For

Smarter, lighter, finer — EINSTAR 2 takes everything you loved about the original and levels it up. Say goodbye to tangled cables, messy prep work, and limited mobility. With a hybrid light source, true wireless design, and vivid full-color capture, EINSTAR 2 delivers studio-quality 3D scans with zero fuss.

From screw-sized objects to entire van interiors, from indoor setups to outdoor explorations, EINSTAR 2 handles all for creators, hobbyists, and curious minds alike. Serious results. No serious experience required.

Einstar 2 Handheld 3D Scanner

General Specifications

Laser HD

IR Rapid

The Upgrade You’ve Been Waiting For
