Wireless Marker-Free 3D Scanning
One System. Two Ways to Scan.

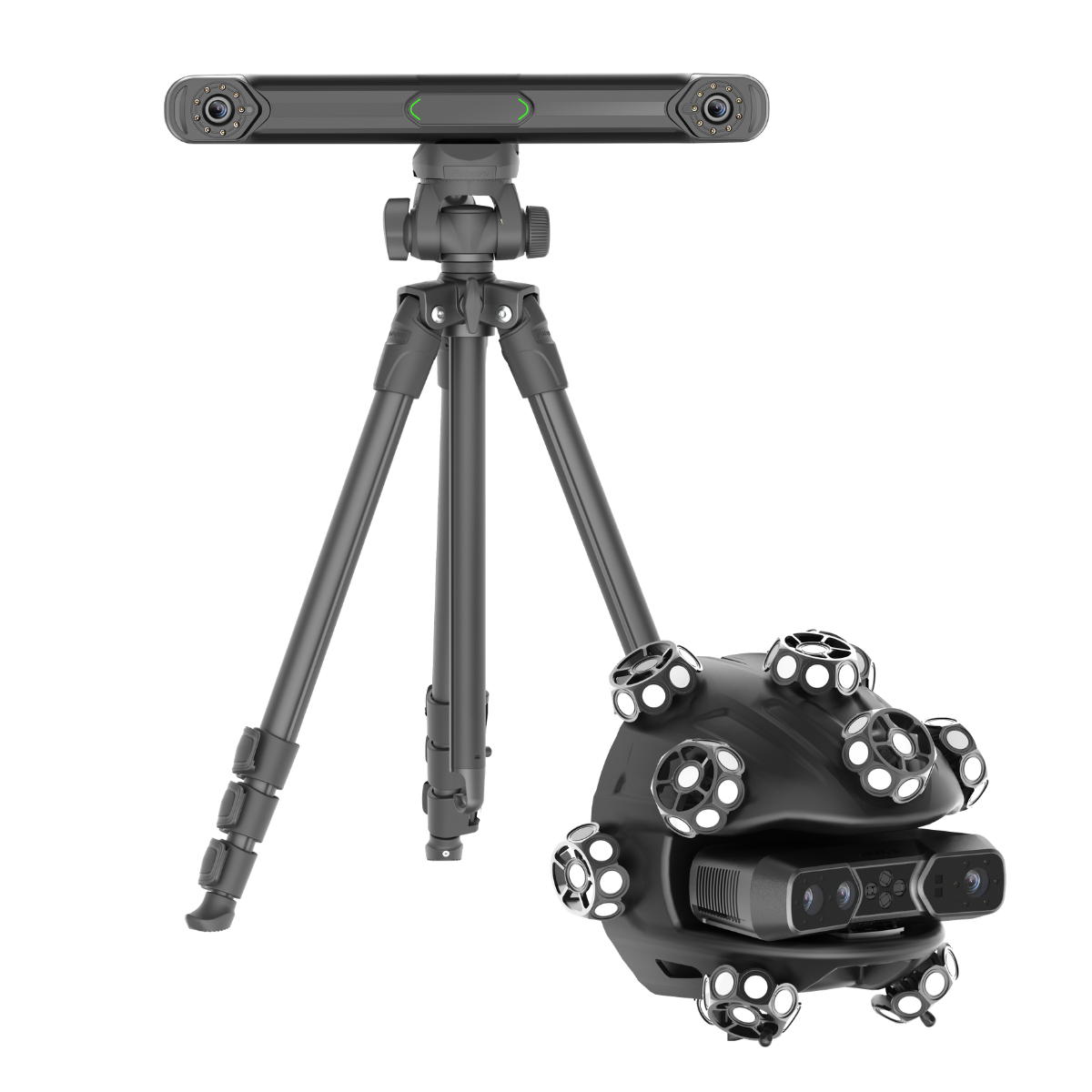

EinScan Trak combines a wireless optical tracking system with a detachable handheld 3D scanner, giving you two scanning workflows in one system. Use Tracking Mode for fast, marker-free capture of large objects, then detach the scanner for smaller parts, confined areas, or locations the tracker cannot easily reach.
With 19+19 crossed laser lines, 7 parallel laser lines, and a single deep-pocket laser, EinScan Trak is built for reverse engineering, automotive customization, industrial design, heritage preservation, and other applications that require flexible 3D data capture across a wide range of object sizes. A 5 MP texture camera also adds full-color capture for workflows where surface appearance matters.
Marker-Free Tracking
Wireless Operation
Detachable Handheld Scanner
One System, Two Work Modes
Choose the right setup for your applications—detachable, easy to calibrate, and ready with one-click startup. Enables seamless switching and flexible combination of tracking mode and handheld scanner mode, supporting real-time adjustment during scanning and cross-mode resolution merging.
Wireless Freedom, Higher Efficiency

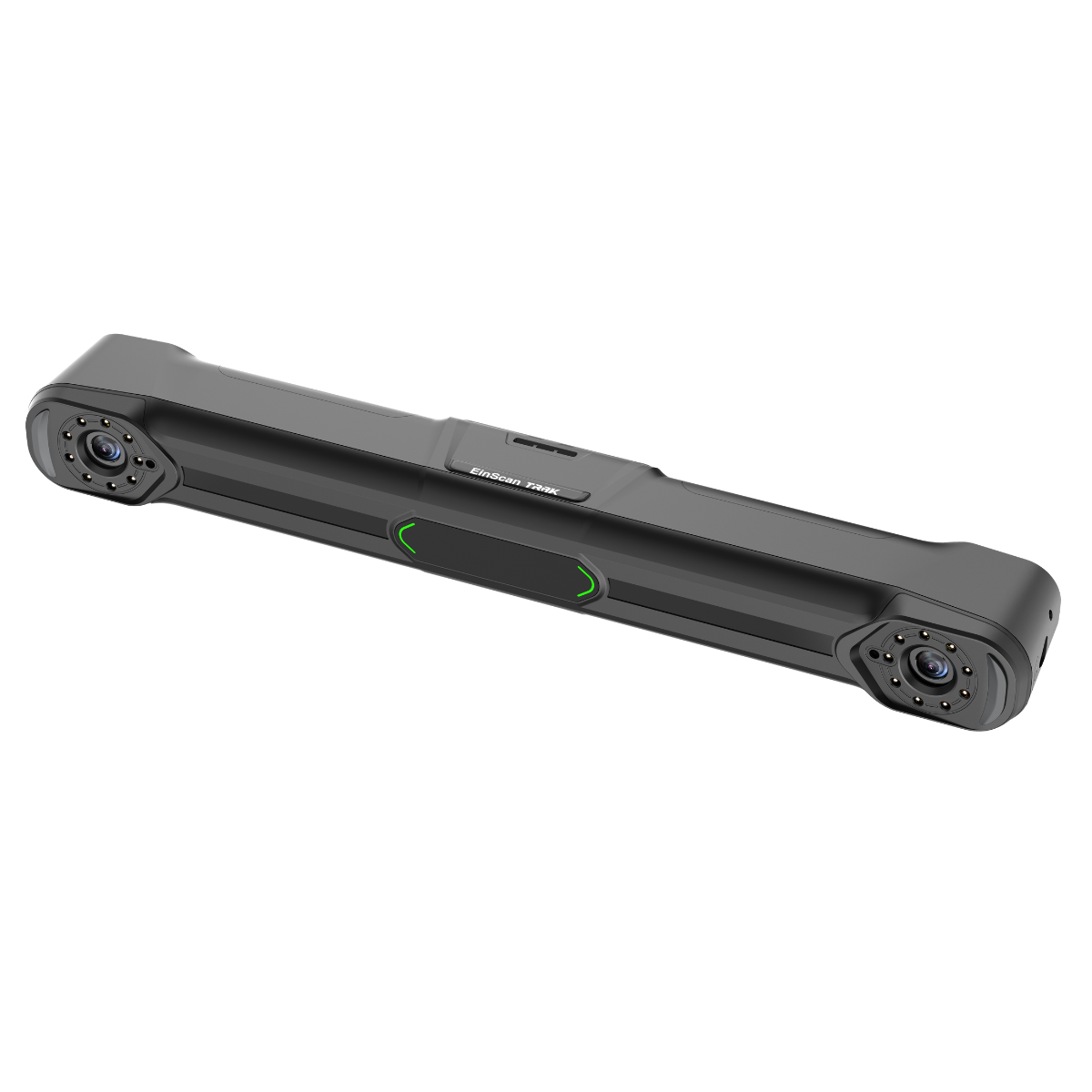

Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
*A router is required and included as standard.
All-Scenario Marker-Free 3D Scanning

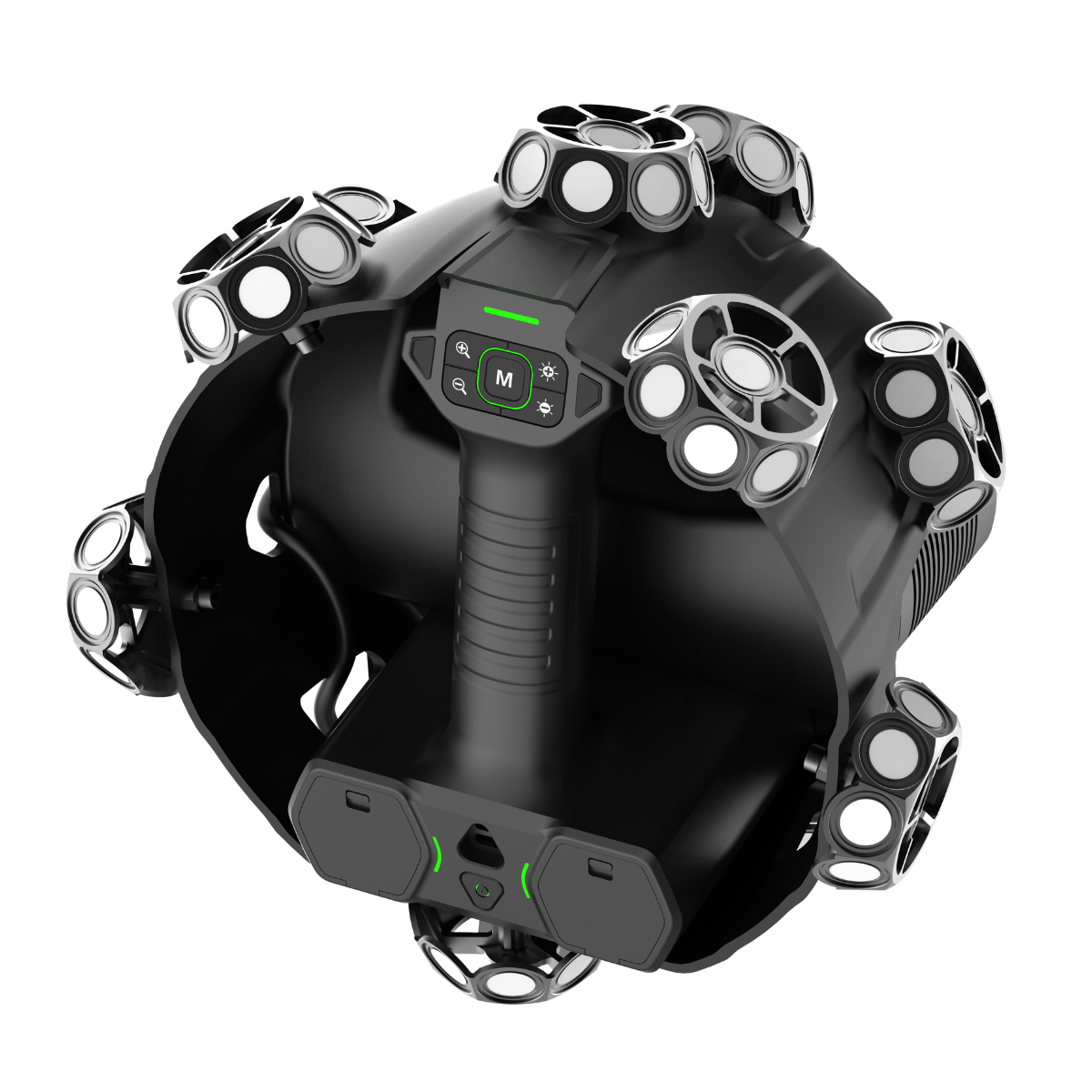

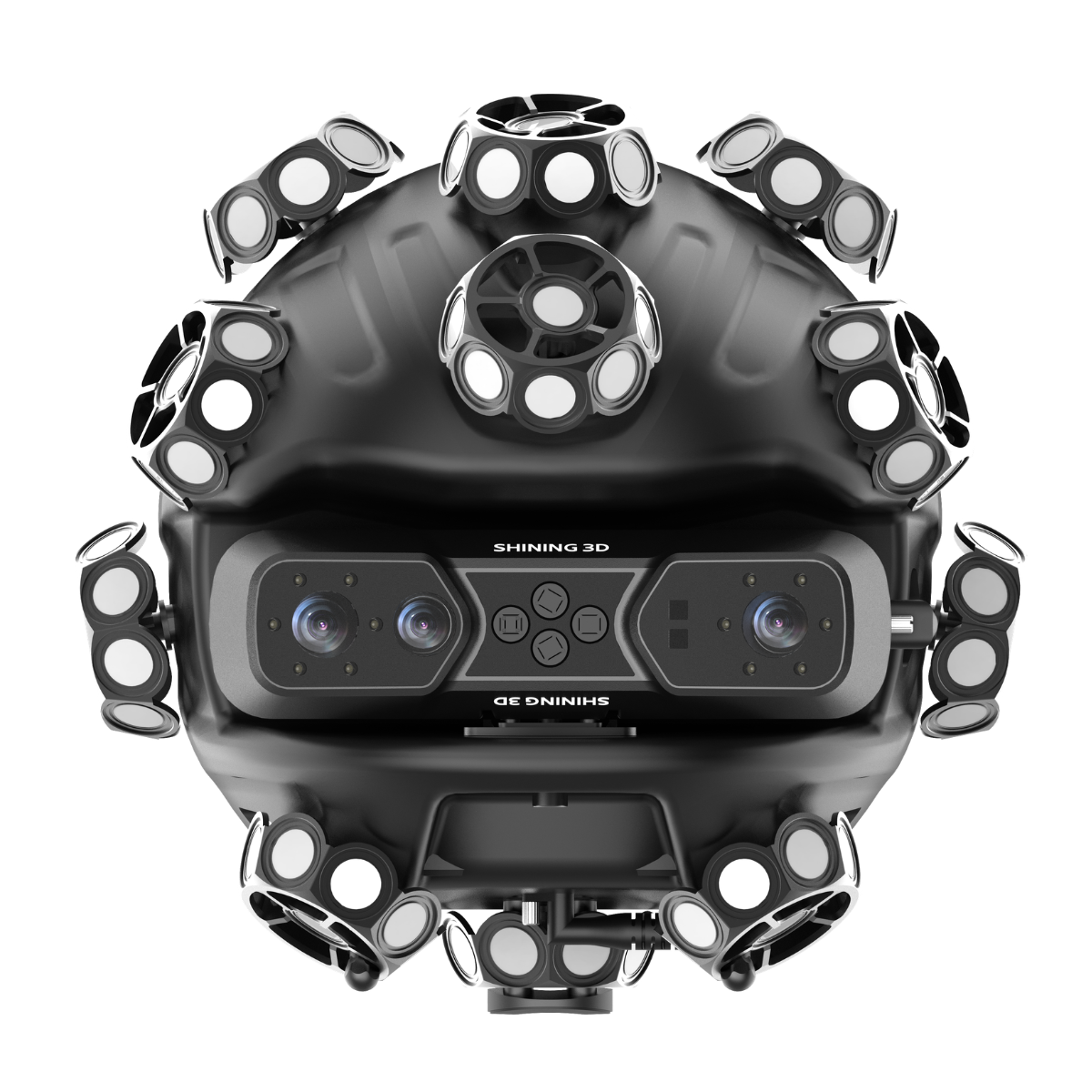

Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.

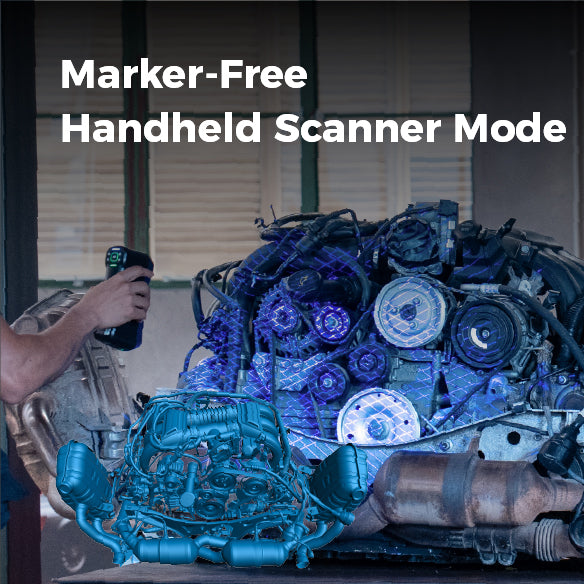

Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.
Three Scanning Modes for Diverse Needs
19+19 crossed laser lines acquire high-quality data from large objects quickly, delivering workflow efficiency and scanning flexibility.
7 parallel laser lines capture lines and sharp edges on automotive components with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.
Adaptable to Every Task
- Ideal for Various Materials
Scan black and reflective surfaces (e.g., car rims) effortlessly without any data loss. - Multi-Environment AdaptabilityReliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.
High-definition. True-color.

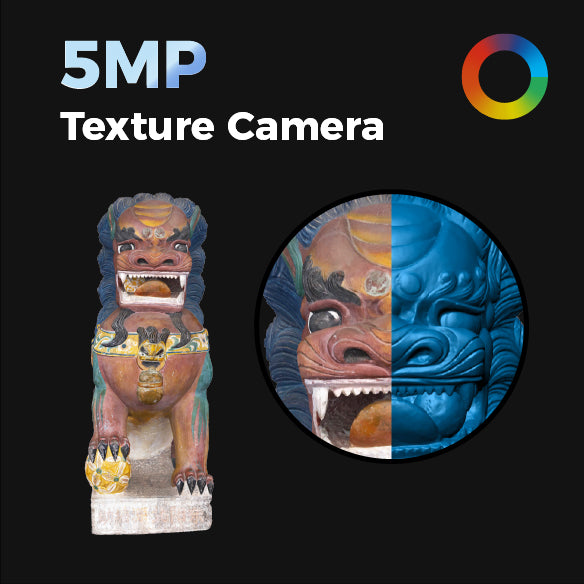

5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research, and other fields.
3D Model Gallery
EXScan Trak Software
EXScan Trak supports the complete scanning workflow, from real-time data capture and resolution control to editing and mesh processing. Software use and maintenance are included at no additional charge.
Smart Merge of Different Modes & Resolutions
Combine scan data captured with different work modes and resolutions into a unified 3D model.
Real-Time Laser & Resolution Switching
Adjust laser mode and resolution during the scanning workflow to capture broad surfaces and finer details efficiently.
Rapid Data Editing Tools
Clean and refine captured scan data before meshing and export.
Real-Time Scan Feedback
Monitor scan progress and data quality while capturing the object, helping identify areas that may need additional coverage.
Frequently Asked Questions
It addresses common limitations of handheld scanners, including restricted scanning range, the need for markers, and reliance on surface features for continuous alignment.
Within the tracking volume, users can scan smoothly without markers or surface features. The system also retains the compact size and flexibility of a handheld scanner with an unique standalone scanner mode.
EinScan Trak provides a tracking volume of up to 15 m³, easily covering vehicle-sized objects.
For larger objects, such as boats or large sculptures, users can reposition the tracker and extend the scanning area through a tran-station workflow.

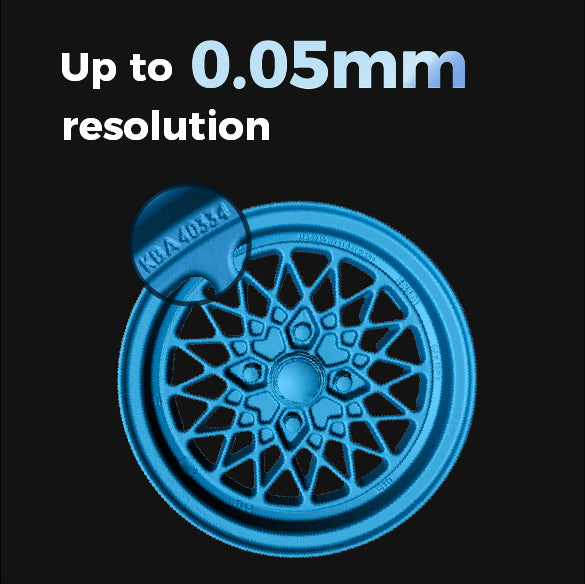

For small objects, the seven parallel laser lines provide a point distance of up to 0.05 mm and can clearly capture objects approximately 5cm in size.
EinScan Trak supports fully wireless operation.
A dedicated router connects the tracker and scanner to the computer, providing a cable-free scanning experience. Both devices are battery-powered and do not require an external power connection during operation.
The system provides up to 5.5 hours of battery life and supports hot-swapping individual batteries.
EinScan Trak supports the following file formats:
STL/OBJ/PLY/3MF/ASC

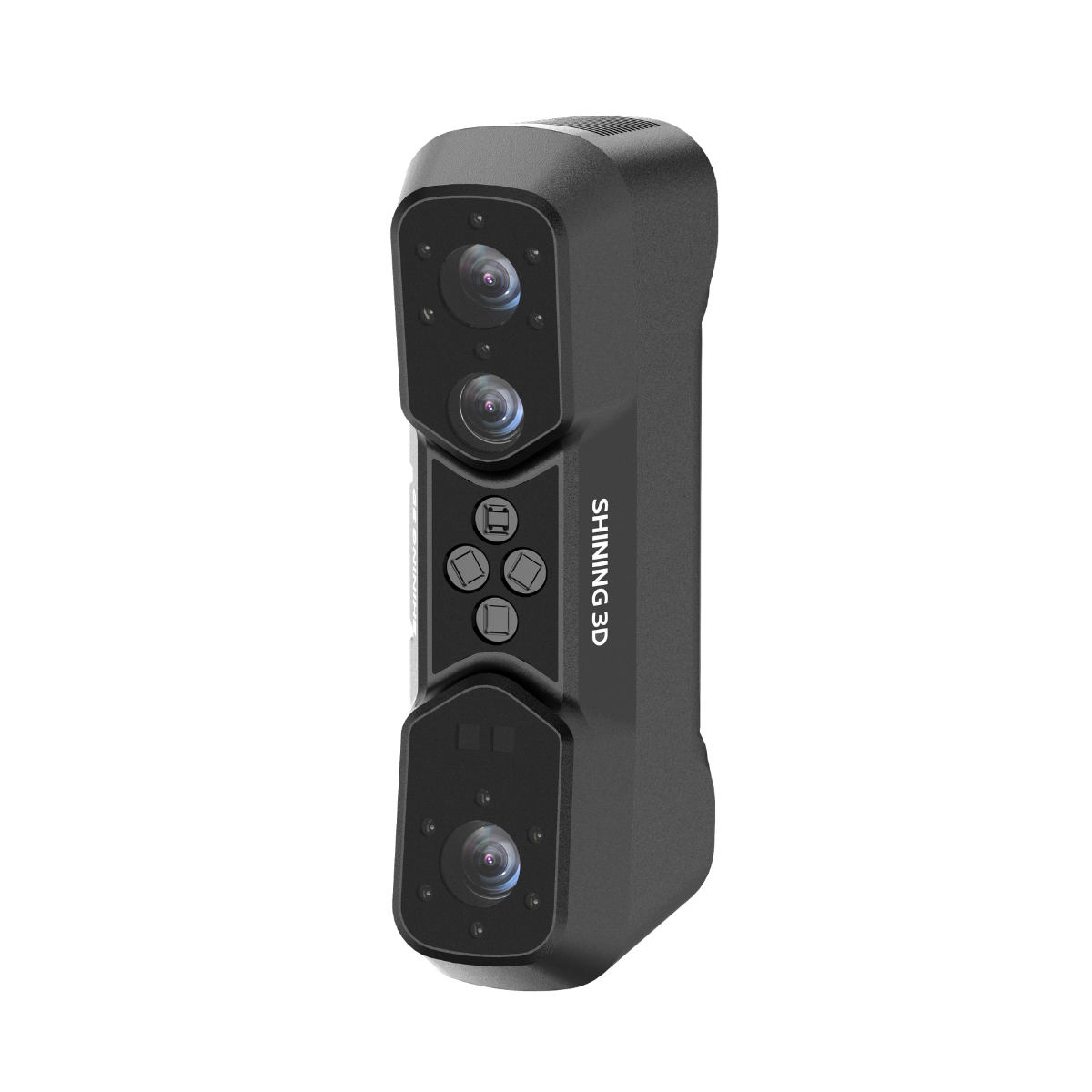

Yes. The handheld scanner can be detached from the spherical frame and used independently without recalibration.
Unlike systems that require a large and heavy target frame during standalone scanning, EinScan Trak works as a compact wireless handheld scanner. It can access narrow areas that the tracking system cannot reach and is also more convenient for scanning small objects.
Both Tracking Mode and Scanner Mode support marker-free laser scanning.
Markers may improve the scanning experience in two situations:
For large objects that require multiple scanning passes, Global Marker or Hybrid Leapfrog can help maintain higher alignment accuracy.
In Scanner Mode, small objects or objects with few geometric features may not be suitable for marker-free alignment. Markers can be placed around the object to support stable tracking.
EXMeasure is professional measurement software designed for users who need advanced functions such as dimensional measurement, coordinate-system alignment, and geometric dimensioning and tolerancing analysis.
It also supports the export of visual inspection reports.
A one-year EXMeasure license, valued at US$699, is included with every EinScan Trak purchase at no additional cost.
