OptimScan Q Series - High-Precision 3D Inspection Scanners
Reliable High Performance

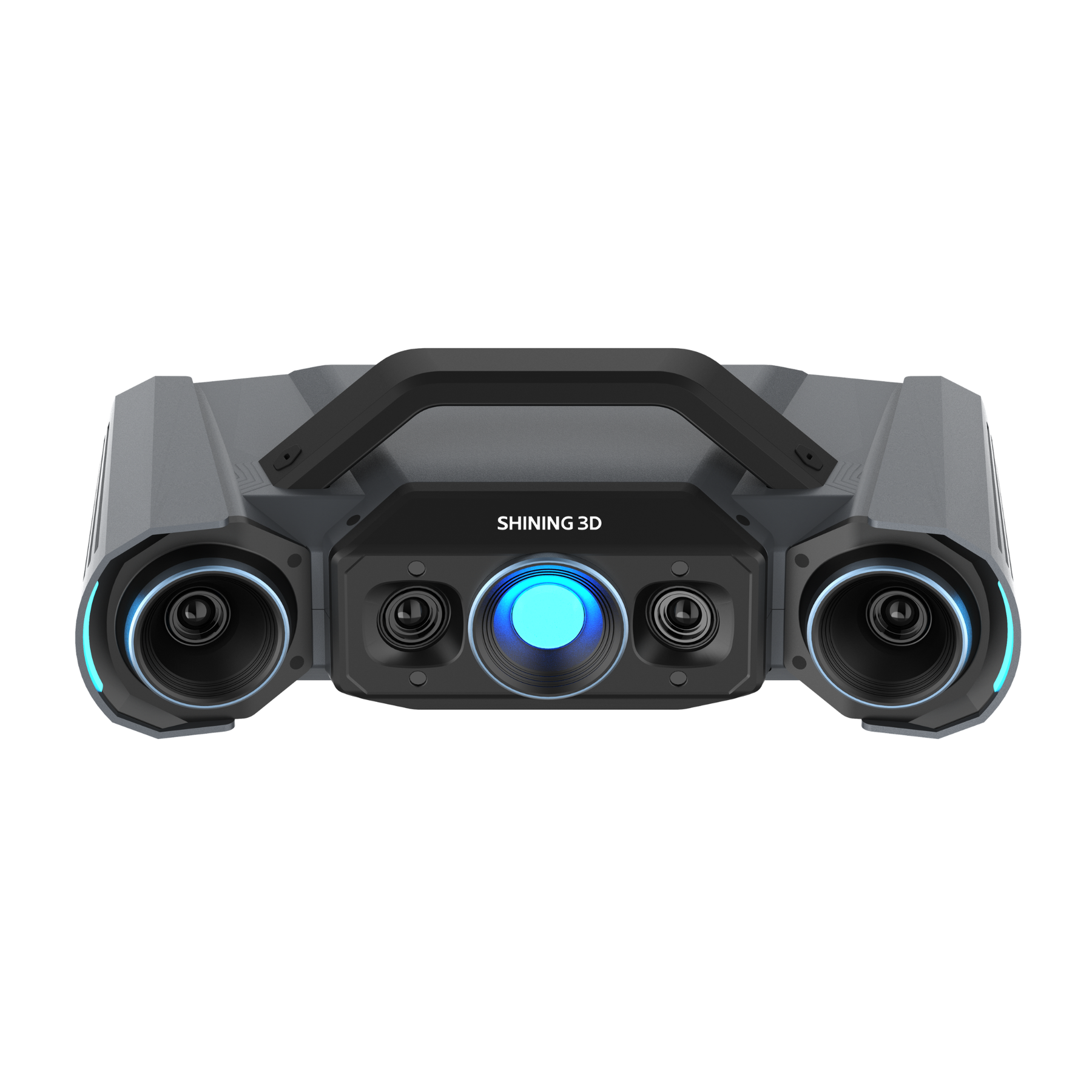

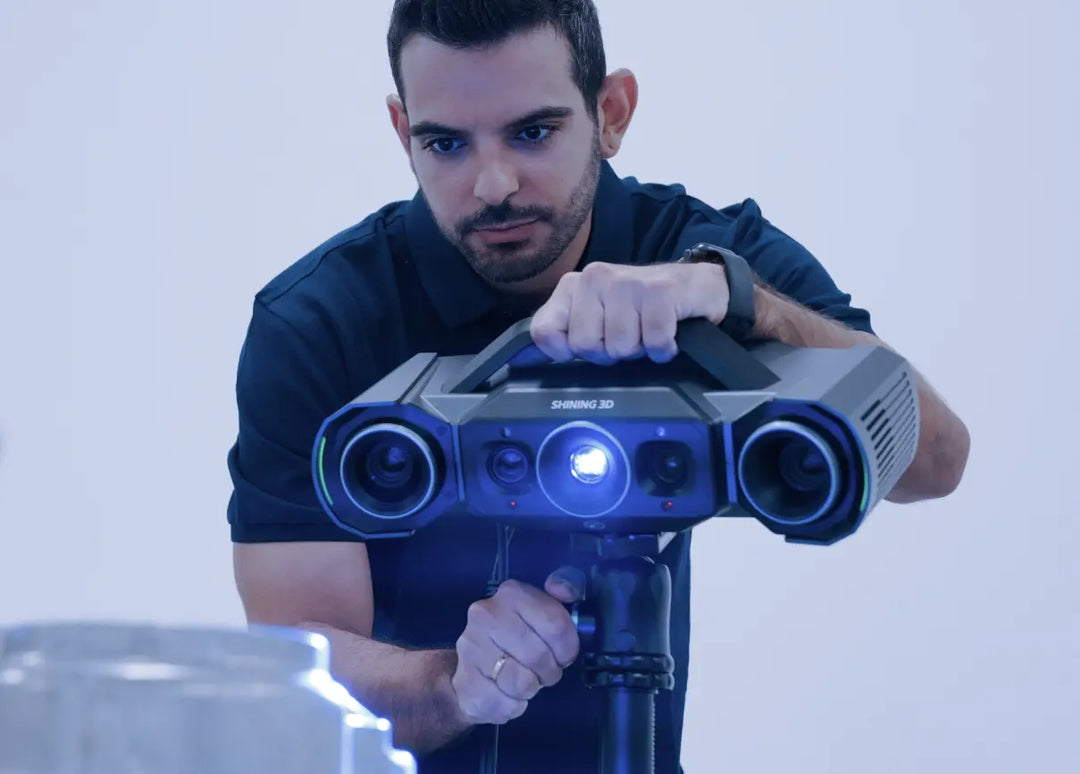

Equipped with four high-resolution cameras, OptimScan Q systems can accurately capture geometrically intricate features on an object's surface.
Combined with powerful hardware modules and advanced 3D reconstruction algorithms, the systems deliver an impressive accuracy of 0.005 mm, verified against VDI/VDE 2634 Part 2 and ISO 10360 standards. Every system is tested in our ISO 17025-accredited laboratory to ensure the highest level of repeatability and metrological traceability.
Dual Scan Range, Easy to Operate

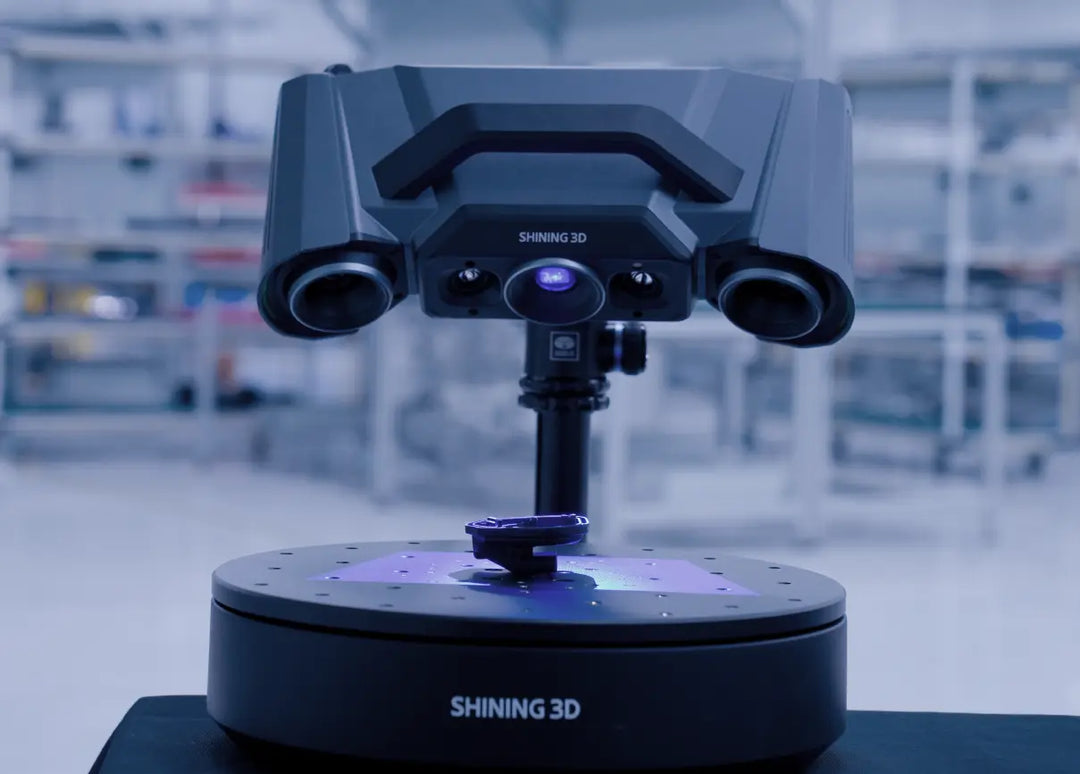

OptimScan Q series features two scan ranges that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
- Large range: 430 × 300 mm
- Small range: 160 ×110 mm
Scanned data from different ranges can be seamlessly fused in the software, ensuring both efficiency and detail.
Monocular-Stereo Fusion (MSF)

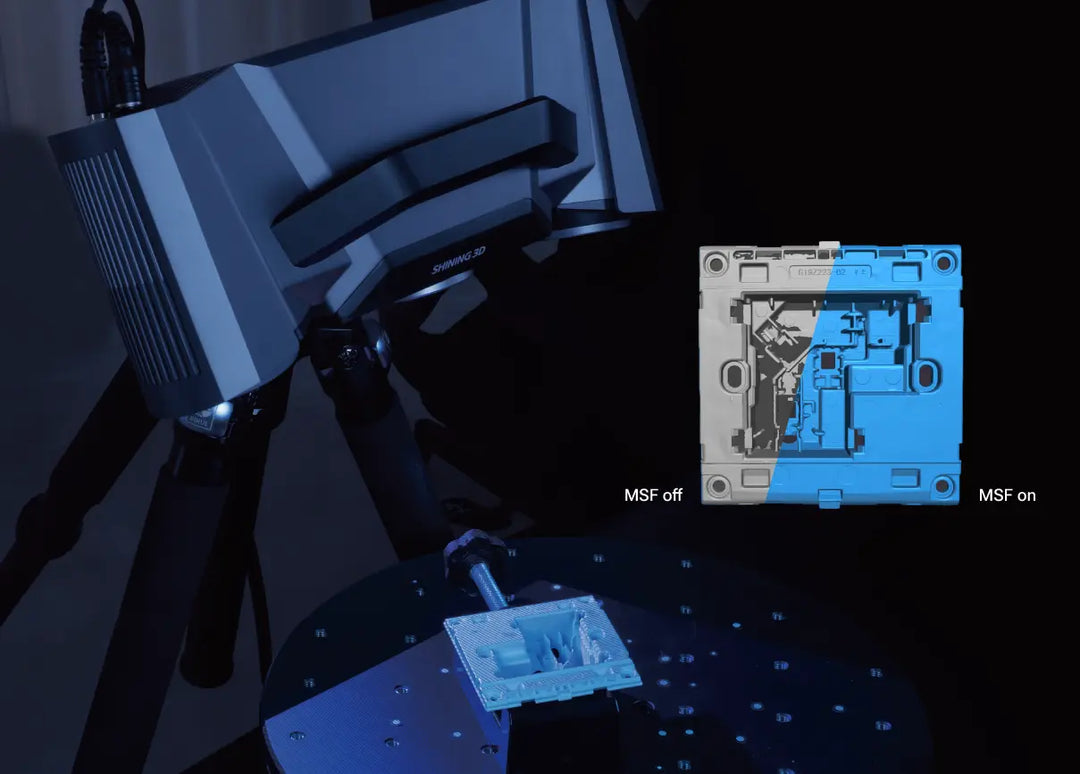

The monocular-stereo fusion function can effectively increase data coverage and improve the integrity of the scanned data, such as the common turning corners and joints of industrial parts.
Multiple Exposure, Faster Scanning

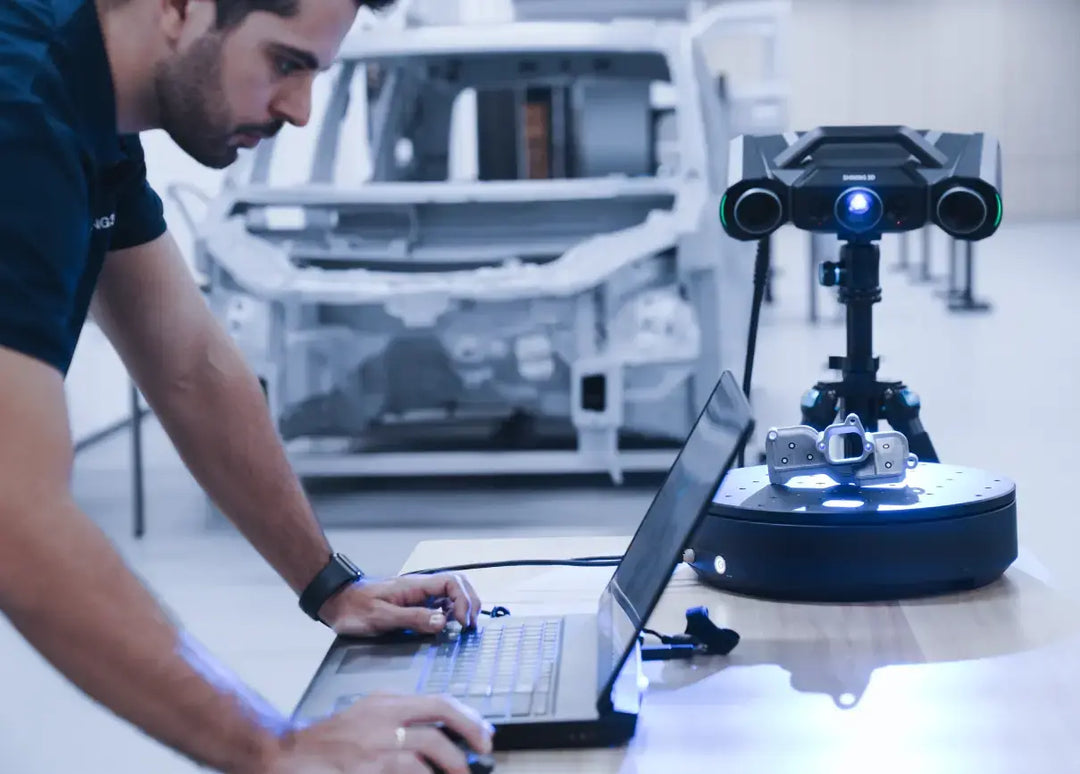

Powered by a built-in dual-chip computing module, OptimScan Q series delivers rapid image acquisition and efficient data processing. Each shot takes less than 1 second, capturing a dense set of high-resolution data points with exceptional precision.
To further streamline the workflow, the systems support multiple exposure modes—including intelligent automatic exposure—significantly reducing scanning time while ensuring optimal results across a wide range of surface conditions.
Versatile and Highly Adaptable

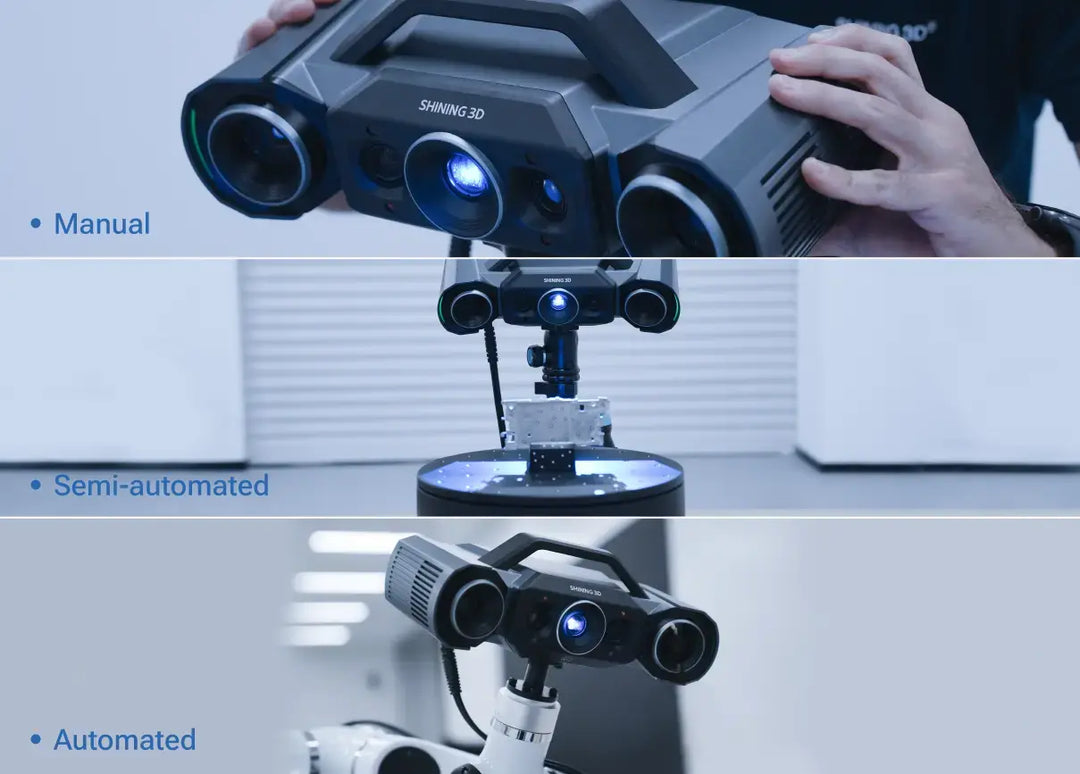

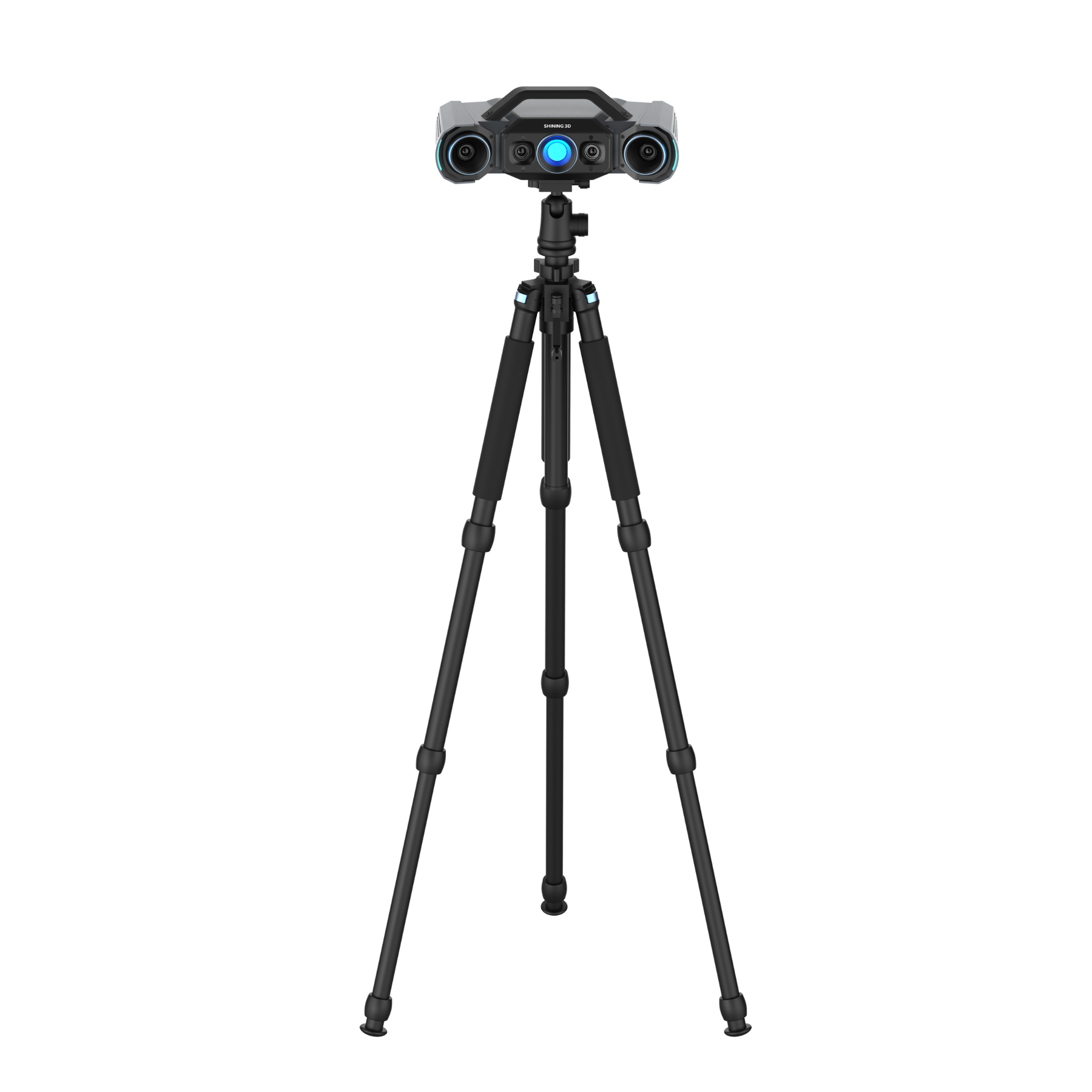

OptimScan Q systems is compact and easy to carry, offering flexible manual scanning. For semi-automated operation, it pairs with a fixed tripod and an automatic turntable with up to 20 kg load, providing increased efficiency and consistency in scanning. In fully automated mode, it integrates with a robot for precise, repetitive inspection tasks.
Automatic Dual-Axis Turntable (Optional)

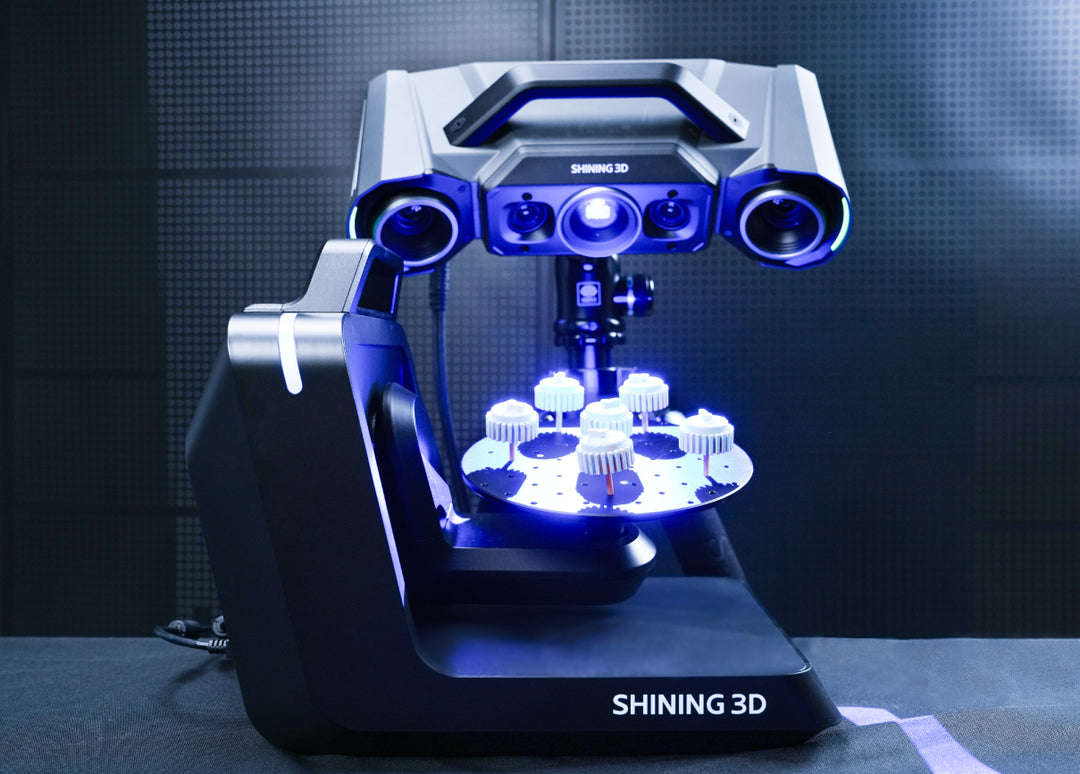

Designed to work seamlessly with high-precision 3D inspection systems, the automatic dual-axis turntable (up to 3 kg load) enables multi-angle automated scanning with a single click within the scanning software.
Automated Inspection Solution

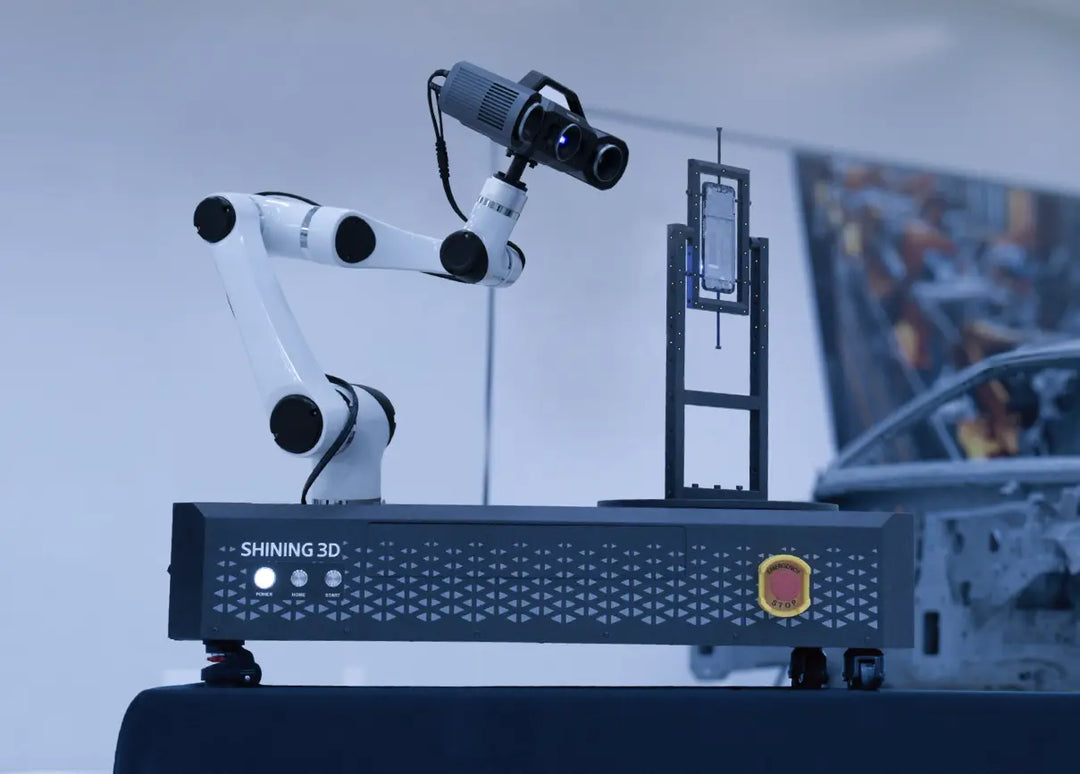

OptimScan Q series can seamlessly integrates with intelligent 3D inspection system, enabling fully automated workflow from scanning to report generation.
Workflow:
- Path Teaching
- Automated 3D Measurement
- Automated 3D Inspection
- Automated Report Generation
Certified Metrology Accuracy
- Verified Standards: Rigorous acceptance testing based on VDI/VDE 2634 and ISO 10360.

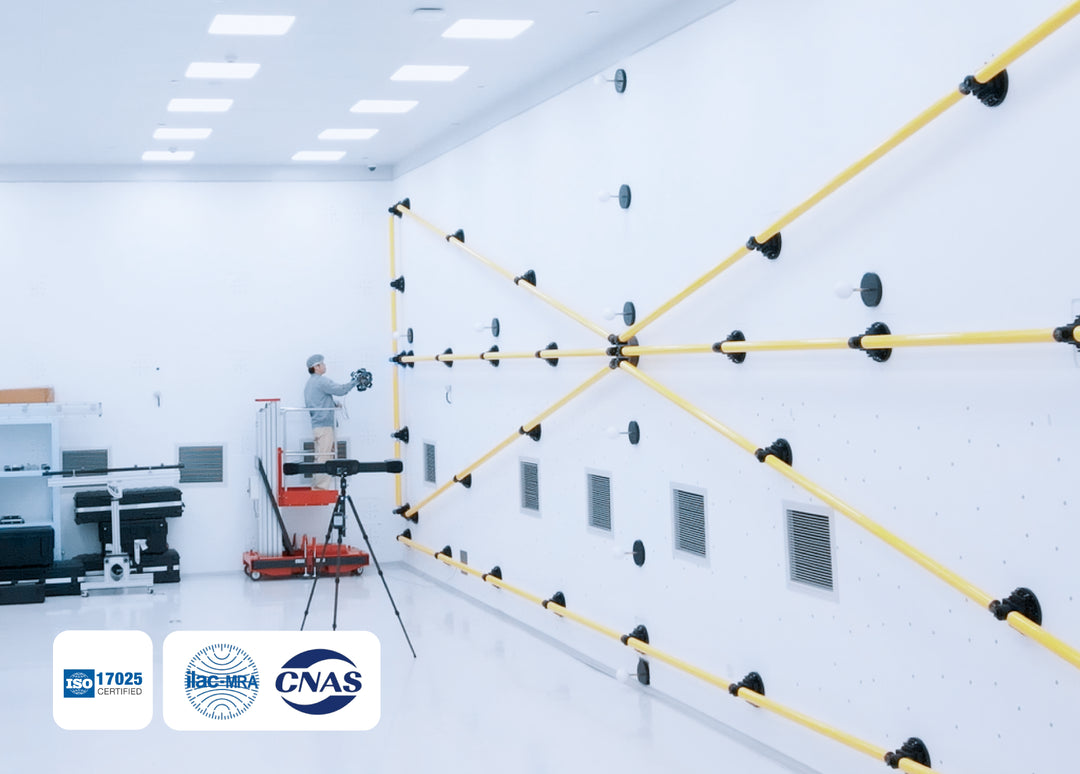

- Accredited Lab: Calibrated in our ISO/IEC 17025 Accuracy Laboratory.
- Full Traceability: Our integrated control system ensures every measurement is internationally traceable.
3D Model Gallery
Frequently Asked Questions
No. OptimScan Q series doesn't have a color camera to capture the texture information of object.
OptimScan Q series supports markerless scanning. For higher accuracy requirements, it can recognize 1mm, 2mm, or 4mm non-reflective markers.
Yes. The scanner provides inspection reports and calibration certificates traceable to international standards such as VDI/VDE 2634 and ISO 10360 (subject to the actual certificates issued). All calibration and verification procedures are performed in SHINING 3D’s accredited Accuracy Lab, which operates in accordance with ISO/IEC 17025 requirements.
A handheld scanner offers flexibility and portability, making it ideal for scanning large, complex, or hard-to-reach parts. A fixed scanner is mounted in a stable position and is better suited for repetitive, high-precision scanning of smaller parts in controlled environments.
We recommend using OptimScan Q series for small to medium-sized objects in high-precision application scenarios such as automotive, electronic, mold manufacturing and so on.
OptimScan Q series software can be integrated with SHINING3D Inspect module, offering comprehensive functionalities such as Compare, Cross-Section, Feature, Dimension, Gauges, Report, and Quick Measurement, enabling diverse inspection requirements.
SHINING 3D scanners are calibrated using certified artifacts or calibration panels traceable to metrology standards. Regular calibration ensures measurement traceability, maintains accuracy, and aligns the scanner with quality management requirements.

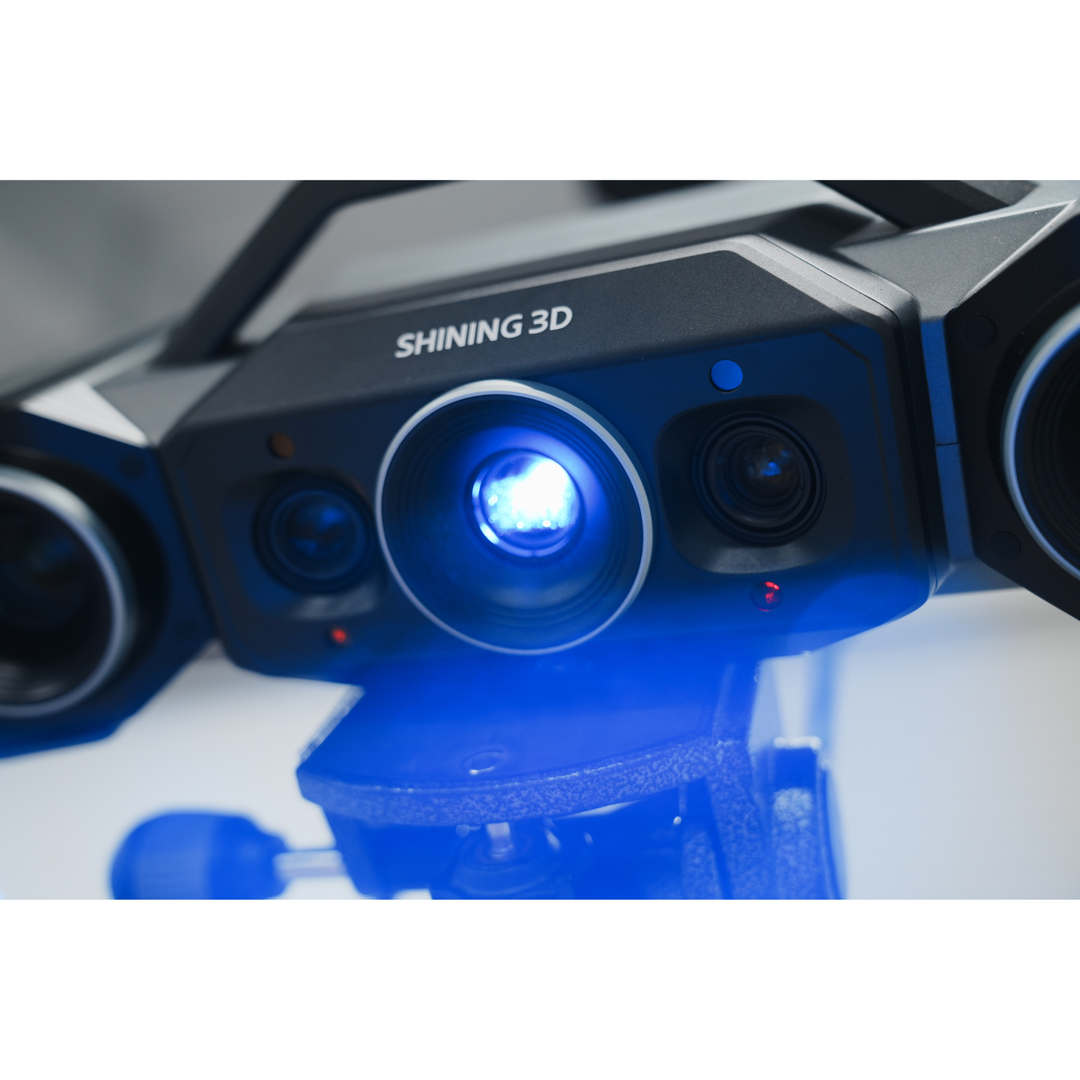

OptimScan Q Series supports blue LED for data acquisition.
Blue LED: Projects grating patterns to capture dense surface data, excelling at fine textures, complex geometries, and small details.
