FreeScan Omni Series - World's First Standalone Inspection Ready Metrology 3D Scanner
- On-Scanner Scan-To-Inspect
- Certified Accuracy of 0.02 mm
- Multi-Mode & High-Performance
- Scalable Platform with Modular Expansion

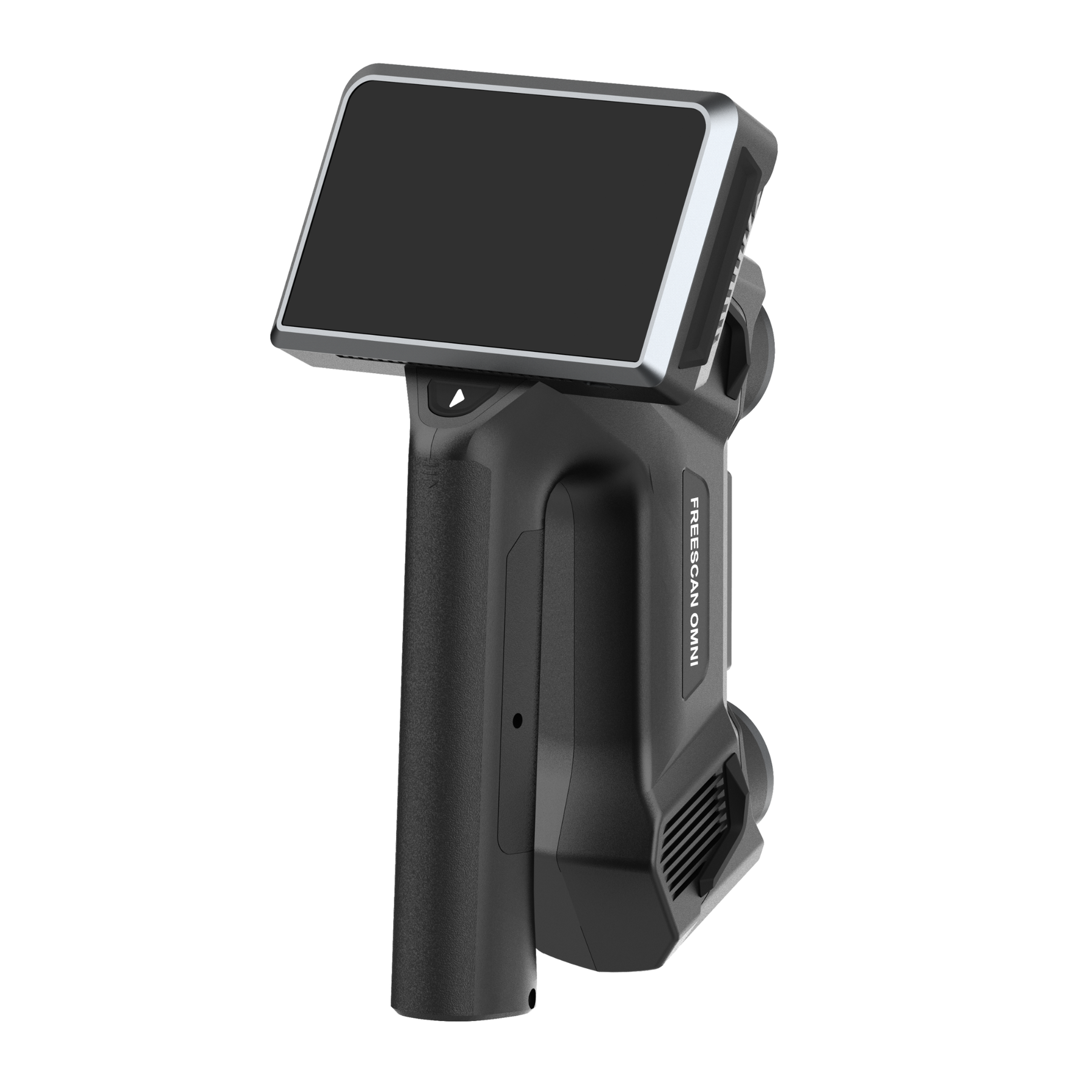

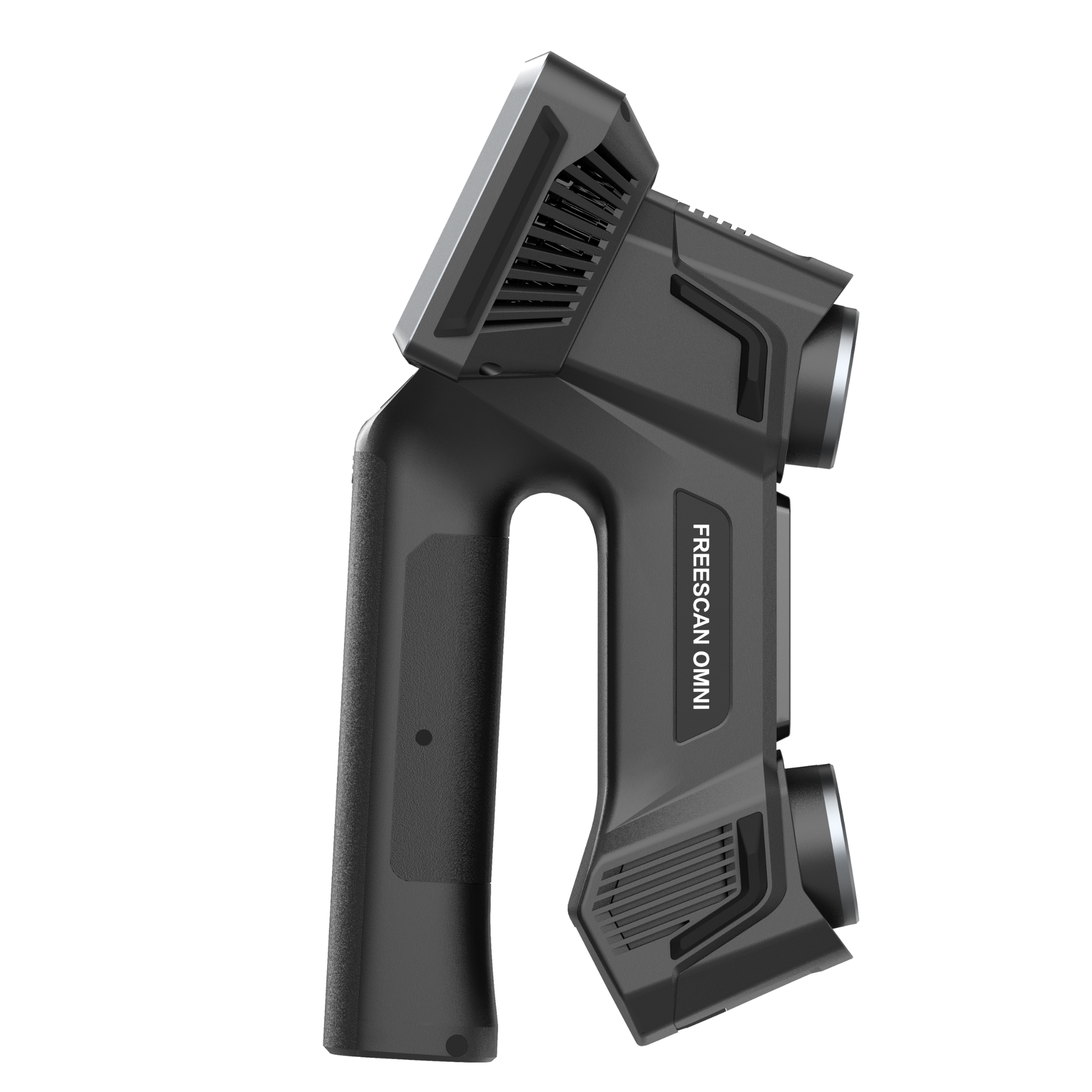

FreeScan Omni Series Standalone Metrology-Grade 3D Scanner with On-Device Inspection
The FreeScan Omni Series is a standalone, inspection-ready metrology 3D scanner designed for industrial quality control and field inspection. With on-device scanning, meshing, inspection, and reporting, it enables a complete scan-to-inspect workflow without requiring a connected PC. Engineers can capture high-accuracy data up to 0.02 mm directly on the scanner, streamlining measurement tasks in both lab and production environments.
Built for portability and real-world industrial use, the FreeScan Omni Series combines wireless operation with integrated inspection capabilities to bring metrology directly to the part. Its multi-mode laser scanning system supports a wide range of components and applications, allowing users to perform precise dimensional verification and generate reports on-site. This makes the Omni a practical solution for manufacturing, automotive, aerospace, and heavy industry teams that need certified accuracy beyond traditional fixed lab setups.

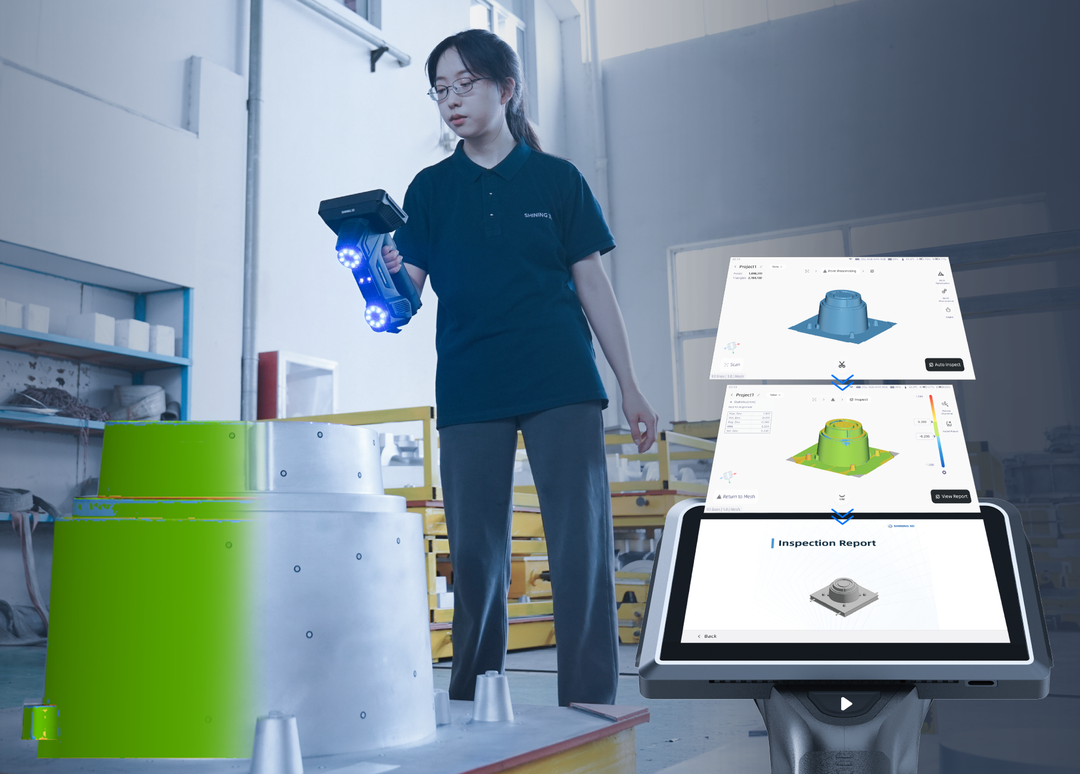

Metrology-Grade On-Scanner Inspection
From scanning and meshing to inspection and reporting, every step is seamlessly completed right on the scanner. With preset templates and an intuitive interface, frontline staff can just scan the part and get instant, consistent reports—making quality control efficient and scalable.
- Built-in PTB-certified software
- Automated & intuitive inspection
- Effortless reporting & export
Video Photogrammetry (VPG)
FreeScan Omni Series supports SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

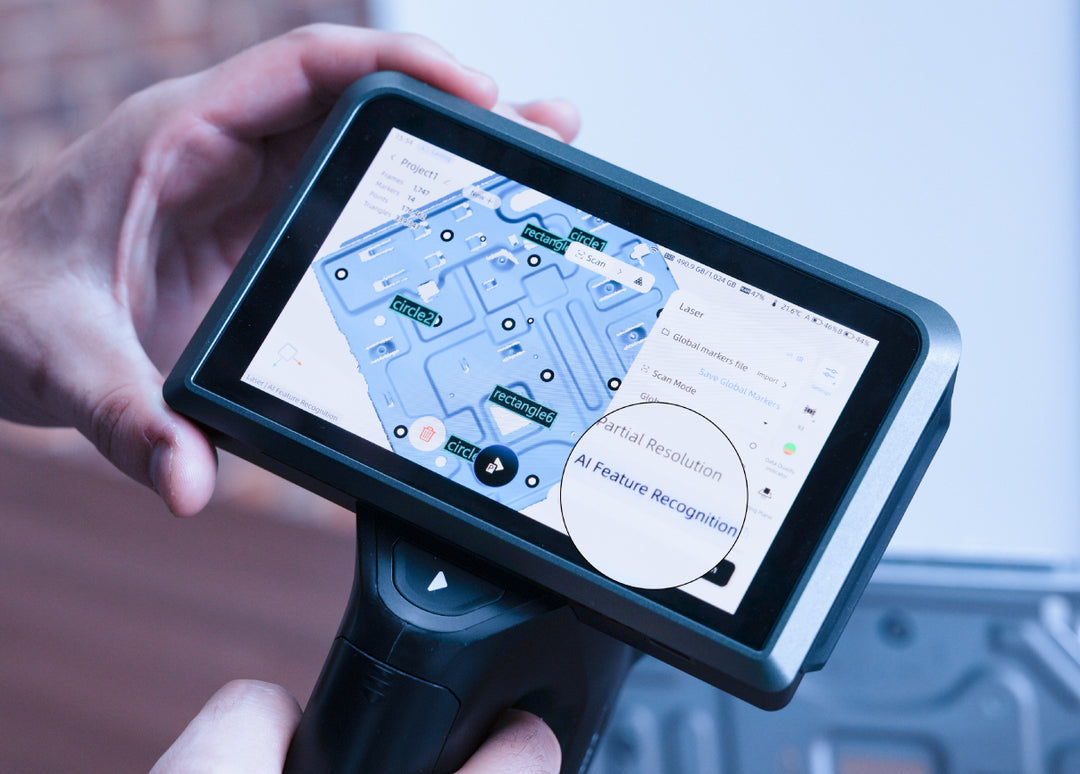

AI Feature Recognition
Intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes, and slots, ensuring high quality and high-accuracy data capture.
Flexible Expansion for Evolving Needs
FreeScan Omni is a fully integrated, on-device scan-to-inspect solution that completes scanning, inspection, and reporting in one flagship configuration.
FreeScan Omni Lite shares the same hardware foundation as FreeScan Omni, delivering certified accuracy, and high-performance scanning. As application needs evolve, FreeScan Omni Lite can be expanded with dedicated modules.
Engineered for On-Site Quality Control
- Certified metrology accuracy: Verified according to VDI/VDE 2634 Part 3 and aligned with ISO 10360 technical standards, ensuring consistent, traceable measurement results (0.02 + 0.03 mm/m) in any on-site environment.
- Blazing-fast computing processor: Powered by a high-performance processor, FreeScan Omni Series leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.

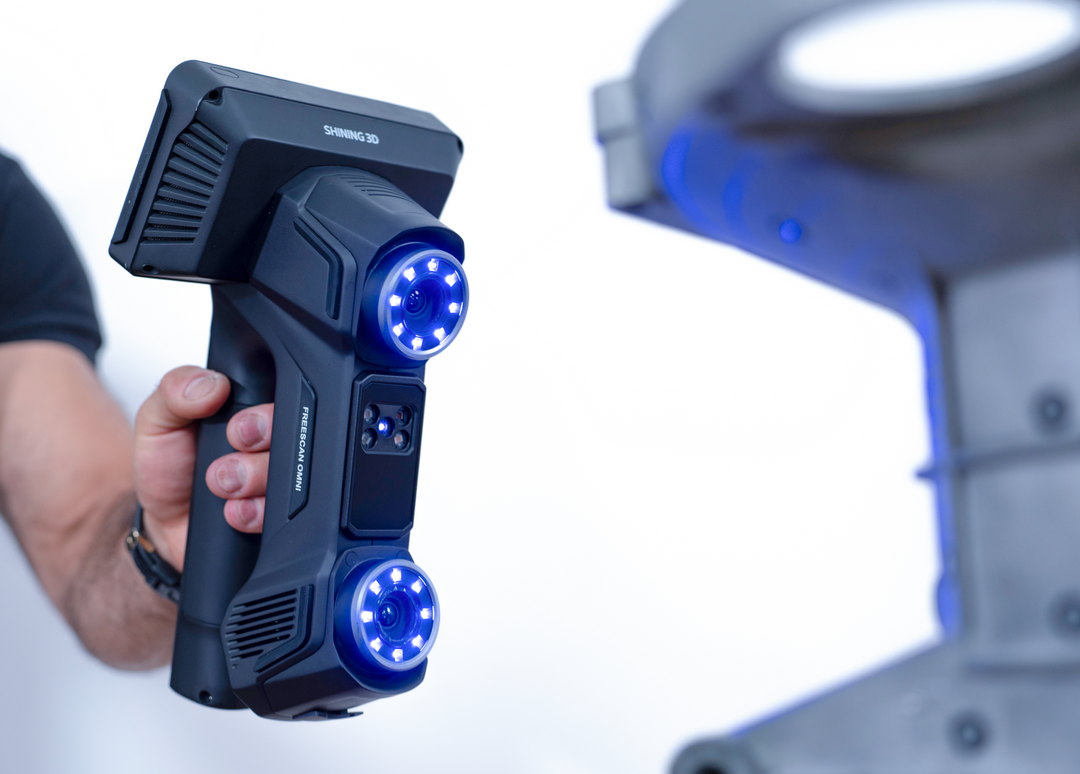

Power without Limits
FreeScan Omni Series delivers a fully wireless experience, eliminating power cords and data cables. Scanning, processing, and inspection run entirely on the device. Detachable battery packs enable seamless swaps without downtime.

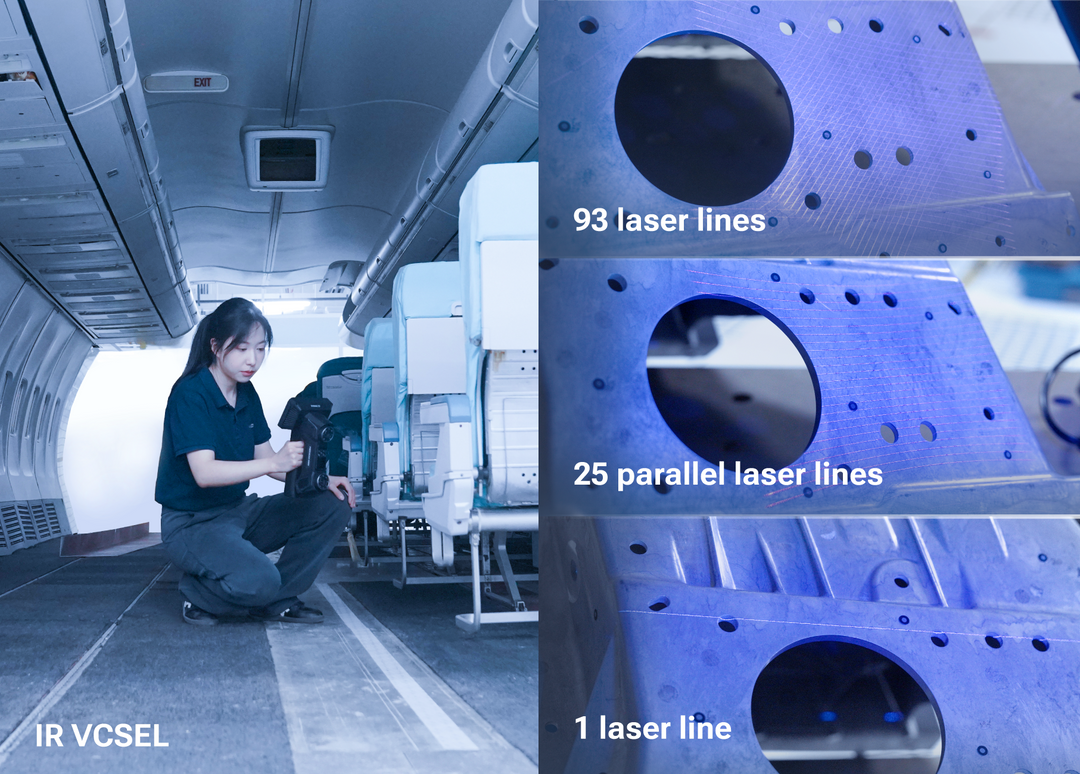

Multiple Scanning Modes for Industrial Usage
- High-speed scan mode with 93 laser lines for overall scans
- Detailed scan mode with 25 parallel laser lines
- Deep pockets scan mode with 1 laser line
- IR rapid scan mode for quick scans without markers

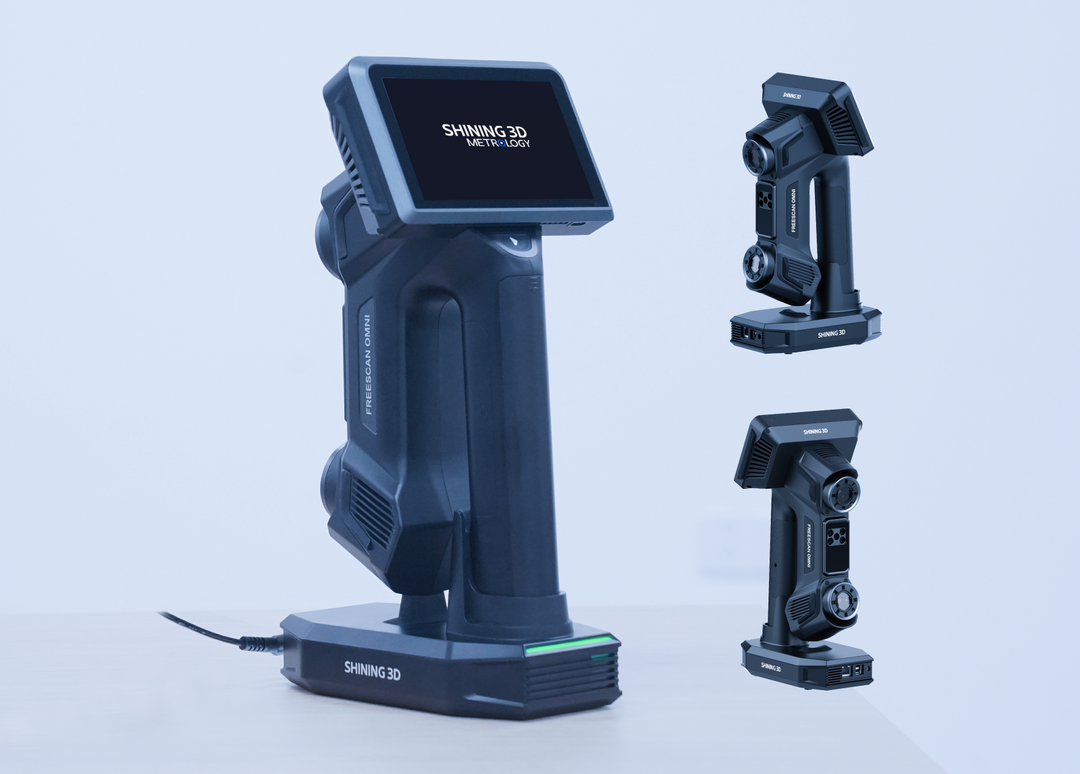

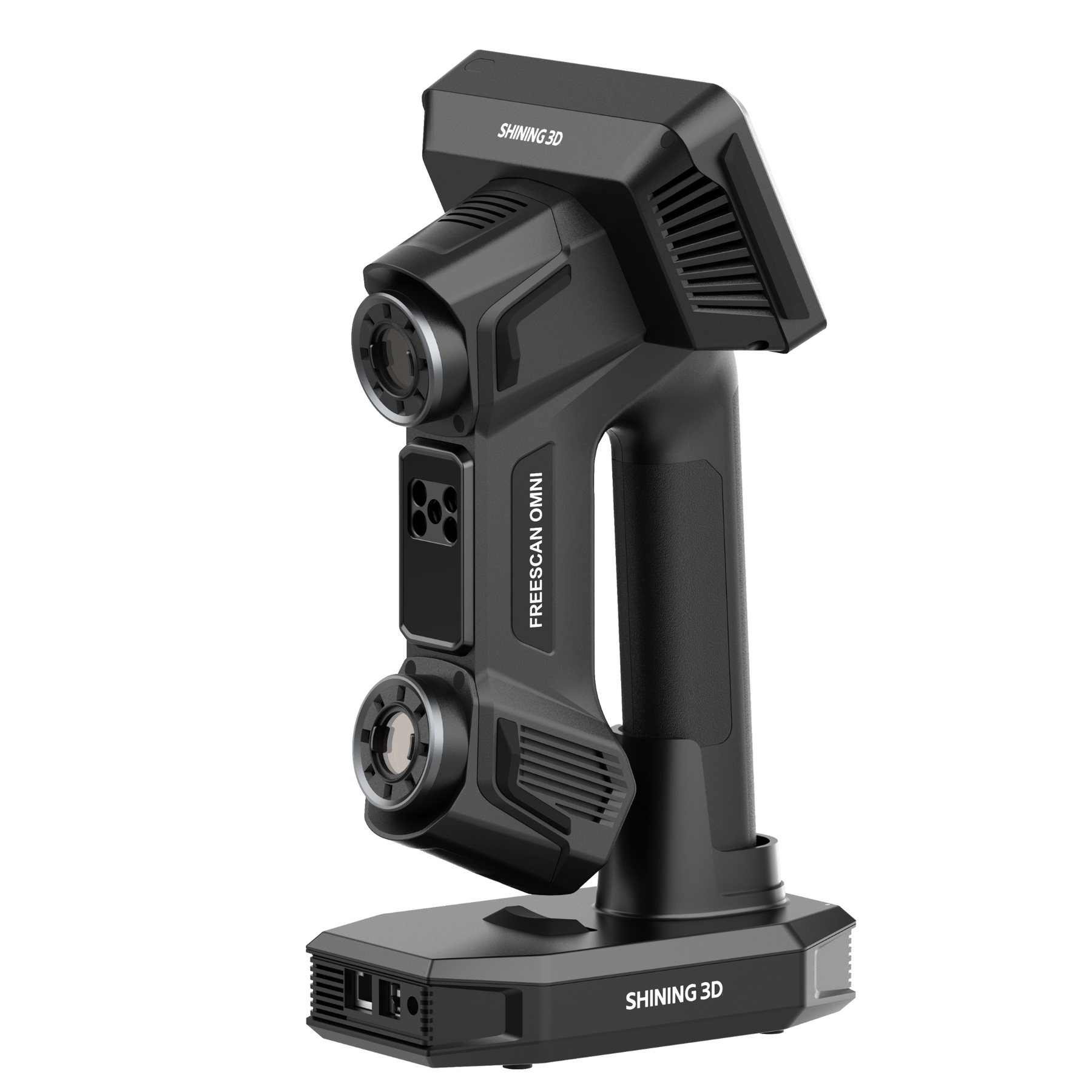

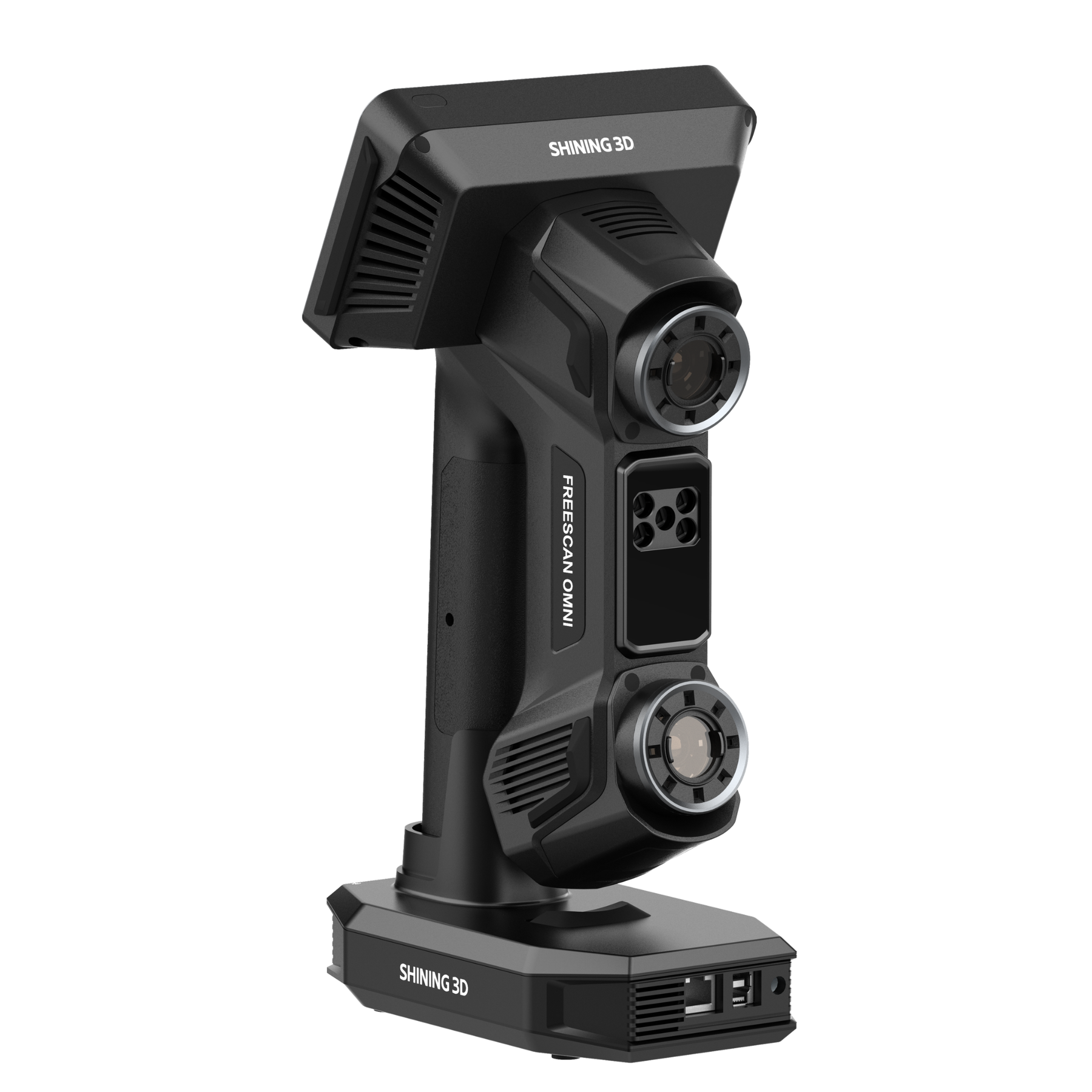

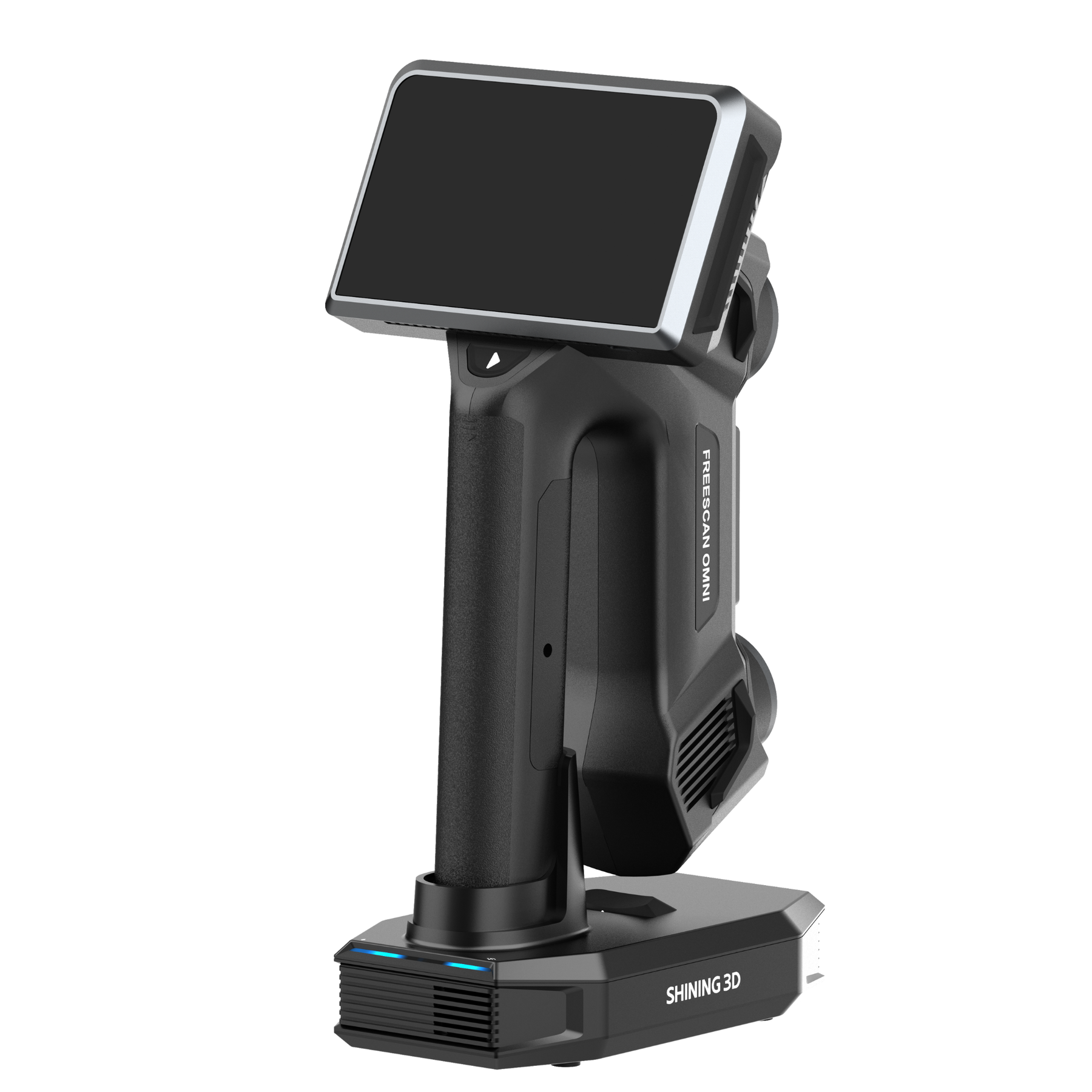

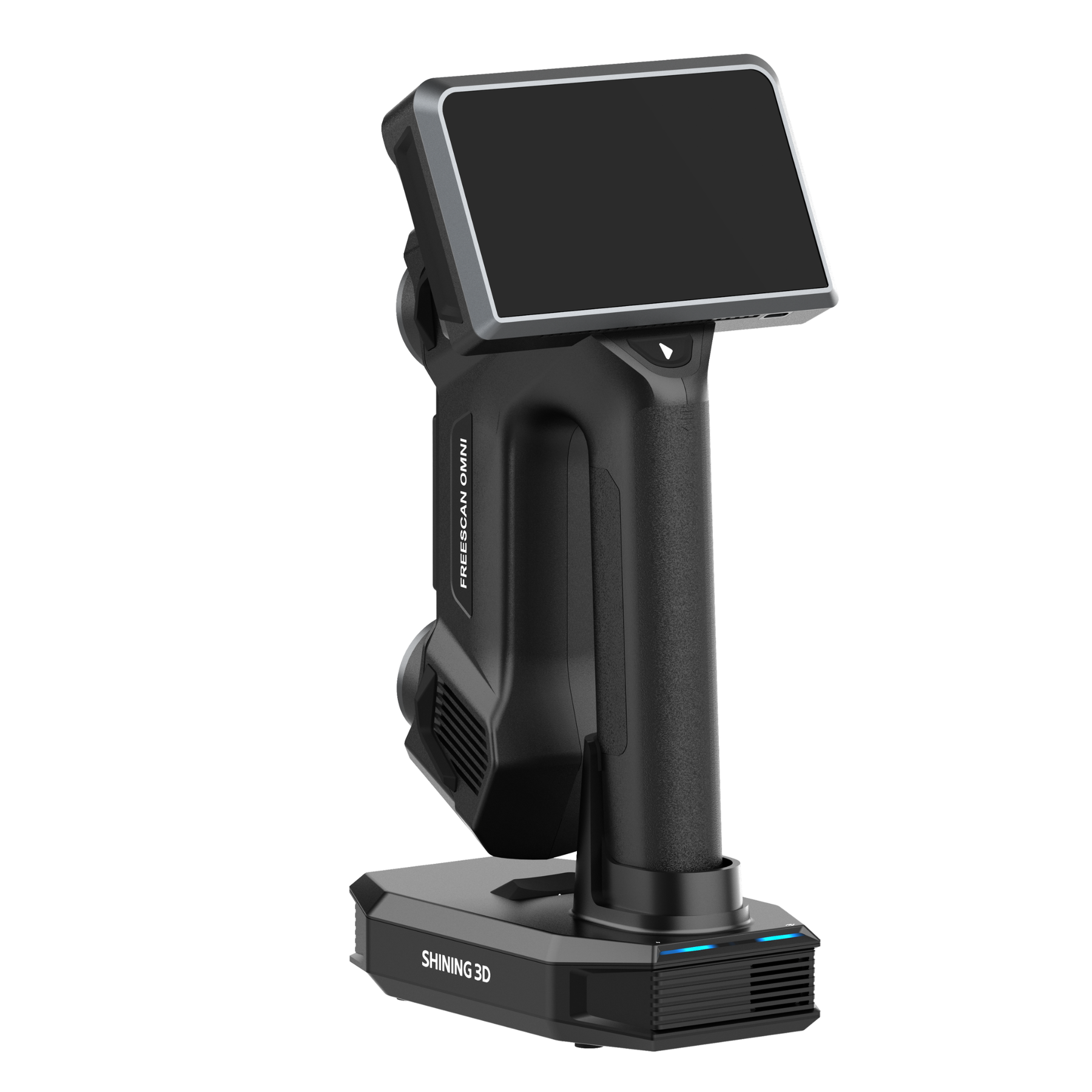

Power & Wi-Fi Set in One Dock
- Quick power boost — always ready to go.
- Auto network setup — just dock once to connect.
3D Model Gallery
Frequently Asked Questions
FreeScan Omni requires 4 batteries to operate. Each package includes 8 rechargeable batteries, allowing for continuous scanning of up to 1 hour per set. Thanks to its hot-swappable battery design, you can replace batteries without shutting down the device, enabling uninterrupted scanning.
FreeScan Omni comes with a validated scale bar in the package that being integrated with SHINING 3D video photogrammetry technology to verify markers in real time, which is also reusable for multiple times to improve overall accuracy for large object scans.
Yes, SHINING 3D will continuously maintain and update the SHINING 3D Inspect software and bring new features and improvements, ensuring the software remains powerful and up to date. All FreeScan Omni customers will receive these updates.
Yes. The scanner features wireless transmission modules, reducing on-site wiring and enhancing flexibility for mobile measurement.
No. Wireless connectivity handles only data transmission and does not affect the accuracy.
Yes. The scanner provides inspection reports and calibration certificates traceable to international standards such as VDI/VDE 2634 and ISO 10360 (subject to the actual certificates issued). All calibration and verification procedures are performed in SHINING 3D’s accredited Accuracy Lab, which operates in accordance with ISO/IEC 17025 requirements.
SHINING 3D scanners are calibrated using certified artifacts or calibration panels traceable to metrology standards. Regular calibration ensures measurement traceability, maintains accuracy, and aligns the scanner with quality management requirements.
FreeScan Omni supports blue laser and IR VCSEL for data acquisition.
Blue laser: Low sensitivity to ambient light and surface reflectivity. It is well suited for industrial inspection and high-accuracy applications.
IR VCSEL: Efficient for large objects, infrared light remains invisible during scanning, enabling comfortable facial or body scanning.
