Shining 3D
FreeScan Combo | Combo +

Metrology-Grade 3D Scanner

FreeScan Combo and Combo+ adopt metrology-grade accuracy, fine scanning and high precision from the FreeScan series, while providing an even lighter and more compact design. The Combo features 26 + 7 + 1 blue laser lines and an infrared scanning mode, while the Combo+ increases the 26 lines to an incredible 50 lines. Considering speed, versatility and accuracy, these high-performance 3D metrology solutions can meet the needs of different scanning scenarios such as metrology-grade inspection, reverse engineering and further applications.

FreeScan Combo | Combo+

  • Light Source -- Blue Laser + Infrared VCSEL
  • Accuracy -- Up to 0.02 mm
  • Weight -- 620g
  • Compact Size -- 193mm x 63mm x 53mm

The FreeScan Combo and Combo+ have a compact size with stereoscopic cameras set closer together at an optimized camera angle allowing it to pick up detail in narrow spaces.

Scanning Speed

The FreeScan Combo can achieve a scanning speed of 1,860,000 points per second using the laser scan mode and a speed of 2,250,000 points per second utilizing infrared mode, whereas the Combo+ has a scanning speed of 3,600,000 points/s. Freescan Combo and Combo+ deliver high accuracy according to VDI-VDE 2634-2 of 0.02 mm while capturing a vast amount of data per second.

Versatility

The different scanning modes include:

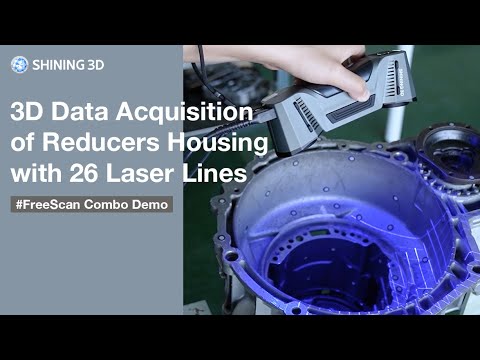

  • 26 laser lines suitable for easy and large size laser scanning (50 lines - Combo+)
  • 7 parallel laser lines for scanning fine details such as raised/embossed text
  • 1 single laser line to obtain 3D data from deeper holes and gaps
  • Infrared mode can scan without markers

Intuitive and free scanning software

The FreeScan Combo and Combo+ provide an easy workflow, powerful and user-friendly software. The software integrates connections to the more commonly used 3D inspection and design software, allowing the scan data to be imported more efficiently.

SPECIFICATIONS

Scan Mode VCSEL Infrared Scan Laser Scan
Scan Accuracy Up to 0.05 mm Up to 0.02 mm
Volumetric Accuracy* 0.05+0.1 mm/m 0.02+0.033 mm/m
Point Distance 0.1 mm - 3 mm

0.05 mm - 3mm

0.01-0.04 mm partial-HD mode

Light Source Infrared Light, Invisible

Blue Lasers

26 Blue Laser Lines (FreeScan Combo)

50 Blue Laser Lines (FreeScan Combo+)

7 Parallel Blue Laser Lines for fine scanning details

1 Single Blue Laser Line for deep hole scanning

Scan & Align Speed 120 FPS+

120 FPS+  1,860,000 points/s (FreeScan Combo)

3,600,000 points/s (FreeScan Combo+)

Align Modes Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment Markers Alignment
Scan Depth Maximum 1240 mm 360 mm
Maximum FOV 520 mm x 510 mm 600 mm x 600 mm
Texture Scan No No
Safety Infrared Light (eye-safe) Class II (eye safe) Laser
Output Formats OBJ, STL, ASC, PLY, P3, 3MF
Built-in Color Camera No
Dimensions 193x63x53mm (7.6"x2.5"x2")
Scanner Body Weight 620g
Operating Temperature Range -20~40°C
Operating Humidity Range 10-90%
Supported OS Windows 10/11 (64-bit)
Recommended Configuration Recommended Minimum Configuration

OS: Win 10/11, 64-bit;

Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060;

Video memory: 6GB or more;

Processor: i7-10700;

Memory: 32GB or more

Processor: Intel Core i7-8700 or higher:

Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GTX 1080

Video Memory: 4 GB minimum VRAM and 32 GB minimum RAM

USB 3.0 connection

Power Input 12V, 5.0A
Warranty 1 year manufacturer warranty
Certification CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is reduced by 0.1 mm per 100 cm (standard scan & body scan). The conclusion is obtained by measuring the center of sphere under market alignment.

Compact & portable

This metrology-grade scanner has an ergonomic and compact design. With a size of 193 mm × 63 mm × 53 mm and a weight of 620 g, the FreeScan Combo comes as an easy-to-use and versatile scanner.
Versatility

FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner
FreeScan Combo | Combo+ 3D Scanner

FreeScan Combo | Combo+ 3D Scanner

Style
Regular price$16,499.00
/
