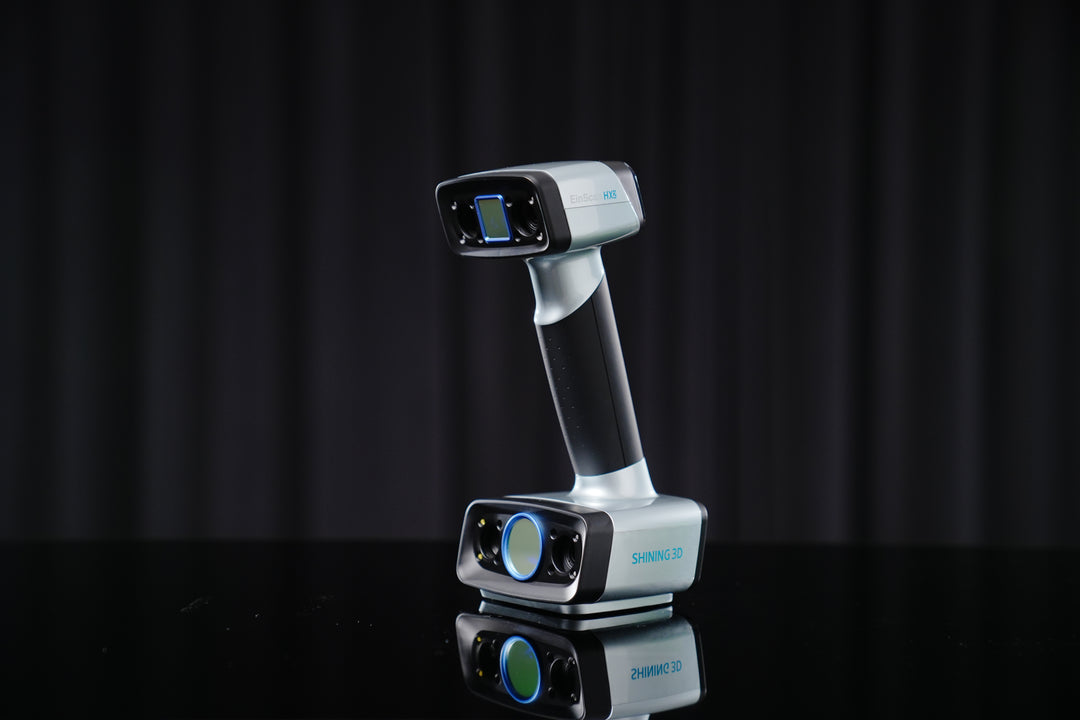

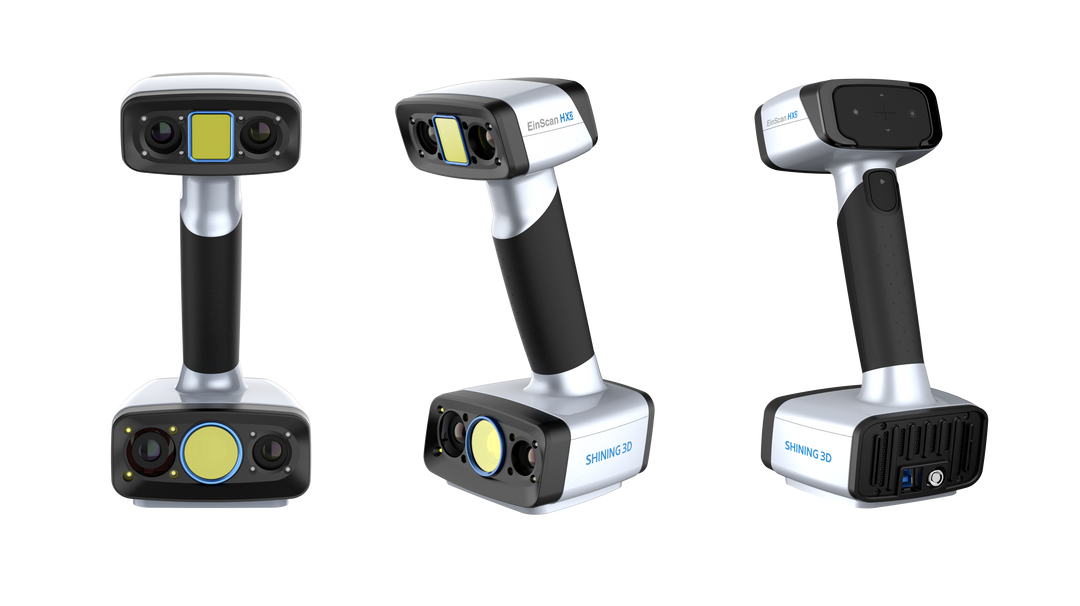

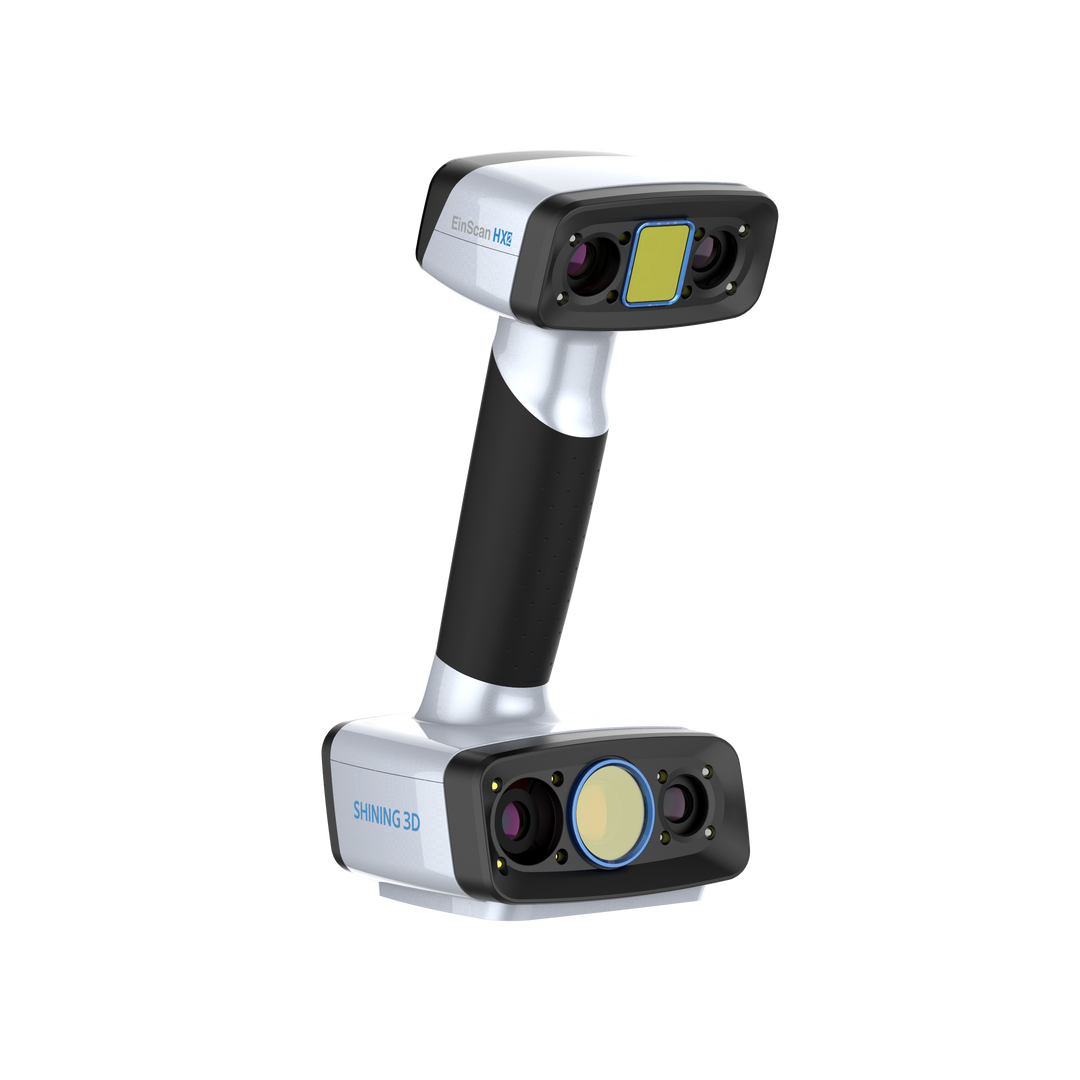

EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source
EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source
EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source
EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source
EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source

EinScan HX2 Handheld 3D Scanner - Hybrid Blue Laser & LED Light Source

Regular price$9,999.00
/
• 60+% faster laser scanning compared to HX • Handheld Hybrid Blue Laser / Blue LED Scanner • Designed for dark and reflective objects • Scan large objects easily • Full color texture capture with Blue LED scanning • 0.04mm Accuracy • 0.05mm max resolution (point distance) Warranty Type: 1-Year Limited Warranty
Models

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


Scan Mode

Rapid Scan

Laser Scan

Scan Accuracy

Up to 0.05mm

Up to 0.04mm

Volumetric Accuracy*

0.05+0.1mm/m

0.04+0.06mm/m

Scan Speed

1,200,000 points/s
20FPS

1,600,000 points/s

120FPS

Camera Frame Rate

20FPS

120FPS

Align Mode

Feature Alignment/Markers Alignment/Texture Alignment/Hybrid Alignment

Markers Alignment

Working Distance

470mm

470mm

Depth of Field

200mm-700mm

350mm-610mm

Max FOV

420mm*440mm

380mm*400mm

Point Distance

0.25mm-3mm

0.05mm-3mm

Light Source

Blue LED

13 Blue Laser Crosses

Safety

Eye-safe

Class I(Eye-safe)

Built-in Color Camera

Yes

Texture Scan

Yes

No

Connection Standard

USB3.0

Output Formats

OBJ;STL;ASC;PLY;P3;3MF

Dimensions

108mmx110mmx237mm

Weight

710g

Certifications

CE,FCC,ROHS,WEEE,KC

Recommended Configuration

OS:Win10,64 bit;Graphics card:NVIDIA RTX2060 and higher;Video memory:=6G;Processor:I7-10870H;Memory:=32GB

* Volumetric accuracy refers to the relationship between 3D data accuracy and object size; the accuracy is

reduced by 0.1mm(rapid scan)/0.06mm(laser scan) per 100cm.The conclusion is obtained by measuring

the center of sphere under marker alignment.


Up to 120FPS scanning Speed

high efficiency

The EinScan HX2 has significantly enhanced the fluency and efficiency of the scanning process with an incredible 120FPS scanning speed, which is over 60% faster than the previous 55FPS of the EinScan HX.

This improvement allows for faster data acquisition and reduces scanning time.

13 Blue laser crossed lines

New Laser Projector

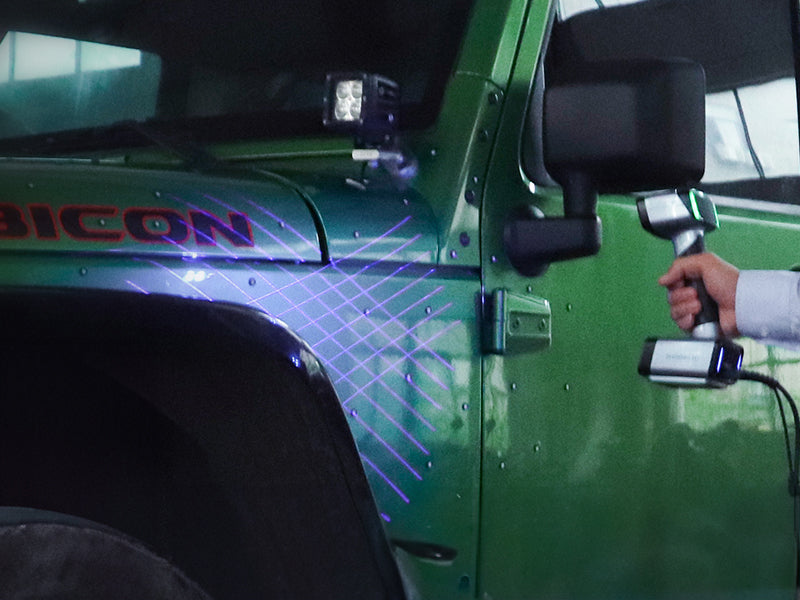

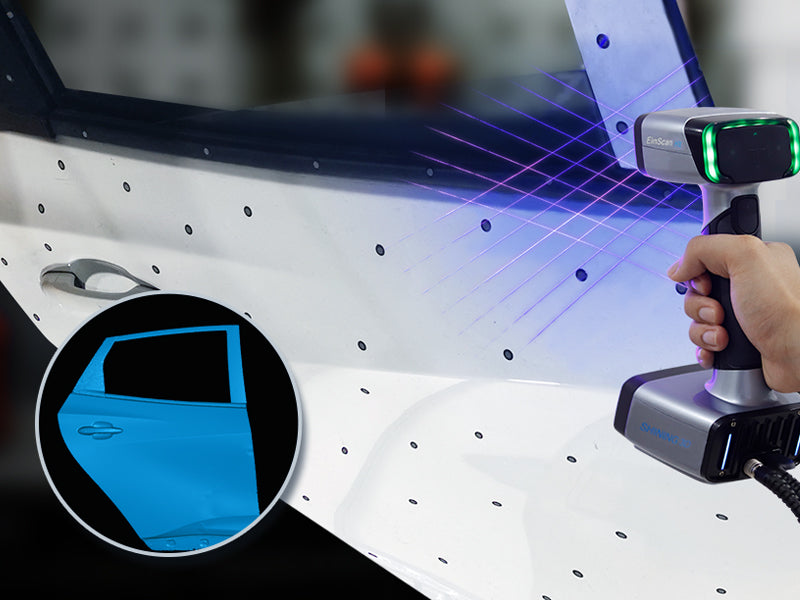

The EinScan HX2 features an increased number of laser lines, now totaling 13 crossed blue laser lines . The additional laser lines ensure superior performance when scanning complex geometries and reflective or dark surfaces.

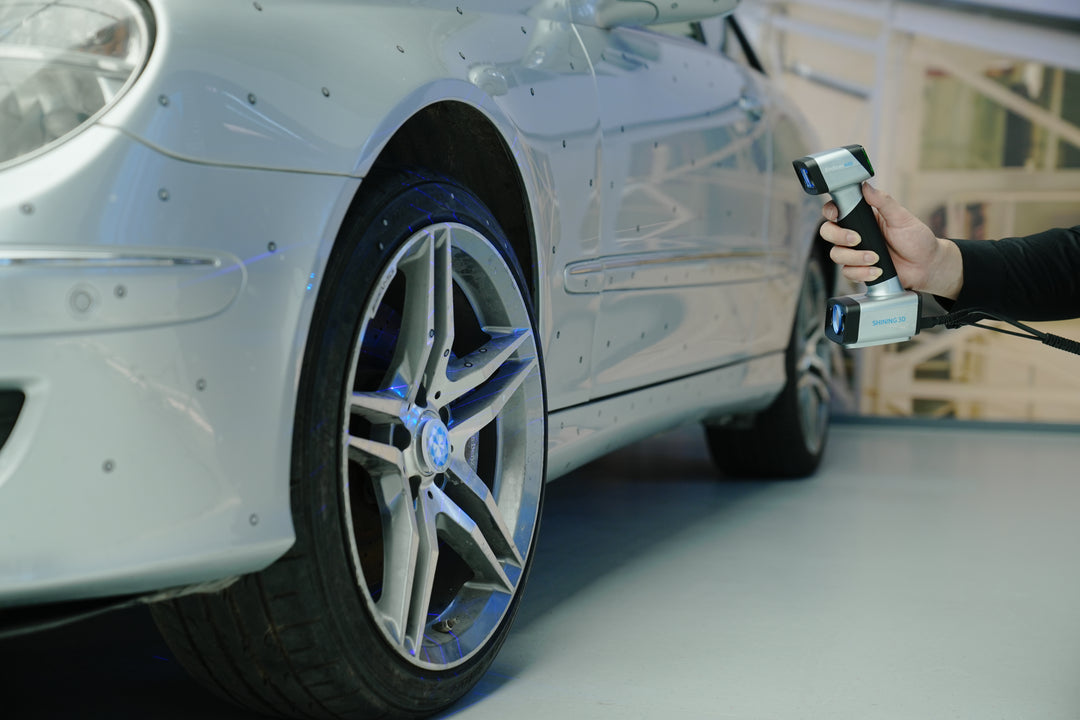

The EinScan HX2 builds on the success of the EinScan HX by increasing the number of blue laser crossed lines to 13 from 7. This increase in lines allows for scanning to be 60+% faster for fluid, accurate capture of the object surface. The hybrid laser and LED light sources make the EinScan HX2 compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable results give EinScan HX2 more application possibilities.

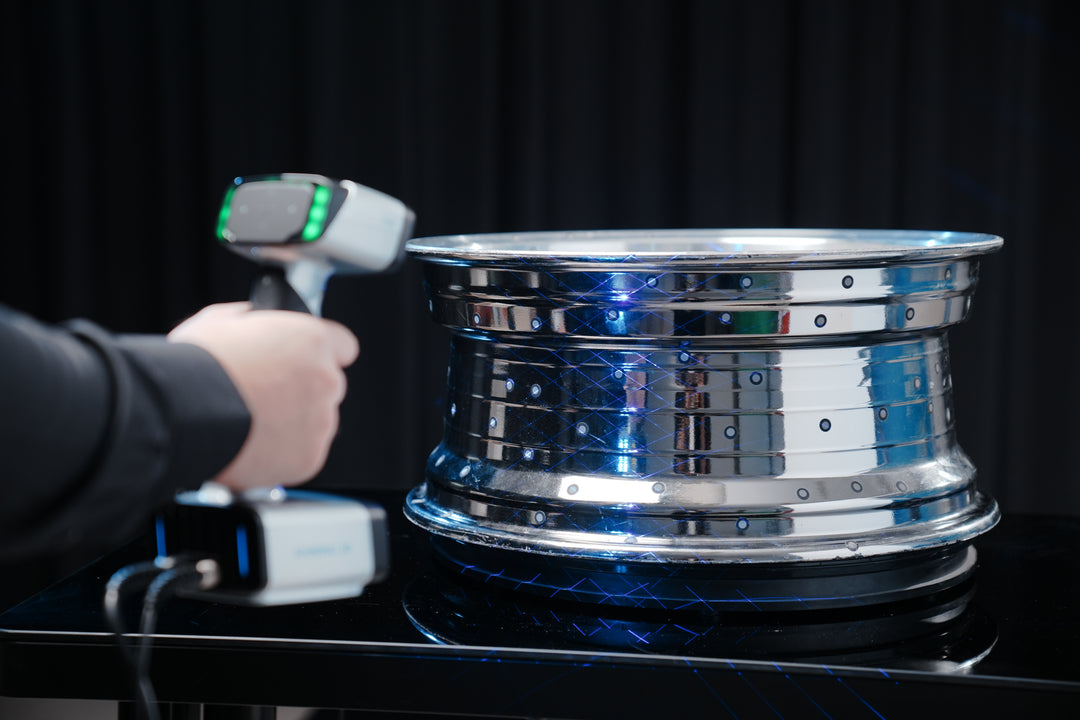

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring. - Minimum point distance 0.05 mm - Accuracy up to 0.04 mm under Laser Scan

The scan speed of the EinScan HX2 in laser mode is 1.6 million points/second at 120 FPS, which makes for smooth tracking during scanning.

EinScan HX2 is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portability and flexibility use of EinScan HX2 has been considered to its ergonomic design for a more efficient and comfortable scanning experience. - Ergonomic design and weight of 710g

With built-in color camera, it supports full color texture capturing and tracking by texture.

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

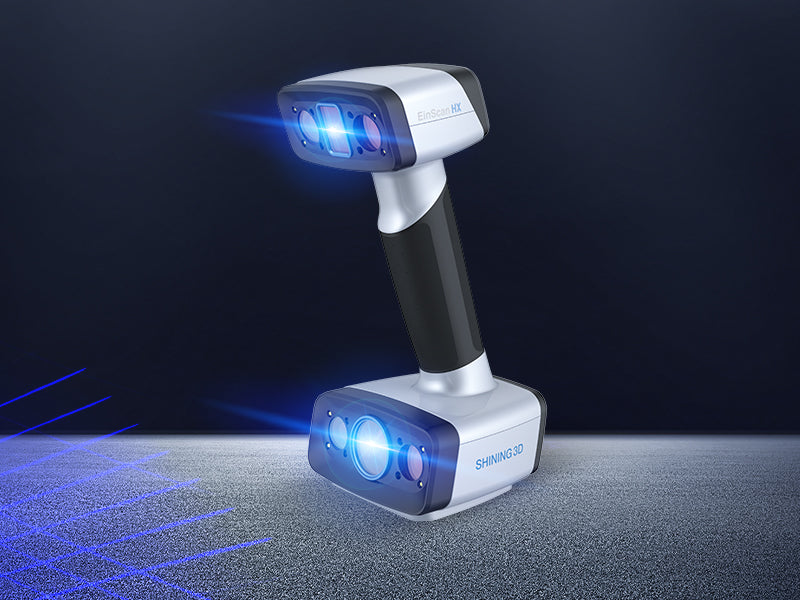

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, improves scanning materials adaptability with less limitaation for a wider range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, which is less sensitive to ambient light, gives better performance to reflective and dark color surface.

Reliable Results

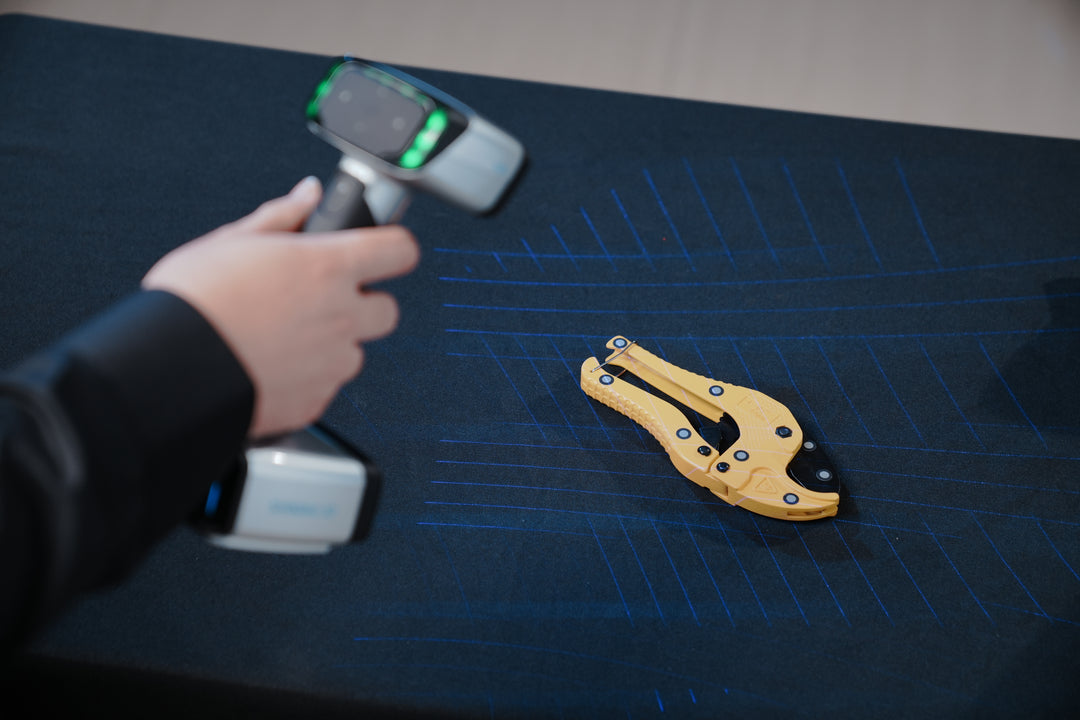

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

Minimum point distance 0.05mm
Accuracy up to 0.04mm under Laser Scan

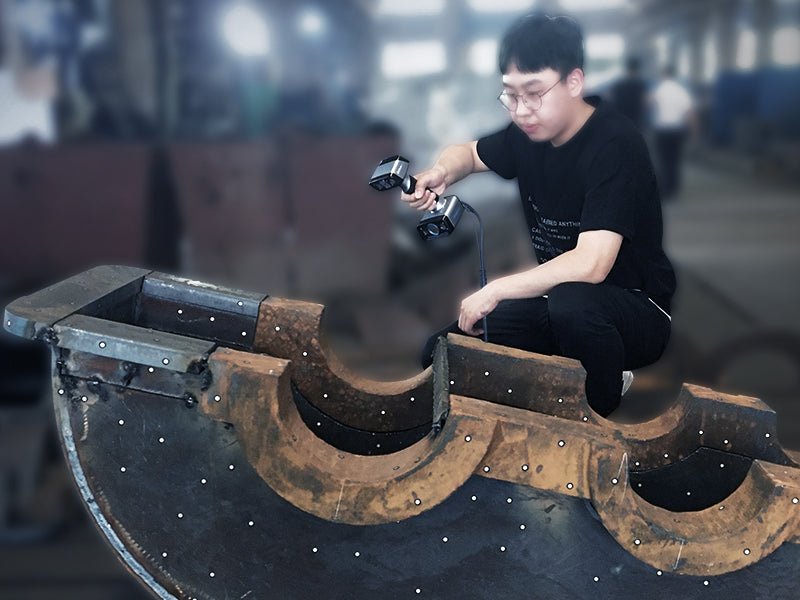

High Efficiency

Processing speed of the EinScan HX2 under Laser Mode is up to 1,600,000 points/s at an incredible 120 FPS.
In Rapid Mode, data is captured at 1,200,000 points/s for fast, effortless scanning in just minutes for reverse engineering, CAD/CAM, 3D printing, etc.

Portable & Easy Operation

EinScan HX is plug and play with user friendly software, which is easy to operate, no matter you are newbie or with professional experience in 3D scanning. The portabiliy and flexibility use of EinScan HX has been considered to its ergonomic design for a more efficient and comfortable scanning experience.

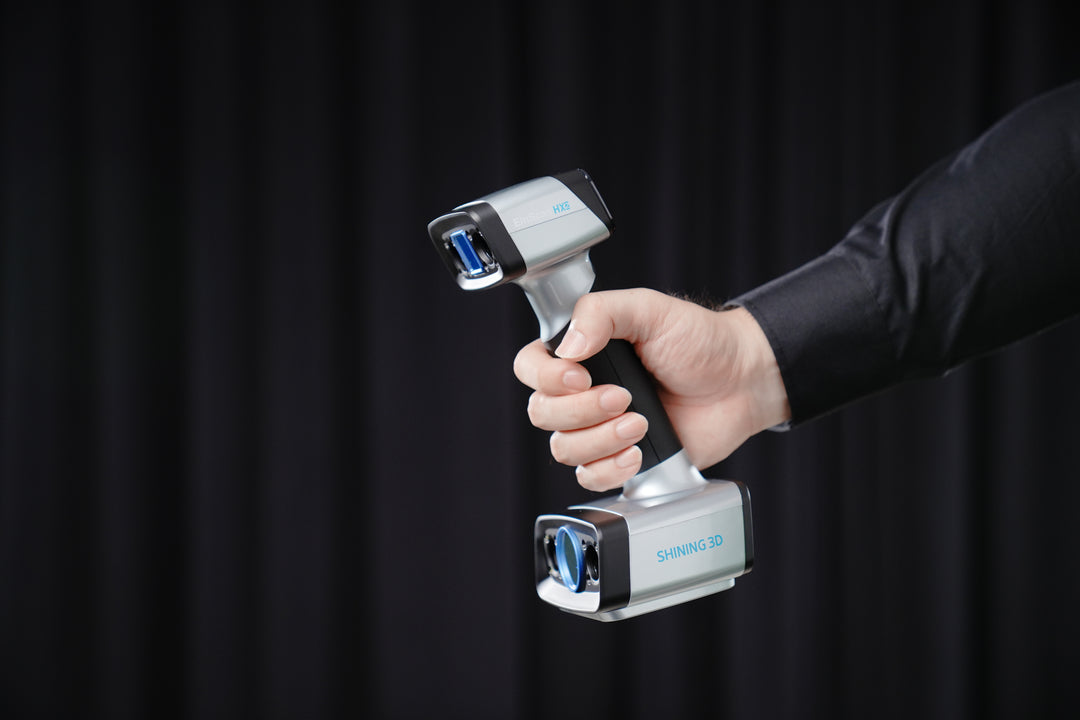

Ergonomic Design
Weight: 710g

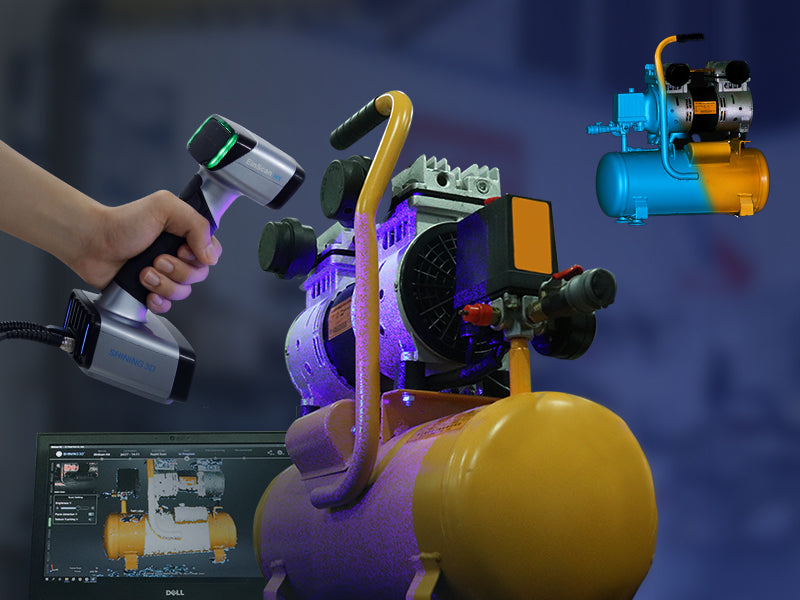

Full Color

With built-in color camera, it supports full color texture capturing and tracking by texture

EinScan HX2 Reverse Engineering Design Bundle

A hybrid light source 3D scanner + EXModel software with reverse engineering and CAD capabilities
