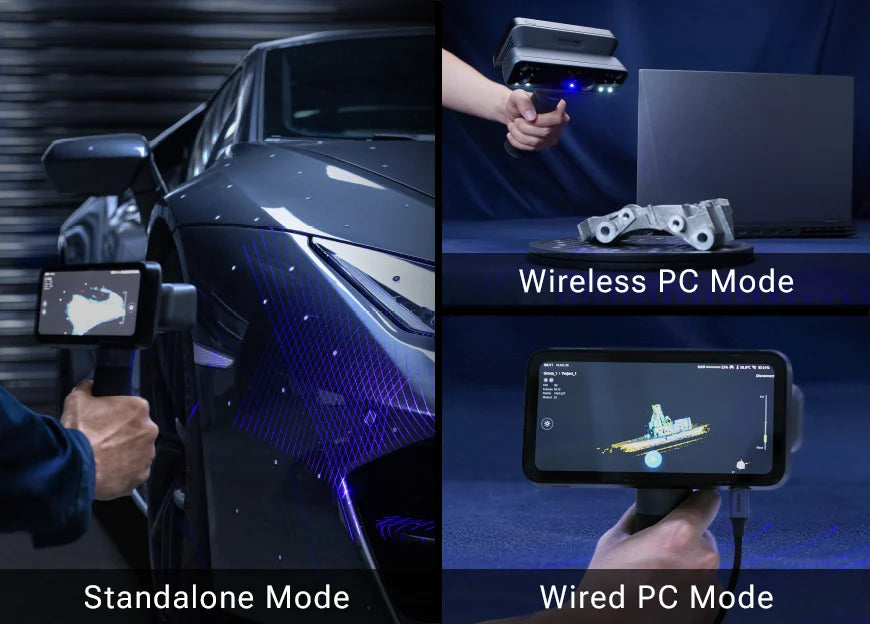

Triple Work Modes
The EinScan Rigil offers three operation modes to unlock max performance and flexibility.
- Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware
- Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes
- Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments

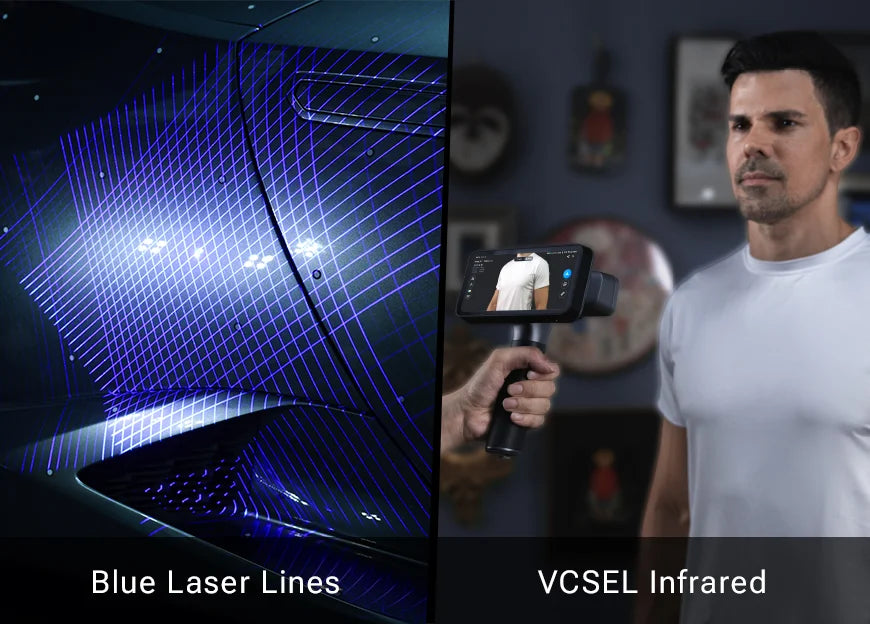

Hybrid Light Source
Two separate groups of cameras are specifically designed to capture different light sources respectively.
- Blue laser lines
- VCSEL infrared

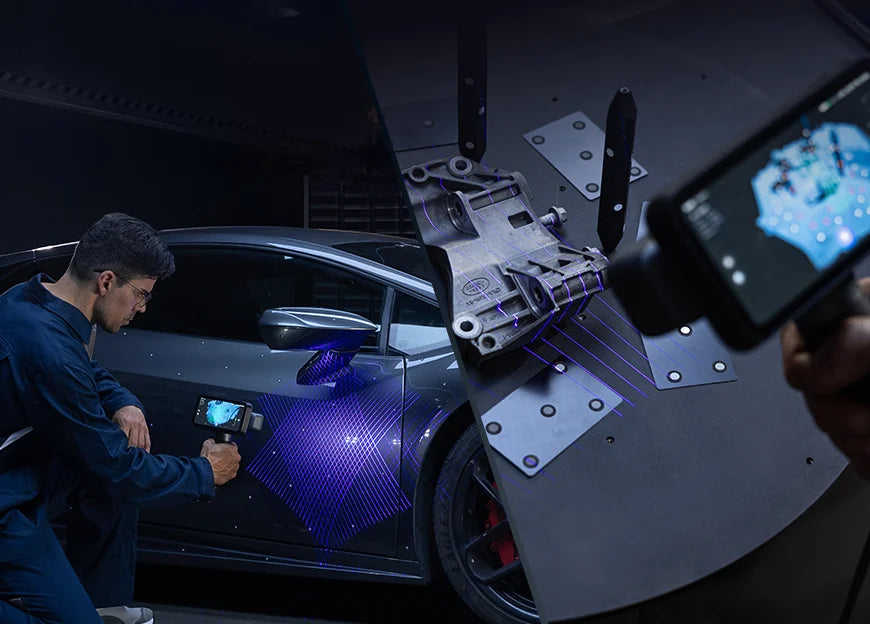

All modes on deck
Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm
- 19 + 19 crossed laser lines for high-speed scanning, delivers top-tier efficiency and flexibility
- 7 parallel laser lines for fine details, providing consistent results

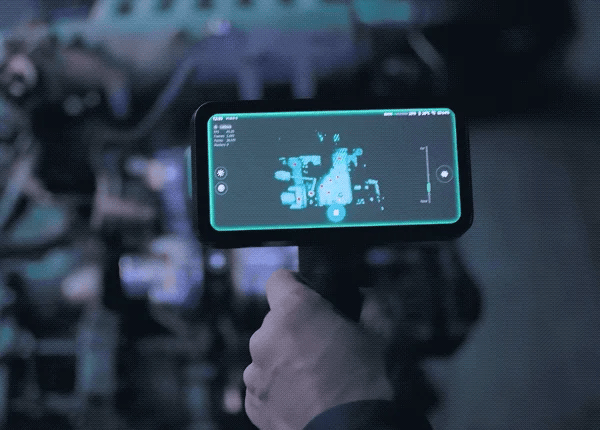

Dynamic Laser Switching
Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

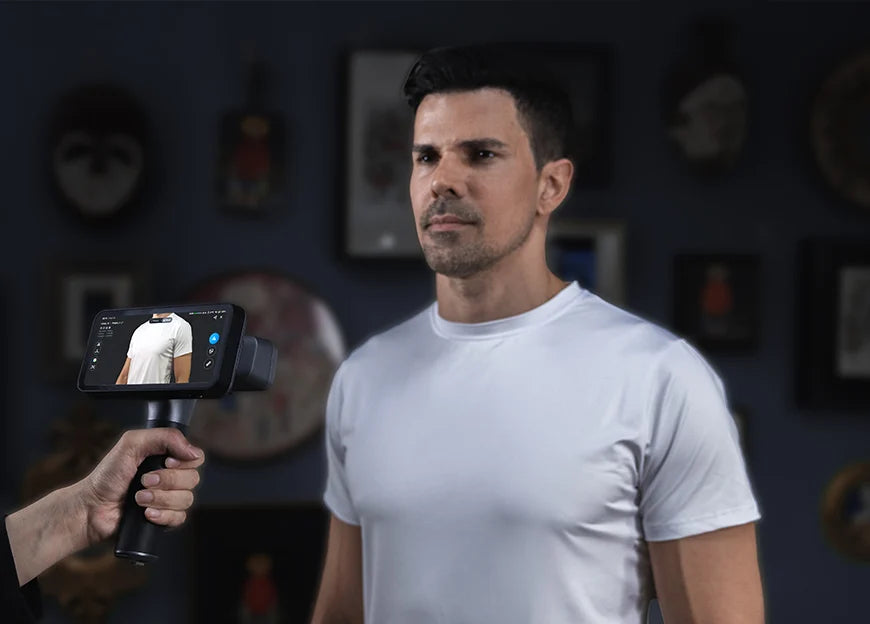

IR Rapid Mode
VCSEL Infrared-powered scanning solution for high efficiency and wide coverage of medium to large objects.
- Volumetric accuracy up to 0.1 + 0.3 mm/m
- Working distance 160 ~ 1500 mm
- Scanning speed up to 1,600,000 points/s

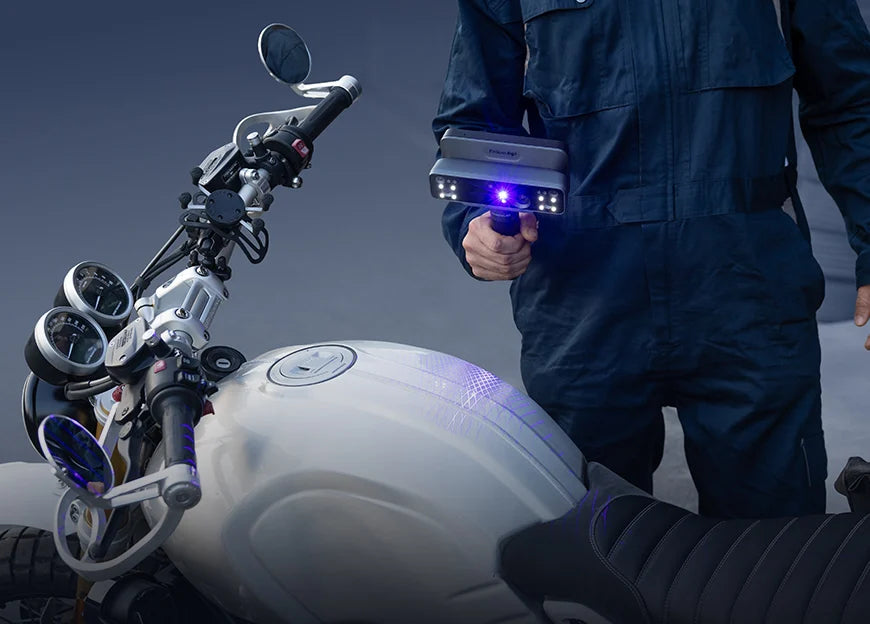

Marker-Free Laser Scanning
EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.

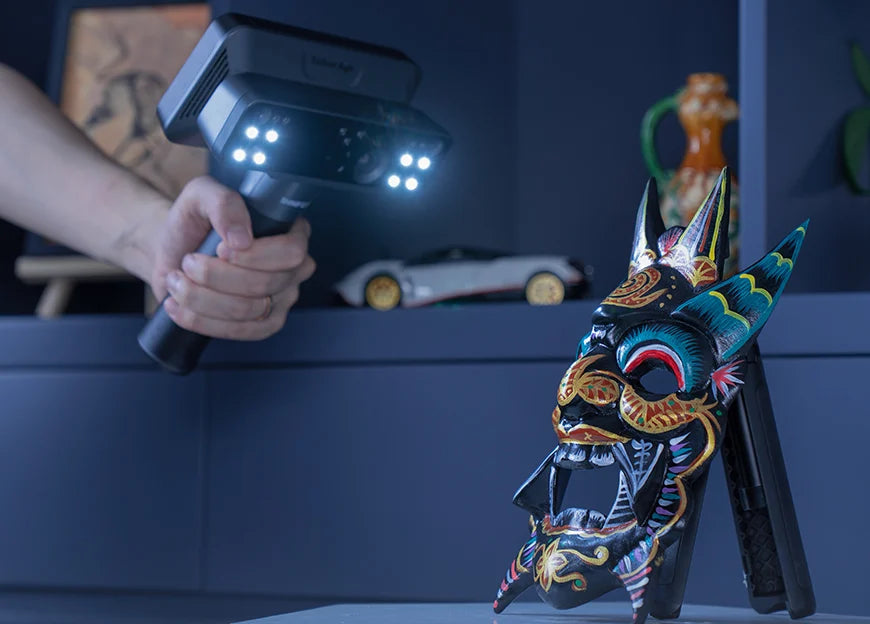

Full Color Texture Scanning
Equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

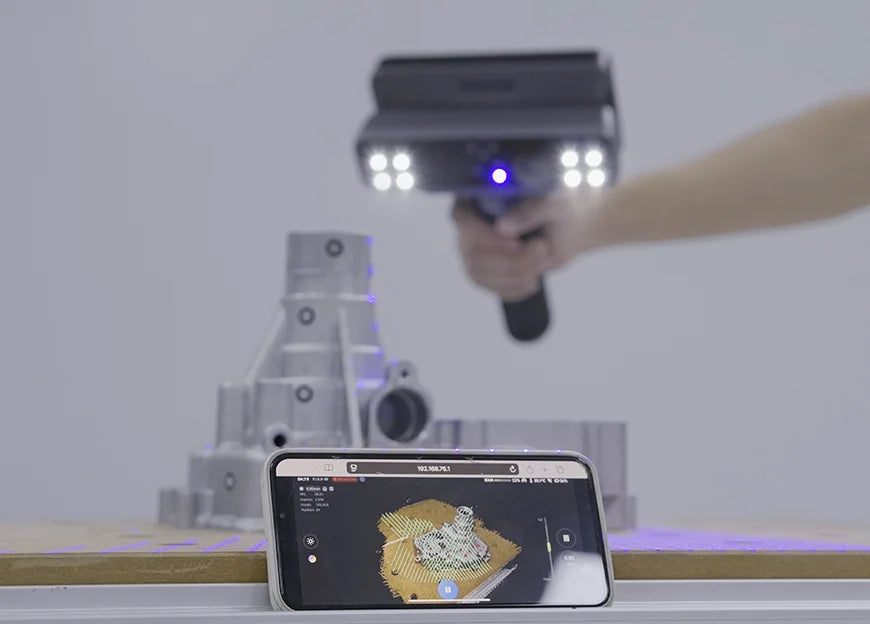

Wireless Workflow
- Wireless scanning without connecting to a PC
- Wireless transfer with data sharing to the SHINING 3D Cloud
- Wireless screen casting displays on a second screen

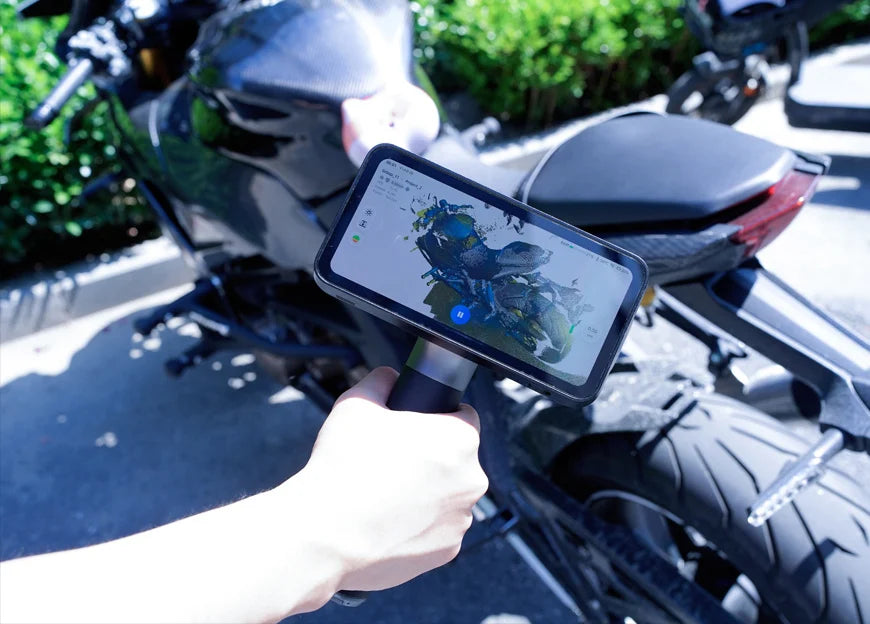

Reliable Scanning from Workshop to Outdoors
- Works efficiently outdoors in direct sunlight
- Adaptable for dark and reflective metal surfaces with spray

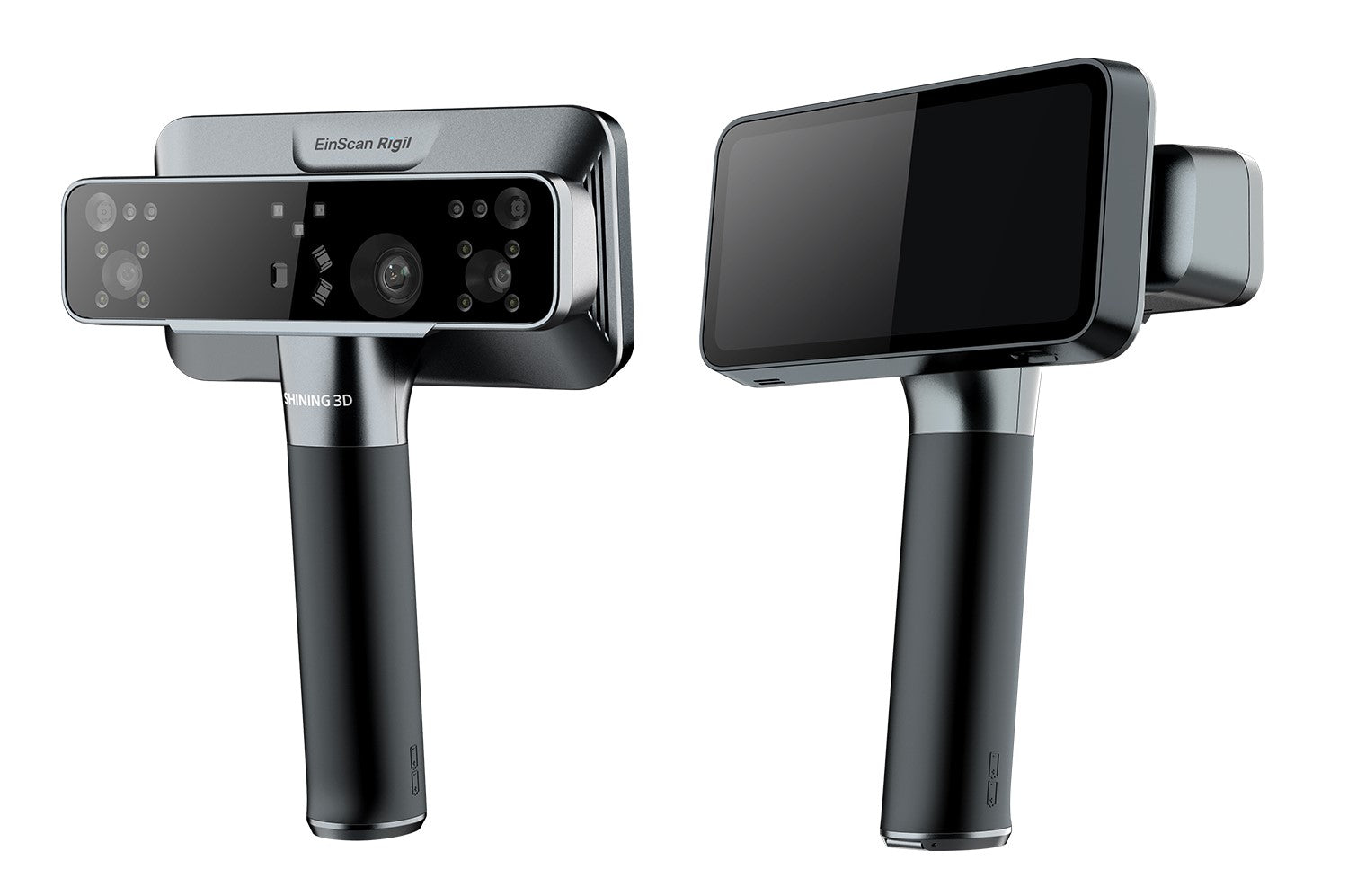

Powerful Hardware
- 6.4" 2K AMOLED Touch Screen
- 32GB DDR5 RAM
- 32GB eMMC + 1 TB SSD ROM
- 6000 mAh x 2 Replaceable Batteries
Einscan rigil app
EinScan Rigil App supports full scanning workflows on the device from calibration, scanning, data modification, closed surface generation, model editing, to export and sharing.
| Healthcare and Forensic | Cultural Heritage | Digital Art | Design | Education |
|---|

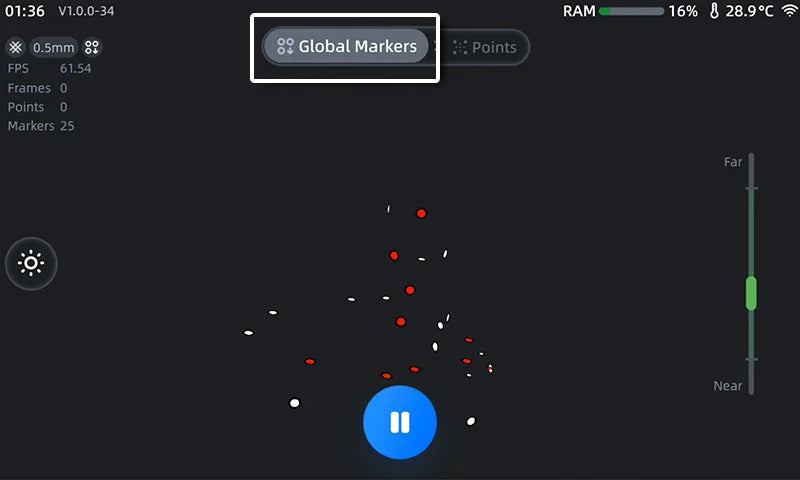

Global Marker Alignment

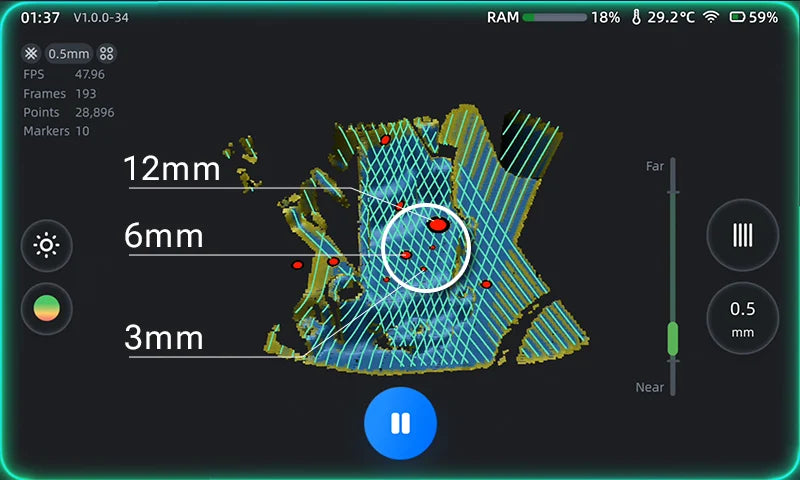

Multiple Types of Markers Supported - 3/6/12 mm

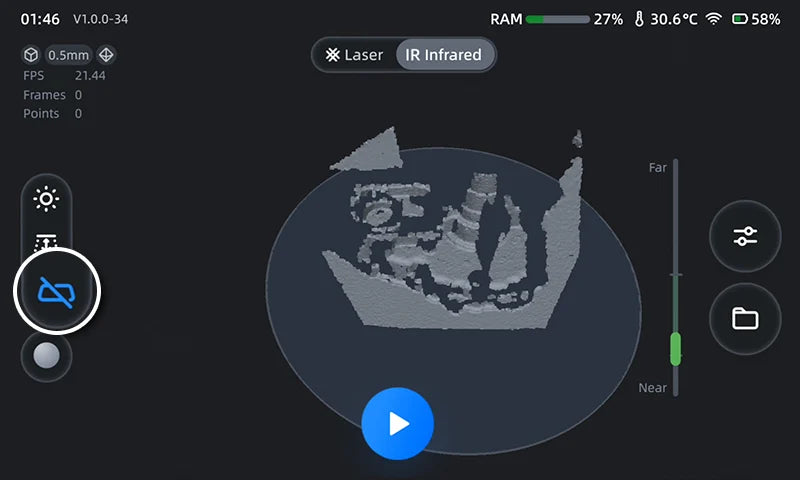

Auto Plane detection

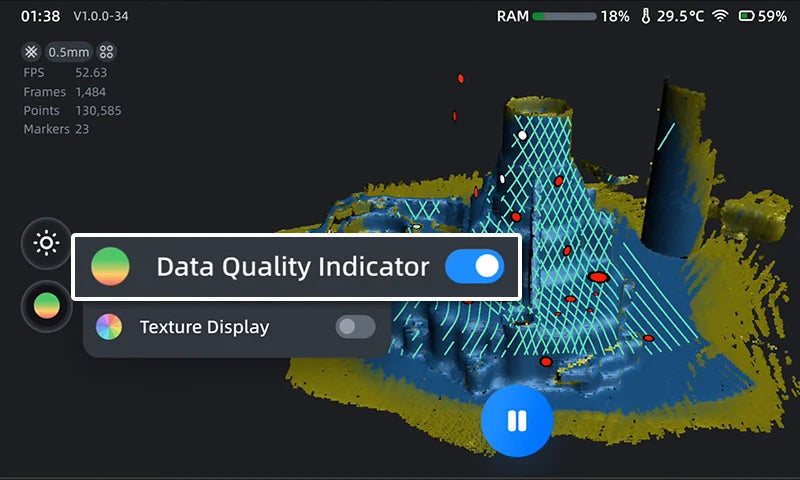

Data Quality Indicator

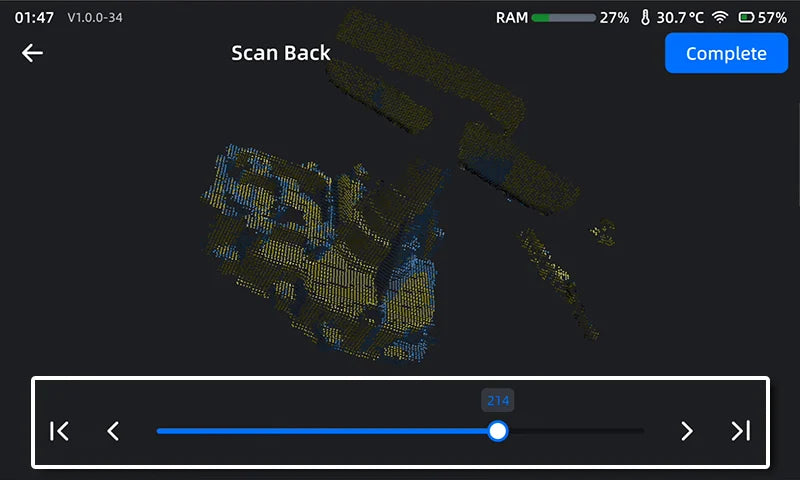

Scan Rewind

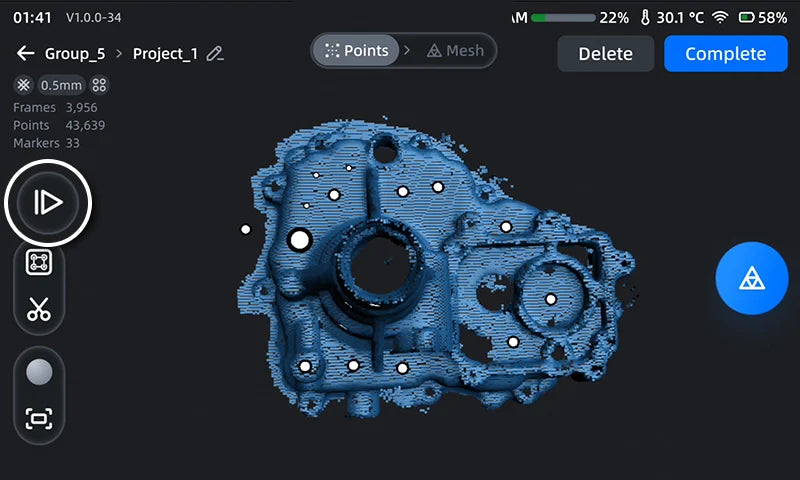

Resume Edited Data Scanning

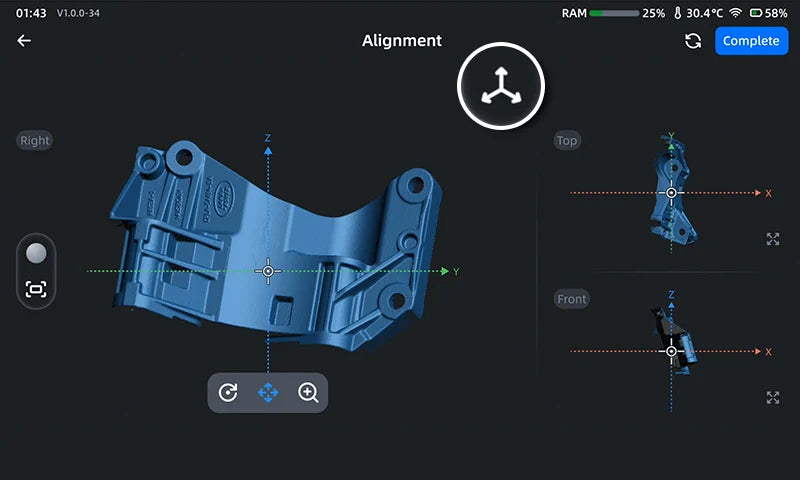

X-Y-Z System Alignment
