What Does It Do?

EXModel is a powerful bridge that simplifies CAD modeling from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform mesh into a professional quality CAD solid model in easy steps.

Seamlessly integrating with SHINING 3D scanners, EXModel Pro includes all EXModel features plus an all-in-one solution for converting mesh data into professional CAD solid models.

*Integrated with EXScan HX, FreeScan, and EXStar software, EXModel supports EinScan HX, FreeScan Combo Series, FreeScan UE Pro, and Einstar, with more SHINING 3D scanners coming soon.

Mesh Editing

EXModel's mesh editing tools are simple to use and make it easy to reduce data size while maintaining accuracy. You can easily fill in holes and remove mesh outliers to easily create watertight meshes for 3D printing or reverse engineering.

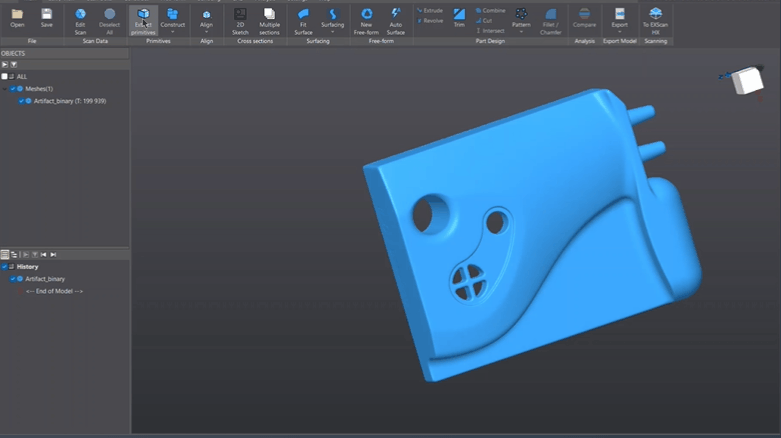

Primitives Extraction

EXModel quickly reconstructs planes, cylinders, cones, and spheres. Additionally, create reference geometries like lines and points for use in aligning meshes to the world coordinate system or to other scans.

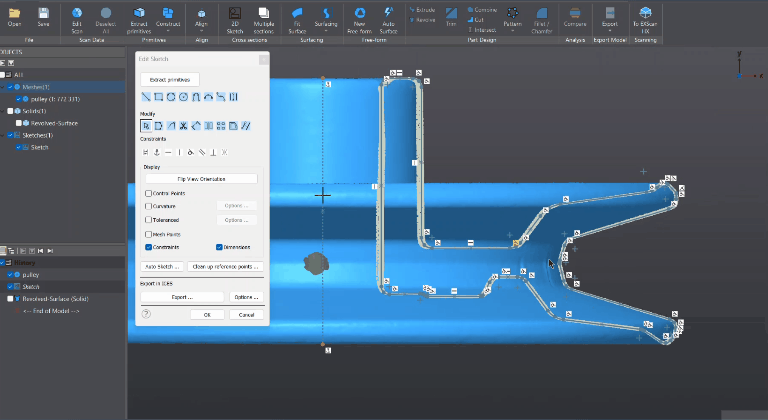

Constrained 2D Sketching

Use the dimensioning and constraint tools in EXModel Pro to create accurate sketches like in any other CAD package. Interactive cutting allows users to extract reference points for 2D sketches. At the same time, interactive creation can collaborate with world or CAD planes, or even cut surfaces of aligned curves. For even more power and efficiency, users can create multiple cutting surfaces at once.

*Available in EXModel Pro

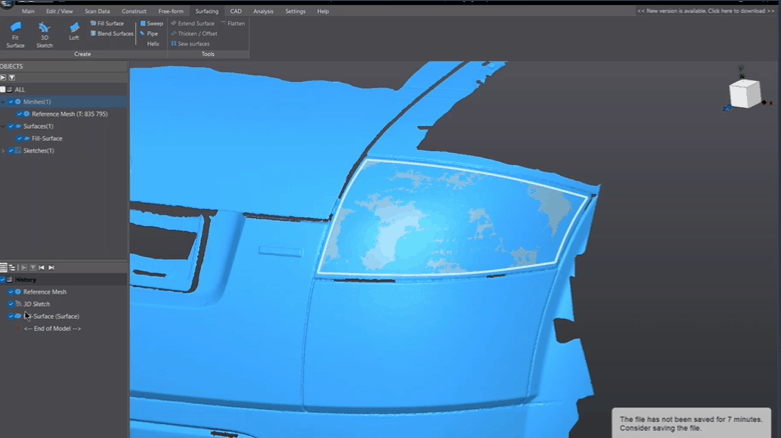

3D Sketching & Fill Surface

Draw freeform curves directly on the reference mesh and create blended curves ready for future use, including filled surfaces, free forms from 3D sketches, or any other CAD surface manipulation. You can also create bounded surfaces from 3D sketches and get the best base shapes for your reference data for more accurate results.

*Available in EXModel Pro

Free-form Modeling & Auto Surfacing

EXModel's mesh editing tools are simple to use and make it easy to reduce data size while maintaining accuracy. You can easily fill in holes and remove mesh outliers to easily create watertight meshes for 3D printing or reverse engineering.

Hybrid Modeling

In addition to being parametric for standard features, the software enables the creation of CAD models through a blend of free-form and prismatic features. Users have the flexibility to revisit and modify free-form surfaces if necessary, ensuring the ability to reconstruct results with ease.

*Available in EXModel Pro

EXModel Reverse Engineering Software
EXModel Reverse Engineering Software
EXModel Reverse Engineering Software

EXModel Reverse Engineering Software

Regular price$495.00
/
License type

EXModel Pro is a the full software package with CAD design capabilities.  This is a one-time, perpetual license.

EXModel Life is a one-time, perpetual license of the standard EXModel software.

EXModel 1YR and 3YR and one year and 3 year licenses of the standard EXModel software and will require renewal at the end of the license period.

All versions are single-seat licenses.
