How to Choose a
Metrology 3D Scanner

This guide breaks the selection process into practical steps so you can narrow down the right scanner faster.

Choosing a metrology 3D scanner is not about buying the most expensive system or chasing the highest spec on a brochure. The right scanner depends on what you need to measure, how accurate the data needs to be, where the scan will happen, and what you plan to do with the scan data afterward.

For quality control, reverse engineering, inspection, and industrial measurement, the best scanner is the one that fits your actual part, your tolerance requirements, and your workflow.

Step 1: Determine Your Object Size

The size of your component is the primary filter in the selection process.

Small Parts (< 500 mm): Objects require systems focused on capturing intricate internal cavities and fine geometry.

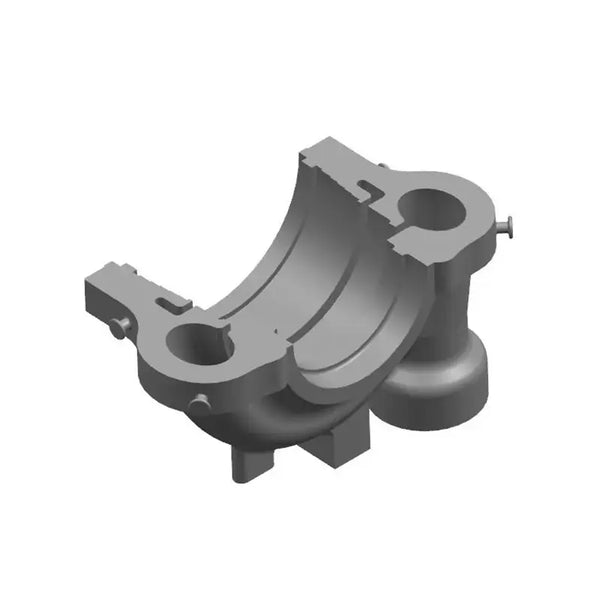

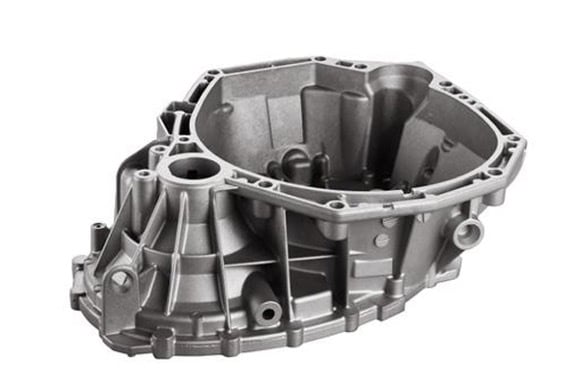

Casting Housing
(100 ~ 300 mm)

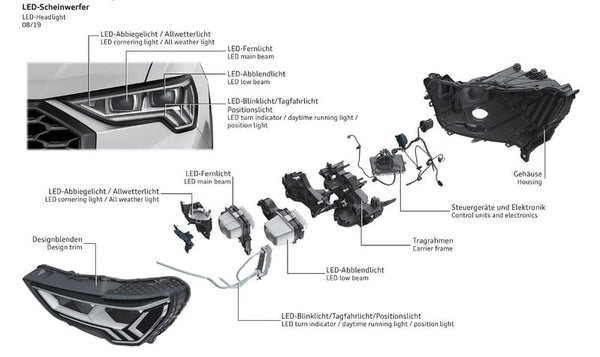

Lamp Components
(50 ~ 200 mm)

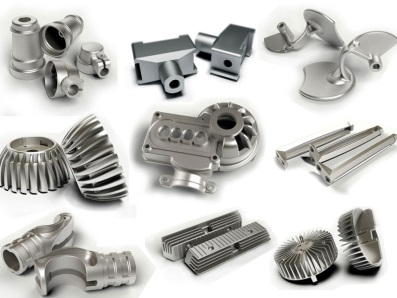

Small Mechanical Part
(20 ~ 120 mm)

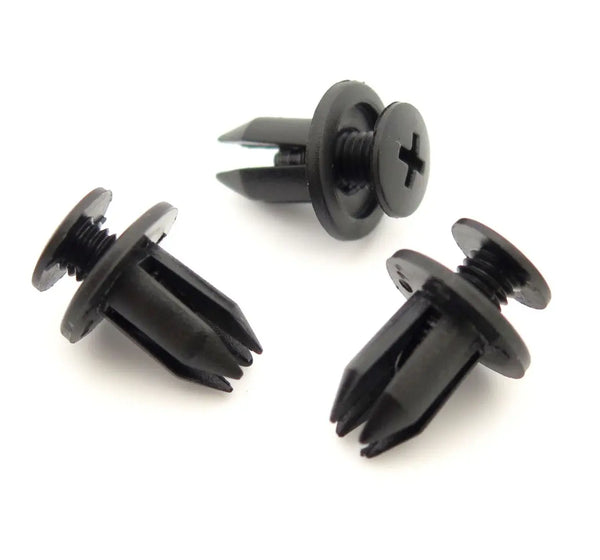

Plastic Clip / Connector
(10 ~ 100 mm)

Medium to Large Components (500 mm ～ 2500 mm): Assemblies feature complex surfaces, multiple textures, and large curved areas that require portable scanning solutions

Medium Sand Casting Parts
(500 ~ 1000 mm)

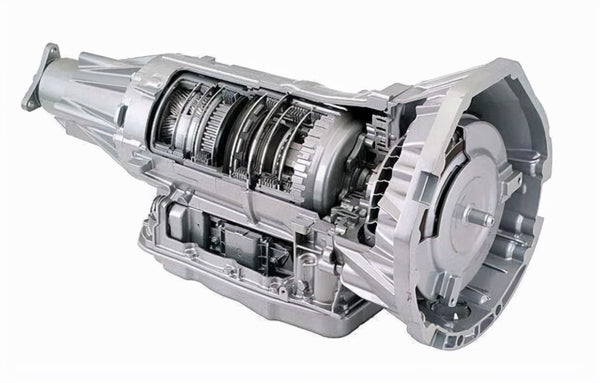

Car Gearbox
(500 ~ 800 mm)

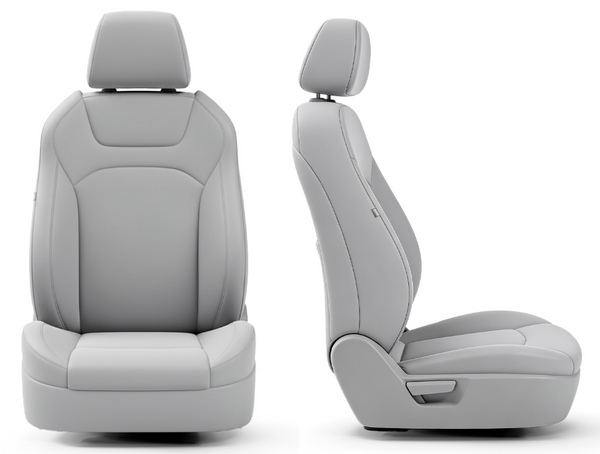

Car Seat
(600 ~ 1500 mm)

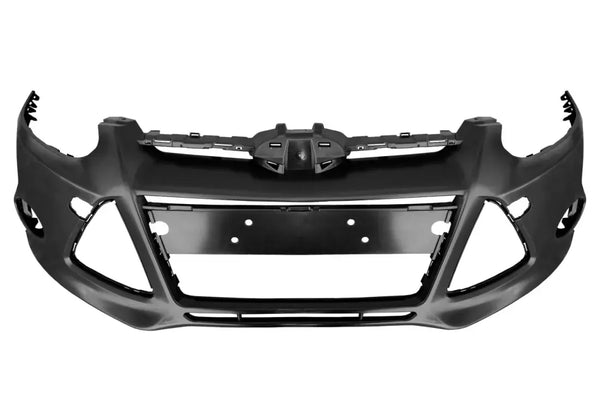

Bumper
(1200 ~ 2500 mm)

Extra Large Structures (> 2500 mm):

Massive components require scanners with an expansive tracking volume to maintain consistency over massive areas.

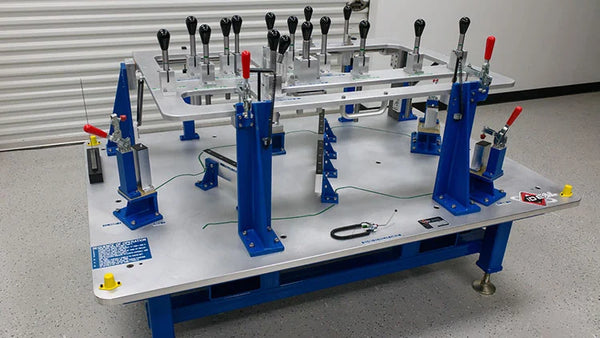

Car Fixture
(2500 ~ 5000 mm)

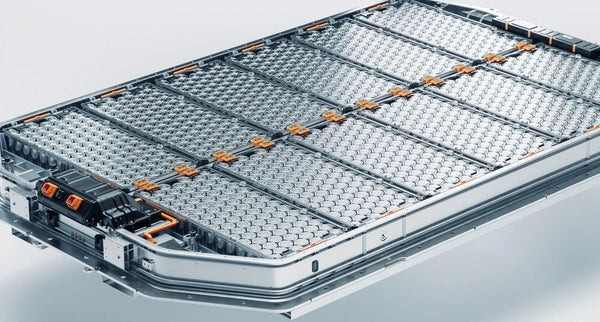

Battery Tray
(2000 ~ 3000 mm)

Aero-Engine Casing
(2500 ~ 4500 mm)

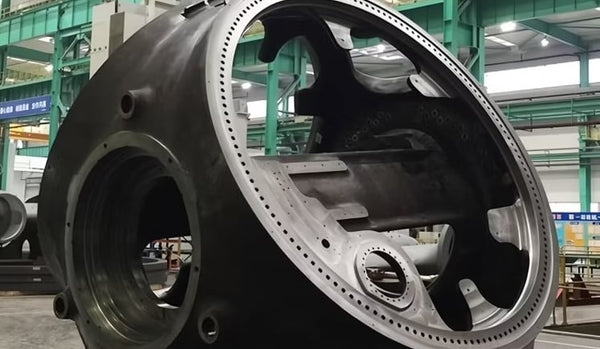

Wind Turbine Hub
(3000 ~ 5000 mm)

Step 2: Define the Accuracy Requirements

Different applications require different tolerance levels. A scanner used for general shape capture does not need the same accuracy as one used for GD&T inspection or precision reverse engineering. Use these three tiers to quickly narrow down the type of metrology 3D scanner that fits your application.

A
0.005 ~ 0.02 mm

Best for functional safety parts, strict GD&T inspection, precision reverse engineering, and small features that require high-resolution cameras and very fine detail capture.

B
0.02 ~ 0.05 mm

A practical range for many industrial inspection, reverse engineering, tooling, fixture verification, and medium-size part workflows where accuracy and portability both matter.

C
0.05 ~ 0.1 mm

Suitable for larger parts, deformation analysis, surface deviation mapping, cosmetic part review, and applications where overall shape and fit are more important than tiny feature detail.

Step 3: Consider Workflow and Part Conditions

Accuracy matters, but it is not the only factor. The best scanner also depends on where the scan happens, whether markers can be used, the surface material, the geometry of the part, and how fast the workflow needs to be.

For shop floors, elevated platforms, field work, or large parts, cables can slow the process down and restrict movement. Wireless or standalone scanners are a better fit when the part cannot easily be moved to a desk or inspection station.
Markers can improve tracking, but applying them takes time. They may also be impractical on finished, delicate, painted, polished, or customer-owned parts. Marker-free scanning is useful when setup speed matters or when the part surface should not be touched.
Dark, shiny, reflective, transparent, or polished surfaces are usually more difficult to capture. Laser-based scanners often perform better on challenging surfaces, while very small parts with fine details may still require structured light and controlled surface preparation.
A scanner can only capture what it can see. Deep holes, narrow gaps, sharp undercuts, internal corners, and hidden surfaces can create blind spots. For difficult geometry, consider scanner size, scan angle, fixturing, or probe-assisted measurement.
If scan time, setup time, and repeatability matter, choose a scanner that fits the full workflow, not just the accuracy spec. Large parts, production environments, and repeated inspections benefit from fast tracking, fewer markers, simple alignment, and efficient scan-to-report software.

Real-World Scenarios: How to Apply this Guide?

To see how this step-by-step approach works in practice, let's look at three typical industrial examples:

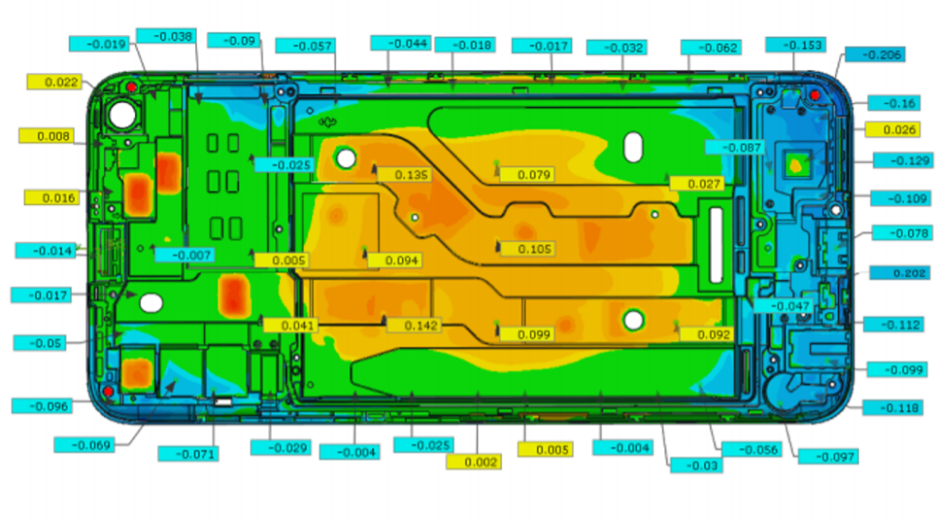

Case 1: Consumer Electronics｜Mobile Phone Shell Inspection

- Extremely small and thin with complex snap-fits and micro installation holes.

- Surfaces often feature highly reflective metals or pure black composite materials.

  • High accuracy is required for dimensional inspection.
  • High resolution is required to capture microscopic geometric features to meet strict assembly tolerances.
  • A non-destructive workflow, depending on whether the delicate surface allows powder spray.

Primary: OptimScan Q Series

  • High-accuracy (0.005 mm) with blue-structured light.
  • MSF function enables better capture of tight angles and narrow gaps.
  • High-resolution cameras (12.3M) are perfect for capturing tiny edges and hole features.

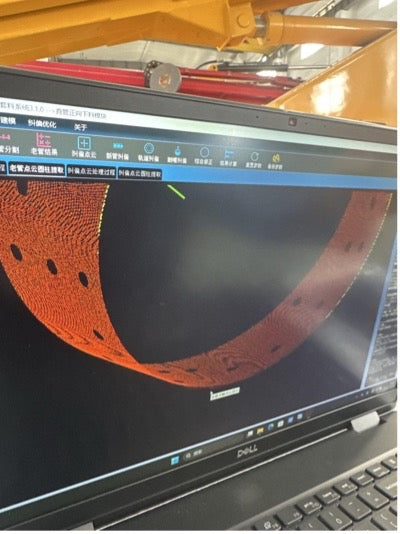

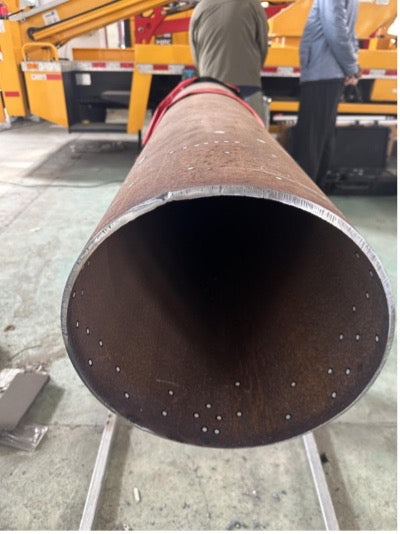

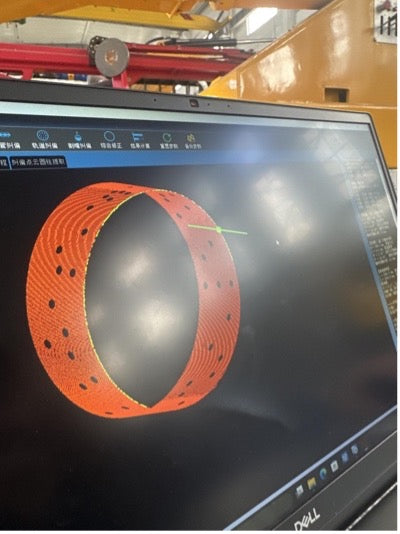

Case 2: Energy｜Pipeline Integrity Assessment

  • - Medium-to-large pipeline structures are typical in oil, gas, and chemical facilities.
  • Located in highly complex, narrow, and obstacle-filled outdoor or industrial field environments.
  • Surface conditions may include corrosion, rust, or coating.
  • Efficient scanning over large areas
  • Flexibility in operation (potentially marker-free or reduced markers, and wireless)
  • Ability to capture surface degradation details (e.g., corrosion depth)

 FreeScan Omni Series

  • 100% Wireless: There are no cords to trip over. You can climb scaffolding and squeeze into tight gaps safely.
  • Capture Accuracy Damage: It quickly captures the depth and shape of pits and dents with repeatable accuracy, giving you an unfiltered look at the real condition of the pipe.
  • On-Site Decisions: Integrated with inspection software. You can get the inspection results on site to make decisions.

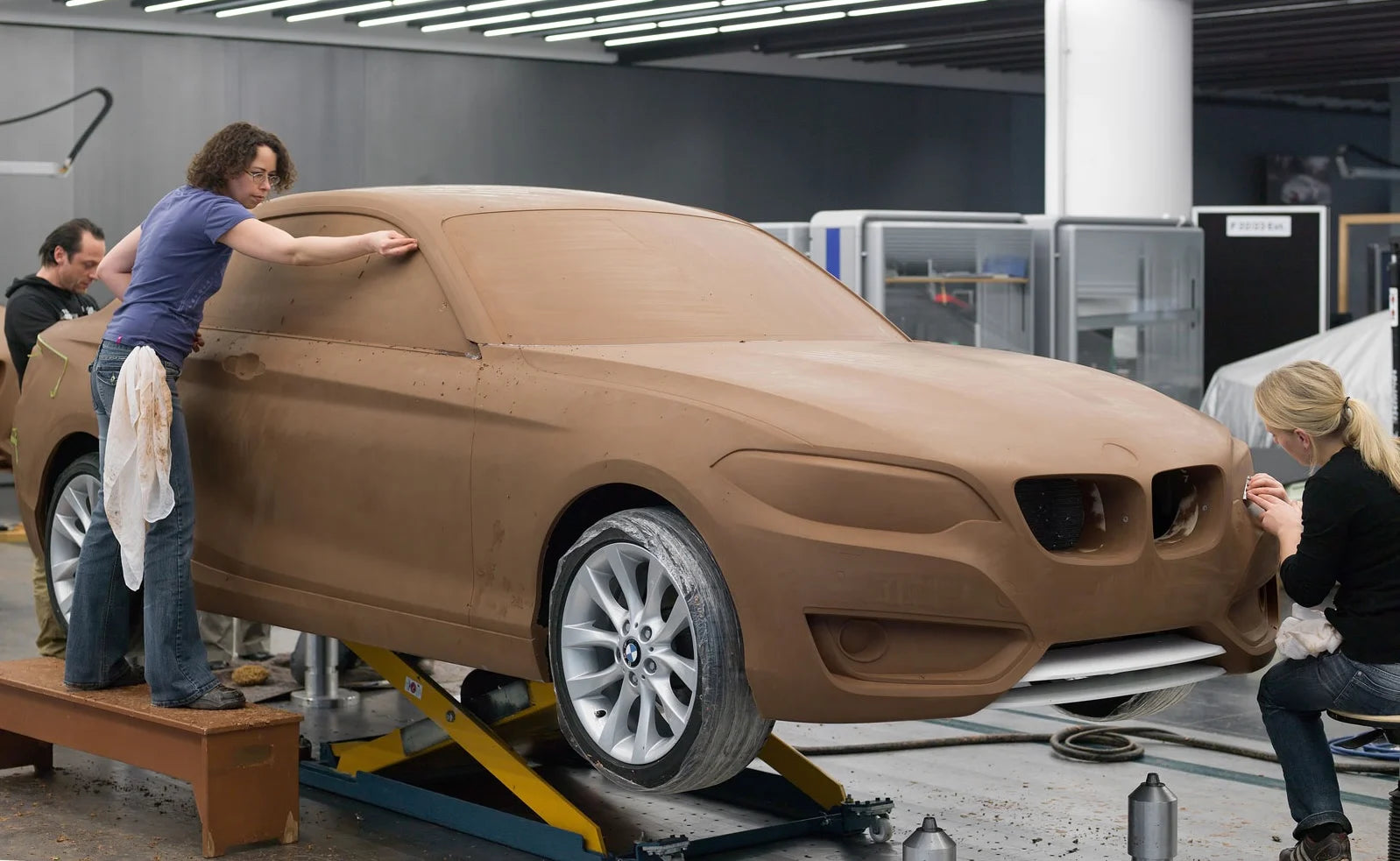

Case 3: Automotive｜Clay Model Reverse Engineering

  • Large-scale (often exceeding 2500mm).
  • Smooth, organic surfaces with subtle curvature transitions.
  • The clay material is extremely fragile.
  • Full-field scanning capability for large objects.
  • Measurement must not have any physical contact nor  be allowed to have adhesive markers on the surface.
  • Exceptionally smooth and continuous surface data is required to support high-quality reverse engineering and styling design.

FreeScan Trak Series

  • Marker-free scanning avoids damaging clay models
  • Wireless scanning
  • Dynamic tracking ensures uniform accuracy and eliminates the need to reposition frequently, that improving efficiency
  • Ideal for full-surface scanning and global accuracy
  • High scanning speed with a large tracking range

Conclusion

Choosing a metrology 3D scanner is less about selecting the “most advanced” system and more about finding the right fit for a specific task. In many cases, the difficulty comes from unclear requirements rather than the technology itself.

A structured approach — starting from object size, then accuracy, and finally special requirements — helps simplify what can otherwise be an overwhelming selection process. It also makes trade-offs more visible, whether between accuracy and efficiency, or flexibility and stability.

Rather than asking “Which scanner is the best?”, it’s more useful to ask:

  • What problem am I trying to solve?
  • What constraints define this application?

With clear answers to these questions, the right metrology 3D scanner choice becomes a logical outcome rather than a trial-and-error process, and ultimately leads to better data quality, higher efficiency, and fewer compromises in real-world use.
